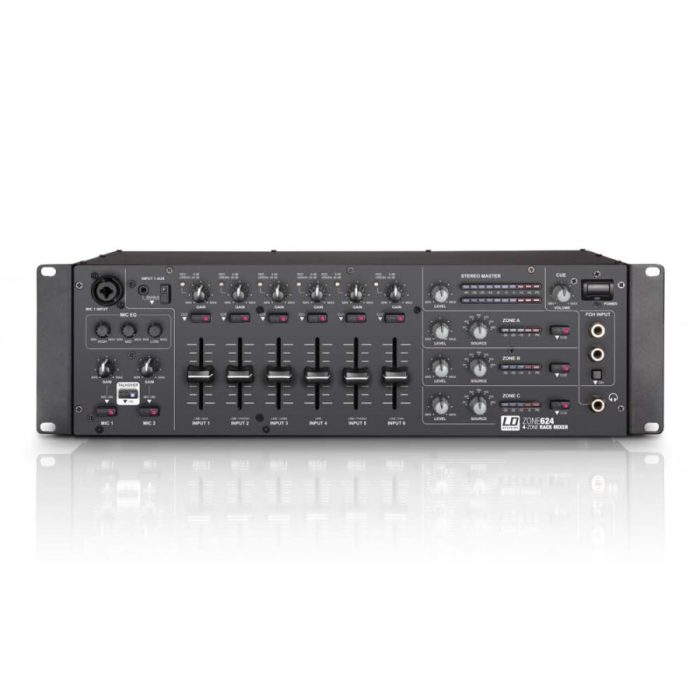

LD Systems ZONE 624 – 19″ 4-Zone Mixer

  • ZONE 624 je zoner s 6 linijskimi in 2 mikrofonskimi kanali, ki jih je mogoče dodeliti stereo ali mono master izhodu. 4 zonski izhodi
  • Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku.
Original price was: €545,00.Current price is: €470,00.

Opis

LD Systems ZONE 624 4-conski mešalnik, LD Systems ZONE 624 – 19″ 4-Zone Mixer

ZONE 624 je popolnoma opremljen conski mešalnik s 6 linijskimi in 2 mikrofonskima kanaloma, ki ju lahko dodelite stereo ali mono glavnemu izhodu.
Kompaktna 3U rack naprava ima tudi vhode za zunanji sistem za obveščanje v sili in daljinsko vodeno izklop zvoka.
Zaradi svoje obsežne povezljivosti je ZONE 624 izjemno prilagodljiva rešitev nadzornega centra za sisteme  v trgovinah, klubih, hotelih, fitnes centrih

LDZONE 624

Garancija na: LD Systems, Gravity, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.
Tel: 02 / 776 10 51

Dodatne Informacije

  • Product type Mixers
  • Type Installations
  • Number of Zones 4 (Master, Zone A-C)
  • Type stereo
  • Installation Height 3 U
  • Total Input Channels 8 (2x Mic, 1x AUX/Line, 2x Phono/Line, 2x Line, 1x FOH
  • Frequency response 20 – 40000
  • Microphone channels 2 (with phantom power 12 V)
  • Microphone Channel Connections 6.3 mm stereo jack (2 x balanced), XLR
  • Microphone channel controls 1 x EQ Hi, 1 x EQ Low, 1 x Talkover, 1x EQ Mid, 2 x gai
  • Microphone Channels Display Elements On-LED
  • Microphone Channels Input Impedance 4 kOhm
  • Microphone Channels Input Sensitivity 4.5 mV
  • Microphone Channels THD 0.08 %
  • Line Channels 6 (Input 1: Aux/Line, Input 2 + 5: Line/Phono, Input 3: U 6: Line/FOH
  • Line input connectors input 2, 4 5: 2 x RCA, Input 1: 2 x RCA + 3.5 mm stereo + USB, input 6:
  • 4 x RCA + 2 x 6.3 mm jack
  • Line Channel Controls 2x Phono/Line, AUX enable, Cue, FOH On, Gain, level
  • Line Channel Display Elements Cue-LED, Signal/0 dB-LED
  • Line Channel Input Impedance (Phono) 50 kOhm, 6 kOhm
  • Line Channels Input Sensitivity (Phono) 25m V, 2.1 V
  • Line Channels THD (Phono) 0.05%, 0.02%
  • input sensitivity AUX/Line 3 V
  • Line outputs 5 (Master – Stereo, 3x Zone – Mono, Rec – Stereo)
  • Output Connectors Master 2 x XLR (balanced), RCA (x2), Terminal block
  • Master Controls EQ Hi, EQ Low, EQ Mid, level, Max. Level, T/O Dampin
  • Master Display Elements 2 x 10 segment level meter
  • Master Output Levels (balanced) 24 dBu, (unbalanced) 17 dBu
  • Zone Output Connections Terminal block, XLR (balanced)
  • Zone Controls 100 Hz High Pass, Cue, EQ Hi, EQ Low, Include Mic, le Source, T/O Damp
  • Zone Display Elements 5-Segment Level Meter
  • Zone Output Levels 24 (balanced/ unbalanced) dBu
  • Output Connections Rec 2 x RCA
  • Headphones ouput 1
  • Headphone Out Port 6.3 mm TRS
  • Headphone Output Controls Cue Volume
  • Headphone Output Voltage (@ 32 Ohm) 2.5 V
  • Additional Inputs 2 (Emergency Input, Output Mute)
  • Connections Additional Inputs Terminal block
  • Additional Input Controls Level Emergency Input
  • Input Sensitivity Emergency Input 5 V
  • Additional Controls power switch
  • Additional Display Elements Power-LED
  • Operating voltage 220 – 250 V AC, 50 Hz
  • Mains connector IEC power connector
  • Power consumption 25 W
  • Fuse T 500 mAL / 250 V
  • Width 485 mm
  • Height 132 mm
  • Depth 210 mm
  • Weight 4,4 kg
  • Accessories (included) Power cord, terminal blocks

Navodilo za uporabo

Navodilo za uporabo. LINK
