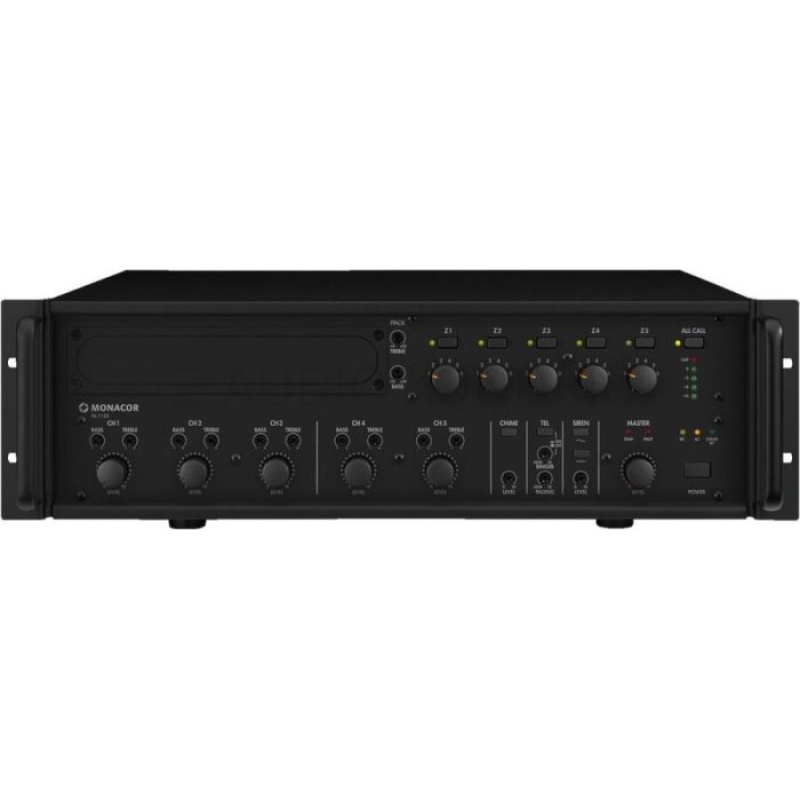

Monacor PA-1240, Ojačevalnik 5-zone 100 V, 240 W RMS

900,00

5 reguliranih izhodov

Opis

  • 5 zones, can be controlled individually
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 17 V phantom power for electret microphones
  • Connection for zone paging microphone PA-1120RC (available at option)
  • Connection for push-to-talk microphone PA-4000PTT or PA-4300PTT
  • Automatic alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets
Channels 5
Zones 5
Power rating 120 W
Peak music power output (PMAX) 170 W
Inputs 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line),

0.3 V/15 kΩ (line),

0.775 V/10 kΩ (preamplifier)

Frequency range 55–16,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 70 dBA (mic),

> 80 dBA (line)

THD < 1%
Power supply ˜ 230 V/50 Hz/340 VA,

DC  24 V/15 A

Mains voltage ˜ 230 V
Mains frequency 50 Hz
Power consumption, operation 340 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 15 A
Admiss. ambient temp. 0–40 °C
Dimensions 482 x 133 x 352 mm, 3 RS
Width 482 mm
Height 133 mm
Depth 352 mm
Rack spaces, RS 3
Weight 13 kg
Connections 3 x combo 6.3 mm/XLR (mic/line inputs),

2 x RCA L/R (line inputs),

2 x RJ45 (push-to-talk mic),

screw terminals (telephone system),

1 x 6.3 mm jack (preamplifier),

1 x 6.3 mm jack (ext. amplifier),

1 x RCA L/R (record),
