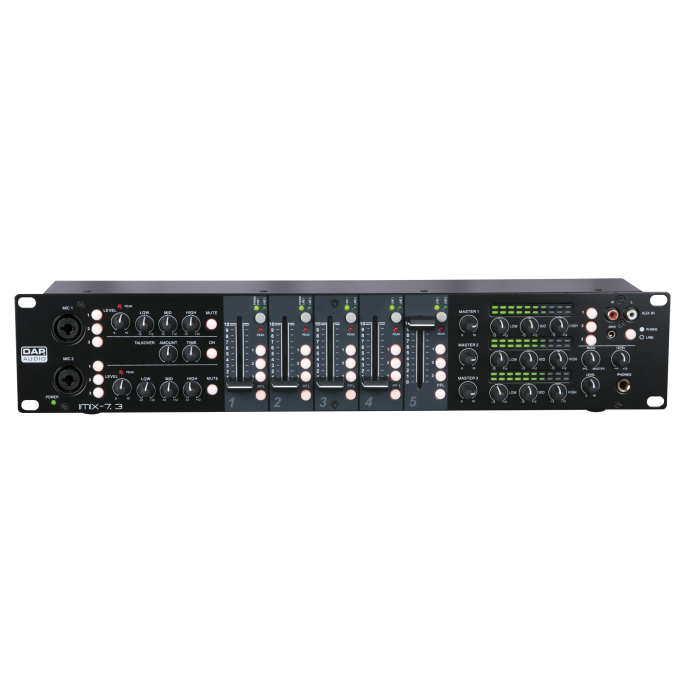

Instalacijska mešalna miza DAP IMIX-7.3 s kontrolo con.
Ima popolnoma enako funkcionalnost kot IMIX-7.1, vendar se lahko vsak vhod usmeri na želejni izhod. Ta funkcija omogoča upravljanje 3 con z različno glasbo, glasnostjo in nastavitvami ekvalizerja.
Instalacijska mešalna miza 19″/2U
Kvalitena mešalna miza profesionalno uporabo
2x mikrofonski vhod z nadzorom glasnosti in EQ
5x linijski vhod z individualno glasnostjo (faderji) in nadzorom ojačanja
3 glavni izhodi z nastavitvami glasnosti in EQ ( bass, mid, treble ) vsak izhod je reguliran in lahko pošijate drugačno glasbo in glasnost
Tehnični podatki
Inputs
- Mono Inputs 2
- Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
- Stereo Inputs 10
- Stereo Input Connector RCA
- Phono Audio Inputs 2
- Phono Audio Input Connector RCA
- Auxiliary Inputs 1
- Auxiliary Input Connector RCA, TRS balanced 3.5 mm
Outputs
- Main Outputs 3
- Main Output Connector 3-pin XLR, RCA
- Headphone Output 1
- Headphone Output Connector TS balanced 6.3 mm
- Record Output 1
- Record Output Connector RCA
Audio Specifications
- THD Level < 0.05 %
- Signal-to-noise Ratio > 100 dB
- Frequency Response Minimum 20 Hz
- Frequency Response Maximum 20000 Hz
Sound Editing
- Microphone Input Equalizer Gain Range 12 dB
- Parametric Microphone Equalizer 3 Bands
- Microphone Input Fixed Frequencies 80, 1.000, 12.000 Hz
- Parametric Main Equalizer 3 Bands
- Main Output Equalizer Gain Range 12 dB
- Main Output Fixed Frequencies 80, 1.000, 12.000 Hz
Product Properties
- LED Indicators Channel select, Clip, Mute, Output level, Signal
- Electrical Specifications and Connections
- Power Supply 220-240 V AC 50 Hz (Power adapter)
- Output voltage 18 V AC
- Power Consumption 19.1 W
- Power Connector In Low Voltage AC plug
Mechanical Specifications
- Fader Length 60 mm
- Height (mm) 88 mm
- Width (mm) 95 mm
- Length (mm) 481 mm
- Flightcase Size 19″
- Rack Units 2 U
- Housing Metal
- Colour Black
- Weight 2.8 kg
- IP Rating IP20 (indoor use only)
Included Items
- Included Accessories Adapter
