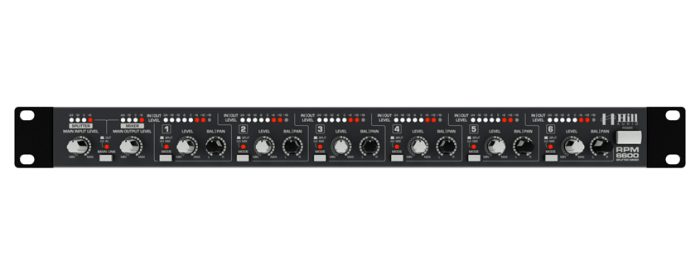

Hill Audio, RPM-6600 Kanalna mešalna miza / spliter

RPM-6600 Kanalna mešalna miza / spliter

Signal/Noise ＞95dBu (unweighted 22Hz-22KHz)
Crosstalk Damping ＞65dB
THD ＜01%
Frequency response 20Hz – 20 kHz
AC supply 115/230V~ 50Hz-60Hz (20W)
Dimension 483.0×44.5×162.0 mm WxHxD
Weight 2.36 kg

6 mono input/output sections with level control, pan/balance control, 8-LED level meter and split/mix function switch
Balanced XLR input/output connectors for sections 1/2/3/4
Balanced TRS input/output connectors for sections 5/6
Each section can operate independently in mixer or splitter mode
Inputs work in mix configuration also as buffered level converters between -10 dBV and +4 dBu
1 balanced XLR stereo input with level control and 4-LED level meter
1 balanced XLR stereo output with level control and 4-LED level meter
All switches with LED status indicator
Internal wide-voltage swing linear power supply for excellent audio dynamics
Full metal case with detachable rack ears
AC mains voltage selector switch 115/230V
CE/ROHS compliant

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Dodatne Informacije

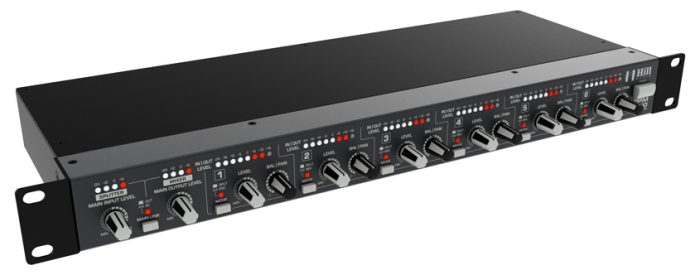

The RPM-6600 is a versatile combination of a 6-in-2 mixer and a 2-in-6 splitter, while it also provides a handy way of adjusting levels or impedances by acting as a buffered level translator from -10 dBV to +4 dBu or vice versa. It offers 6 identical input/output sections with level control, panpot/balance control and 8-LED level meter each.

Every section can be configured with a switch to either work as an input for a mix available at the master output, or as a splitter output from a master signal fed to the master input. In a mixer application, the main input section can be used as two additional inputs which makes the unit effectively sporting up to 8 inputs in mixer configuration.

The versatility of this unit spans applications from sub-mixing of keyboards in a stage sound system to zone signal splitting in commercial sound systems. The broad range of applications also makes the RPM-6600 a useful problem solver in the vaults of any rental company.

EMC/Safety Compliance:

EU safety: EN 60065:2001 +A1
EU EMC: EN55103-1:1997, EN55103-2: 1997
US safety: UL60065
US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).

This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
