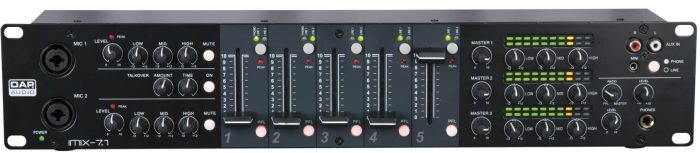

DAP IMIX-7.1 mešalna miza 3 zone

Tehnični podatki

Inputs

• Mono Inputs 2
• Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
• Stereo Inputs 10
• Stereo Input Connector RCA
• Phono Audio Inputs 2
• Phono Audio Input Connector RCA
• Auxiliary Inputs 1
• Auxiliary Input Connector RCA, TRS balanced 3.5 mm

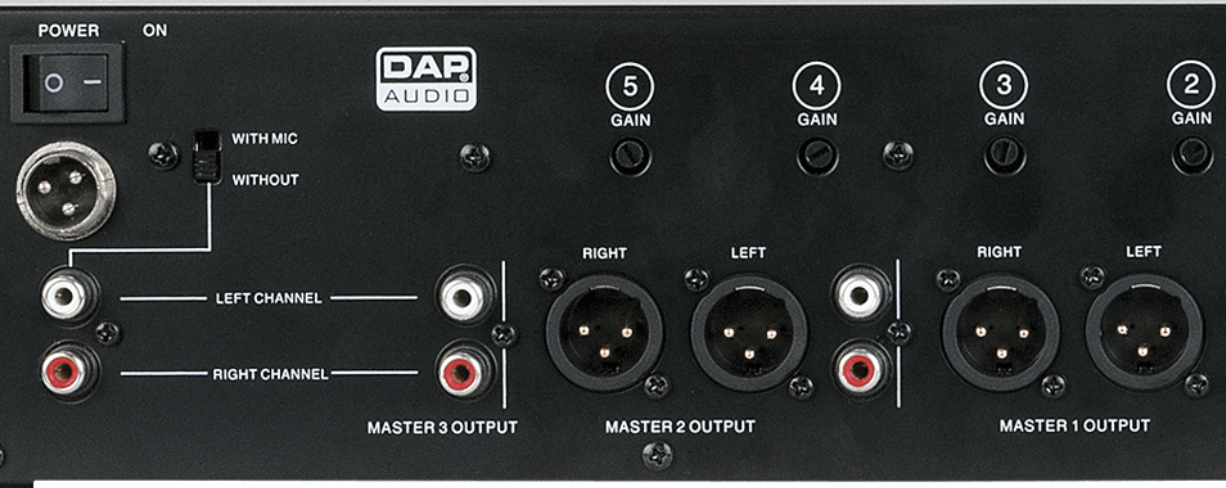

Outputs

• Main Outputs 3
• Main Output Connector 3-pin XLR, RCA
• Headphone Output 1
• Headphone Output Connector TS balanced 6.3 mm
• Record Output 1
• Record Output Connector RCA

Audio Specifications

• THD Level < 0.05 %
• Signal-to-noise Ratio > 100 dB
• Frequency Response Minimum 20 Hz
• Frequency Response Maximum 20000 Hz

Sound Editing

• Microphone Input Equalizer Gain Range 12 dB
• Parametric Microphone Equalizer 3 Bands
• Microphone Input Fixed Frequencies 80, 1.000, 12.000 Hz
• Parametric Main Equalizer 3 Bands
• Main Output Equalizer Gain Range 12 dB
• Main Output Fixed Frequencies 80, 1.000, 12.000 Hz

Product Properties

• LED Indicators Channel select, Clip, Output level, Signal

Electrical Specifications and Connections

• Power Supply 220-240 V AC 50 Hz (Power adapter)
• Output voltage 18 V AC
• Power Consumption 16.5 W
• Power Connector In Low Voltage AC plug

Mechanical Specifications

• Fader Length 60 mm
• Height (mm) 88 mm
• Width (mm) 95 mm
• Length (mm) 481 mm
• Flightcase Size 19″
• Rack Units 2 U
• Housing Metal
• Colour Black
• Weight 2.8 kg
• IP Rating IP20 (indoor use only)

Included Items

• Included Accessories Adapter
