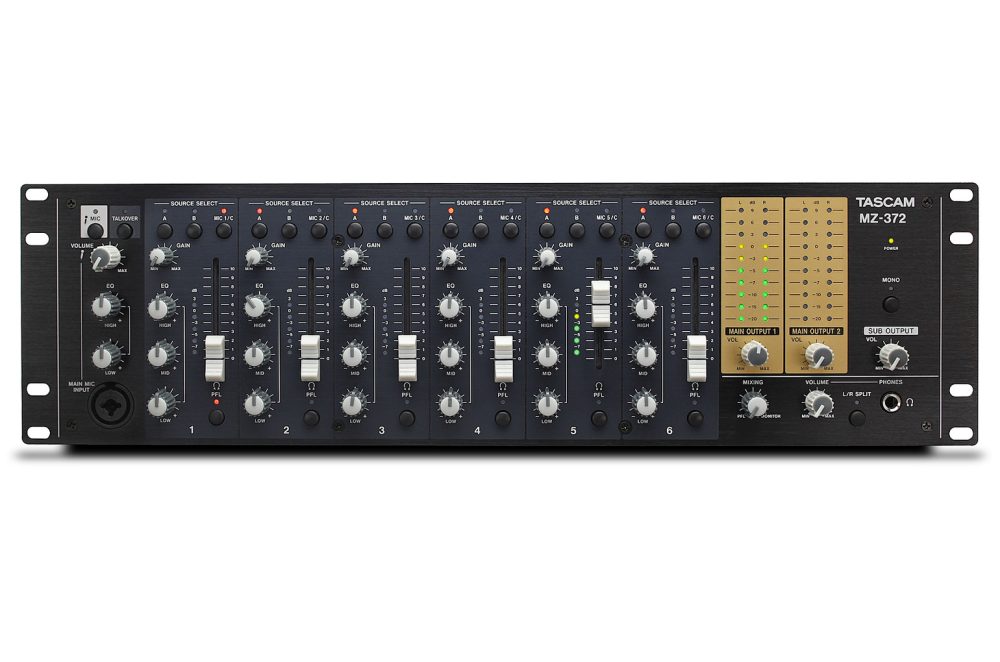

Tascam MZ-372, Mešalna miza, 7 vhodnih kanalov, 2 zone

Vgradna instalacijska mešalna miza
6 mikrofon/linijskih vhodov: XLR/cinch – 4x cinch na kanal – 2x L/R, 3 kanali preklopljivi na phono
4 linijski izhodi: XLR/cinch (2x L/R) simetrični/nesimetrični
2 monitor izhoda: cinch (L/R)
2 sub izhoda: cinch (L/R)
Sprednji mikrofon vhod: XLR
3-pasovna tonska kontrole
Faderji in LED indikatorji nivoja za vsak kanal
Funkcija preglasitve (talk-over)
Stereo izhod za slušalke 6,3 mm jack
Ta mešalnik je idealen za profesionalne in polprofesionalne zvočne inštalacije, kot so studiji, konferenčne sobe, restavracije, itd.Številni vhodi za različne predvajalnike
Večconski izhod
Enostavno upravljanje
Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
Separate stereo booth, recording, and headphone outputs each with independent control
One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
Compact 3U rack mount design

Dodatne Informacije

Specifikacije

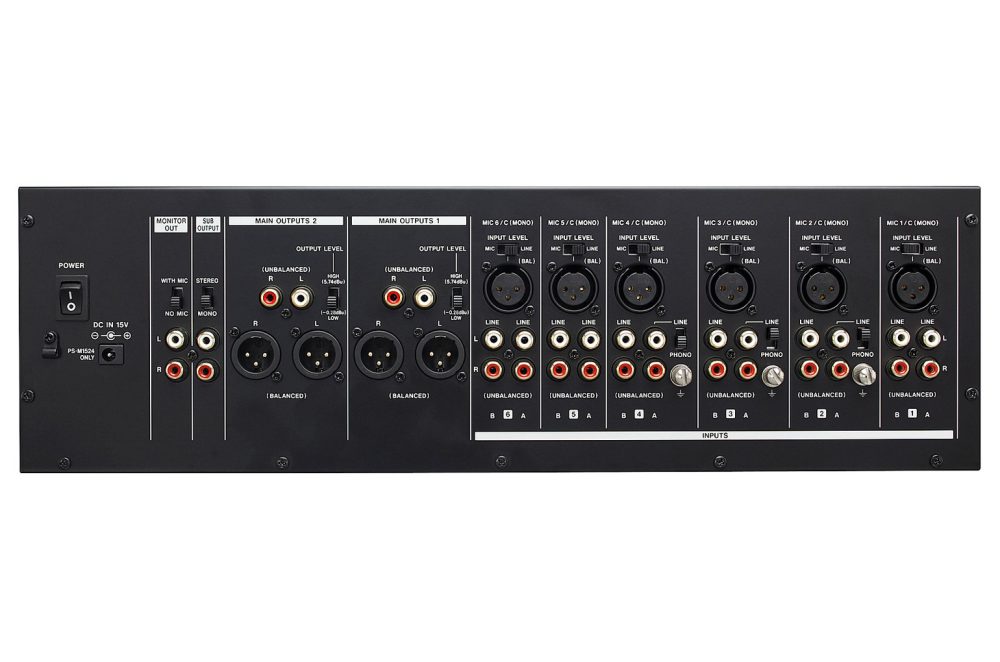

6 Microphone / Line inputs: XLR/RCA – 4x RCA per channel – 2x L/R, 3 channels switchable to phono
4 Line outputs: XLR / RCA (2x L/R) balanced/unbalanced
2 Monitor outputs: RCA (L/R)
2 Sub-outputs: RCA (L/R)
Front microphone input XLR
Level control
3 Band tone control
Fader and LED level display on each channel
Talkover function
Stereo headphone output 6.3 mm jack
Build: 19″ / 3 U
Dimensions (W x H x D): 483 x 132 x 93 mm
Weight: 3.2 kg
