LD Systems VIBZ 10 C – 10 kanalna mešalna miza s kompresorji

LD Systems VIBZ 10 C je vsestranska kompaktna mešalna miza s štirimi uravnoteženimi mikrofonskimi vhodi,  z visoko kakovostnim predojačevalnikom in integriranim kompresorjem. Namenjena za široki spekter uporabe.

Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku.

Izvirna cena je bila: €242,00.Trenutna cena je: €196,00.

Na zalogi

Koda izdelka: LDVIBZ10C Kategorija: Oznake: , , , ,

Opis

LD Systems VIBZ 10 C – 10 kanalna mešalna miza s kompresorji

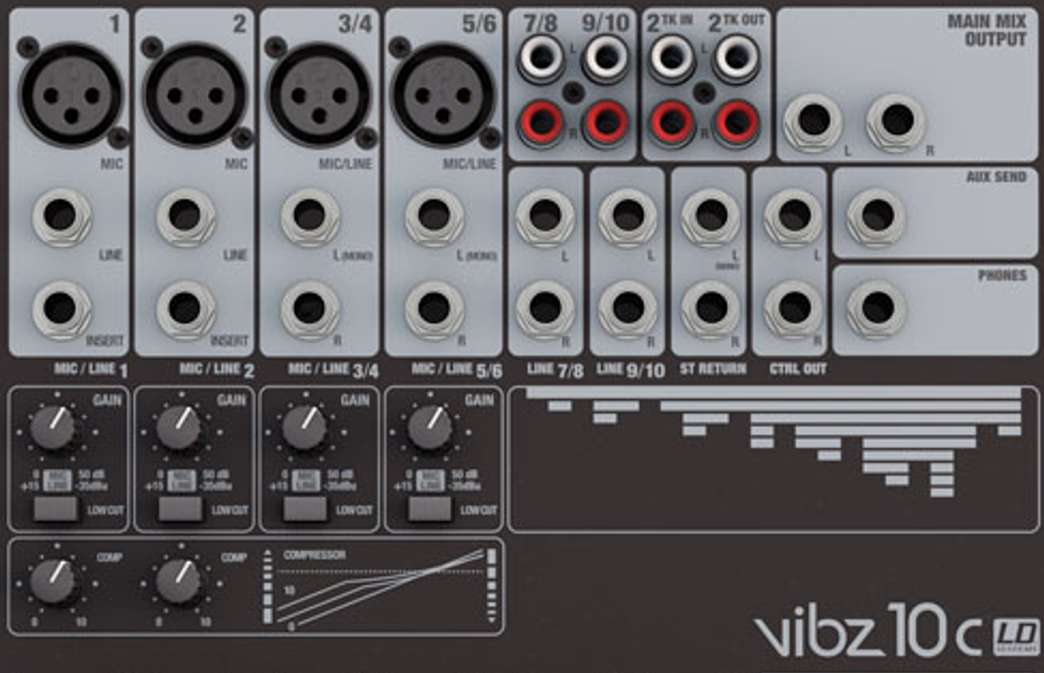

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.

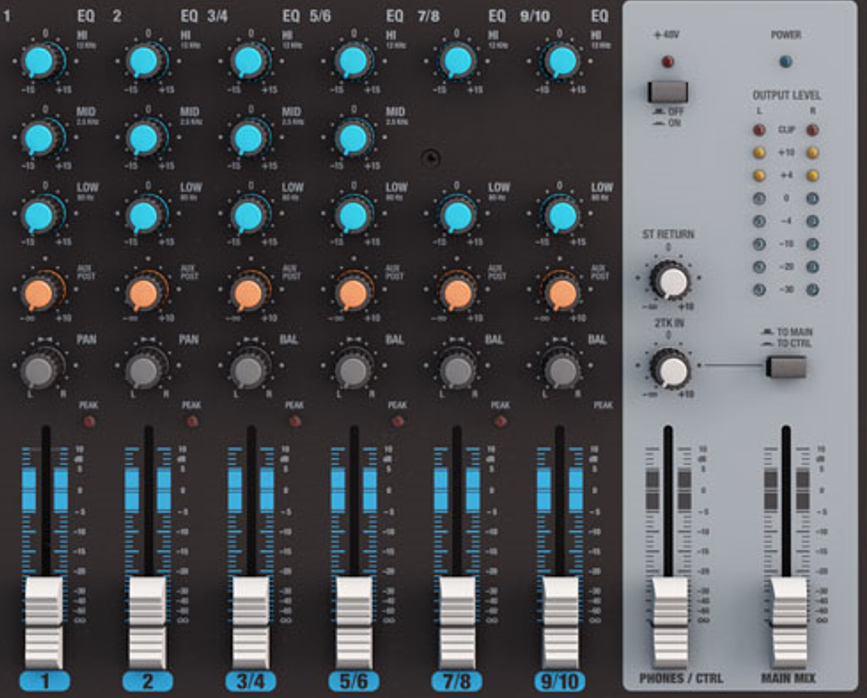

For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.

Garancija na: LD Systems, Gravity, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.
Tel: 02 / 776 10 51

Dodatne Informacije

Dodatne informacije o izdelku

Product number: LDVIBZ10C
Product type: Mixer
Type: Live
Channels: 10
Mono Channels:
Mono Mic and Line Input Channels: 4
Mono Mic input connectors: 6.3 mm TRS, XLR
Channel Inserts: 2
Channel Insert Connectors: 6.3 mm TRS
Mono Mic Input Type: electronically balanced
Mono Mic Input Frequency Range: 10 – 45000Hz
Amplification Range mono Mic Input: 0 – 50dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4kOhm(s)
Mono Mic Input S/N Ratio: 113dB
Mono Line Input Type: electronically balanced
Mono Line Input Frequency Range: 10 – 45000Hz
Amplification Range mono Line Input: 0 – 50dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21kOhm(s)
Mono Line Input S/N Ratio: 116dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid: +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: Gain, Compressor, pan, Low Cut (75 Hz), AUX (DFX) Post, Channel Volume, 3-band EQ (High, Mid, Low)
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 4
Stereo Line Input Connectors: 6.3 mm TRS
Stereo Line Input Type: unbalanced, electronically balanced
Stereo Line Input Frequency Range: 10 – 45000Hz
Amplification Range stereo Line Input: 0 – 50dB
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7kOhm(s)
Stereo Line Input S/N Ratio: 116dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: Low Cut, 3-band EQ (High, Mid, Low), Channel Volume, 2-band EQ (High,Low), AUX Post, Balance, Gain
Main Section:
AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape In Channel: 1 x stereo
Stereo Tape In Connenctors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120Ohm(s)
Max. Unbalanced Stereo Main Out Level: 20dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm TRS
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: no
Main section controls: 2-track Assignment (Main, Contr. Room), Master Volume, Phones / Control Room Volume, Phantom Power, 2-track In Volume, Stereo Return Volume
Indicators: Power, Phantom Power
Operating voltage: 18 V AC – 1 A, External PSU
Width: 265mm
Height: 78mm
Depth: 352mm
Weight: 2.3kg
