Cameo OPUS H5

Cameo OPUS H5, Beam Spot Wash Hybrid Moving Head  18.000 lm / 407.000 luksov na 10 m, 470 W OSRAM SIRIUS HRI

Šifra izdelka: CLOH5


Potrebujete pomoč pri izbiri?

Na voljo smo vam po e-mailu info@kondric.si.

Nazadnje ogledani izdelki

Cameo OPUS H5

Versatile moving heads are especially in demand among light show designers, in particular when it comes to mobile stage equipment. After all – the more functions a device can provide, the more exciting the stage experience is for the audience. This is precisely why the Hybrid Moving Head is so much in demand as a combined solution for moving-head beam, spot + wash applications.

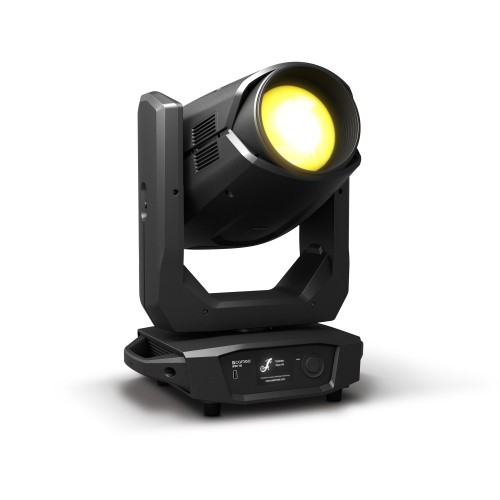

OPUS® H5

Cameo’s professional lighting solutions and innovative products like the OPUS H5 Hybrid Moving Head are tailor-made for stage design and rental companies. This moving head is a hybrid, so it covers the entire range of disciplines from beam and spot through to wash. The extremely flexible discharge moving light with a luminous flux of 18,000 lm and a light intensity of 407,000 lux at 10 metres offers an extremely effective combination of high output and a fascinating variety of effects.

  • Extremely flexible beam spot wash hybrid moving head with 18,000 lm / 407,000 lux at 10 mOPUS® H5 1 300x300
  • CMY colour blending and additional colour wheel with 13 dichroic filters
  • High-quality optics with 130-mm front lens and especially wide zoom range of 2° to 42°
  • A total of five prisms at two levels for varied mid-air effects
  • High CRI filter (>85) for enhanced colour reproduction and adaptation to TV and film cameras
  • Nine interchangeable, rotating gobos and 13 static gobos
  • Smooth dimming with 16-bit resolution and 4 selectable curves
  • Battery-operated touchscreen display with push encoder for quick and simple set-up
  • Flexible control via built-in W-DMX™ transreceiver, DMX, RDM, Art-Net or sACN
  • Osram lamp Sirius HRI 470 W, two Omega brackets and power cable included

Povezava na uradno spletno stran izdelka. LINK

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Ostali Adam Hall izdelki LINK

Dodatne Informacije

Product type Discharge Moving Lights
Type Moving Head
Color temperature Cold White, 7500 K
Colour mixing function CMY
Colour rendering index (CRI) High CRI Filter > 85
Number of colours Colour wheel 13 + open and continuous positioning
Type Lamp 470 W OSRAM SIRIUS HRI
Dispersion 2 – 42 °
Number of gobos -22 + open (13 fixed + 9 rotating)
DMX input XLR 3-pin male, XLR 5-pin male
DMX output XLR 3-pin female, XLR 5-pin female
DMX mode 27-channel, 36-channel
DMX Functions Animation Wheel, Colour wheel, Colour wheel fine, Colour wheel rotating, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost 1/2, Gobo 1 Rotation, Gobo 1 Rotation Fine, Gobo 1 Shake, Gobo 2 Shake, Gobo Wheel 1, Gobo Wheel 2, High CRI Filter, High CRI Filter Fine, Magenta, Magenta Fine, Pan/Tilt, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, Prism 1/2, Prism Rotation, Rotation Gobo Wheel, strobe, System settings, Yellow, Yellow Fine, Zoom, Zoom Fine
Standalone modes Master / Slave mode, Static
System settings Auto Focus, Auto Lock, Blackout functions, Colour/ Gobo wheel, Display Illumination, Display Reverse, fan, Feedback, LED PWM Frequency, Motor Speed, Movement Blackout, On / Off, Pan Reverse, reset, Scroll / Snap, Signal Fail, Test, Tilt Reverse, User default values
Control ArtNet, DMX512, RDM enabled, sACN, W-DMX™ (Receiver)
Controls Back Button, Encoder wheel, Touch screen
Indicators Backlit colour LCD display, Battery supply for mains-independent system settings
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption 700 W
Fuse T8AL / 250 V
Power connector Neutrik powerCON IN / OUT
Housing material ABS plastic, Metal
Cabinet colour Black
Cooling temperature-controlled fan
Illuminance 407000 lx @ 10 m @ 2°
Luminous flux 16000 lm
Maximum Ambient Temperature 0 – 40 °C
Relative Humidity < 85 %, not condensing
Width 436 mm
Height 662 mm
Depth 312 mm
Accessories (included) 1 m Power cable with Neutrik powerCON TRUE1 plug, 2 x omega mounting
Weight 27 kg

Video Produkta

Datoteke izdelka

Katalog  izdelka. LINK

Tehnični podatki. PDF
