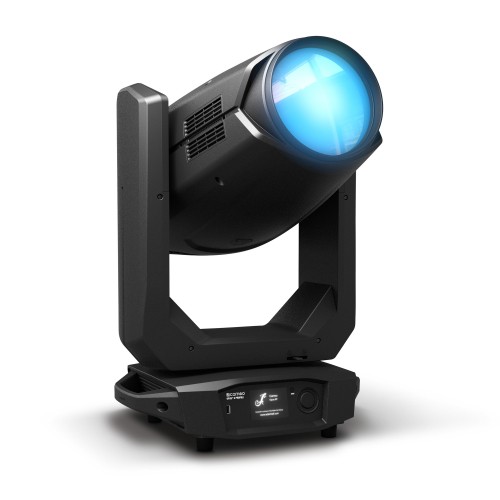

Cameo OPUS X PROFILE

OPUS X PROFILE High-Power Profile Moving Head, 170-mm sprednja leča in izjemno širok razpon zooma od 6° do 48°

Šifra izdelka: CLOXP


Potrebujete pomoč pri izbiri?

Na voljo smo vam po e-mailu info@kondric.si.

Cameo OPUS X PROFILE

Drawing only 750 W, achieve the same lighting performance that conventional devices require 1000 W for! This is possible thanks to the extremely efficient light engine of this incredibly modern high- power moving head from Cameo: the OPUS® X Profile.

The light engine efficiency of the Cameo OPUS X Profile Moving Head (item no.: CLOXP) can be seen throughout its design philosophy. This makes it possible to achieve 33,000 lm at a lighting power of 72,000 lux @ 5 metres. The complete setup with effects for use as spot and profile in this efficient and modern moving head is further augmented with the additional framing module. The high-quality optic with 170 mm front lens and a remarkably wide zoom range of 6° to 48° offers almost inexhaustible design possibilities. Be inspired by the combination of CMY colour blending and an additional colour wheel with 6 dichroic filters.

  • High-power profile moving head with 33,000 lm / 72,000 lux (@ 5 m)Cameo OPUS X PROFILE
  • CMY colour blending and additional colour wheel with 6 dichroic filters
  • High-quality optics with 170-mm front lens and extremely wide zoom range of 6° to 48°
  • Angle and position of each diaphragm slider adjustable to complete closure
  • Rotatable animation wheel, rotating gobo wheel and static gobo wheel
  • Rotatable and indexable circular fivefold prism and linear sixfold prism
  • Variable frost filter for wash light effects and continuously adjustable iris
  • Smooth dimming with 16-bit resolution and 4 selectable curves
  • Battery-powered touchscreen display with rotary encoder
  • Flexible control via built-in W-DMX™ transceiver, DMX, RDM, Art-Net or sACN

Povezava na uradno spletno stran izdelka. LINK

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Ostali Adam Hall izdelki LINK

Dodatne Informacije

General



Product type LED Moving Lights
Type Moving Head
Color temperature Cold White, 6100 K
LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
Colour mixing function CMY, CTO
Color wheel Number of colors 6 + open and continuous positioning
LED type 750 W LED, white
Type Lamp 750 W LED
Dispersion 6 – 48 °
Effects 2 x Frost, 2 x Prism, Rotatable shutters
Number of gobos 13 + open (7 fixed + 6 rotating)
DMX input XLR 3-pin male, XLR 5-pin male
DMX output XLR 3-pin female, XLR 5-pin female
DMX mode 37-channel, 55-channel
DMX Functions Animation Wheel, Colour wheel, Colour wheel rotating, CTO, CTO Fine, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost 1/2, Gobo 1 Rotation, Gobo 1 Rotation Fine, Gobo 1 Shake, Gobo 2 Shake, Gobo Wheel 1, Gobo wheel 1 rotation, Gobo Wheel 2, Gobo wheel 2 rotation, Iris, LED Segment Dimmer, Magenta, Magenta Fine, Multifunctional Strobe, Pan/Tilt, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, Prism 1/2, Prism Rotation, Shutter, Shutterblade Rotation, Sparkle FX, System settings, Yellow, Yellow Fine, Zoom, Zoom Fine
Standalone modes Master / Slave mode, Static
System settings Auto Focus, Auto Lock, Blackout functions, Colour/ Gobo wheel, Dimmer Curve, Display Illumination, Display Reverse, fan, Feedback, LED PWM Frequency, Motor Speed, Movement Blackout, pan, Pan Reverse, reset, Scroll / Snap, Signal Fail, Test, Tilt Reverse, User default values
Control Art-Net, DMX512, RDM enabled, sACN, W-DMX™ (Receiver)
Controls Back Button, Encoder wheel, Touch screen
Indicators Backlit colour LCD display, Battery supply for mains-independent system settings
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption 1200 W
Fuse T15AL / 250 V
Power connector Neutrik powerCON IN / OUT, Neutrik powerCON TRUE1 I/O
Housing material ABS, Metal
Cabinet colour Black
Cooling Silent, temperature controlled fan
Illuminance 72650 lx @ 5 m @ 6°
Luminous flux 33000 lm
Maximum Ambient Temperature 0 – 40 °C
Width 436 mm
Height 800 mm
Depth 312 mm
Relative Humidity < 80 %, not condensing, < 85 %, not condensing
Weight 42 kg
Accessories (included) 1 m Power cable with Neutrik powerCON TRUE1 plug, 2 x omega mounting

Video Produkta

Datoteke izdelka

Navodilo za uporabo. LINK

Katalog  izdelka. LINK
