Cameo AZOR B1, 100 W LED

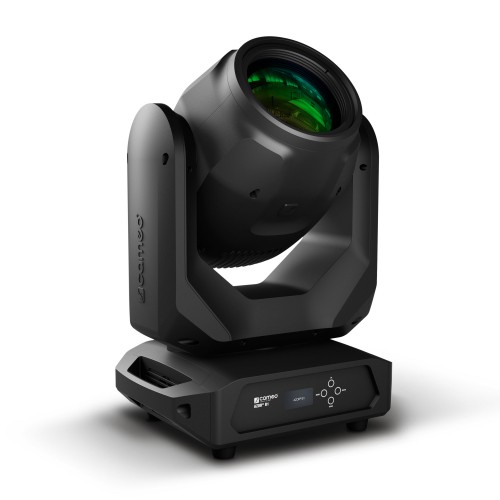

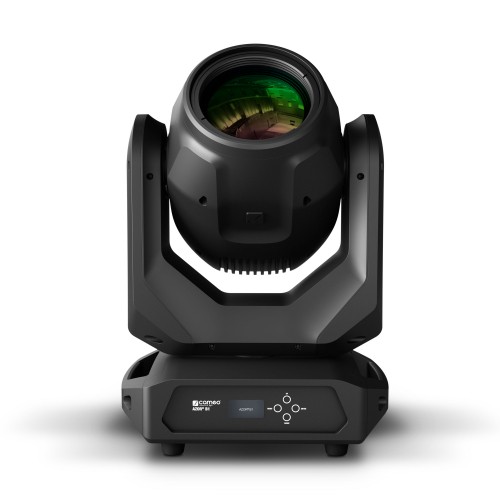

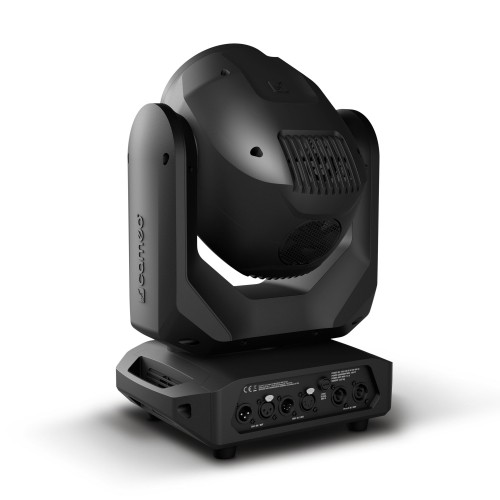

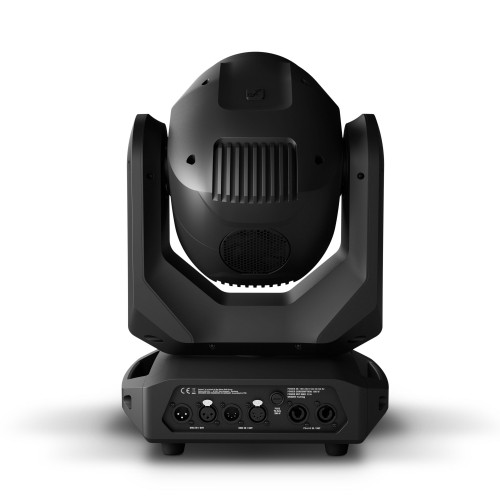

Cameo AZOR B1 LED Beam Moving Head

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable macros for standalone and master-slave operation

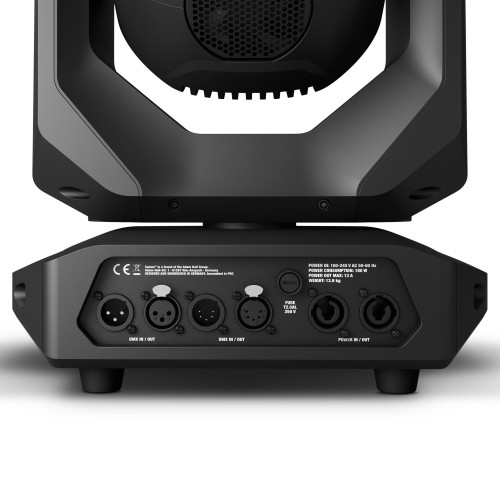

3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
Two Omega brackets and power cable included

Povezava na uradno spletno stran izdelka. LINK

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Ostali Adam Hall izdelki LINK

Dodatne Informacije

General

Product type	LED Moving Lights
Type	Moving Head
Colour spectrum	Cold white
Number of LEDs	1
Color temperature	9400 K
LED type	100 W
Refresh rate	Adjustable up to 3,600 Hz
Dispersion	2 °
DMX input	XLR 3-pin male, XLR 5-pin male
DMX output	XLR 3-pin female, XLR 5-pin female
DMX mode	13-channel, 16-channel
DMX Functions	Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Gobo wheel, PAN, PAN FINE, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Prism Selection, Set Dimmer Curve, strobe, TILT, TILT FINE
PAN movement	540
TILT movement	270
High Speed Strobe	> 20 Hz
Standalone modes	4 x User Macros, Master / Slave mode, Settings
Controls	Enter, Mode, Value Down, Value Up

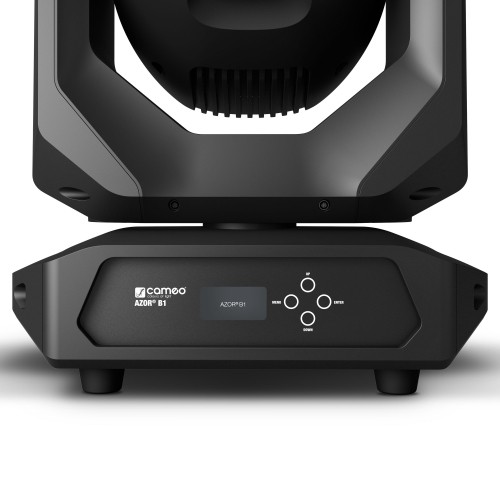

Indicators	OLED Display
Operating voltage	100 V AC – 240 V AC, 50 – 60 Hz
Power consumption	180 W
Power connector	Blue & White Power Twist I/O
Housing material	ABS plastic, Metal
Cabinet colour	Black
Protection class IP	IP20
Cooling	temperature-controlled fan
Illuminance	180,000 lx @ 3 m
Luminous flux	1800 lm
Maximum Ambient Temperature	-15 – 45 °C
Width	306 mm
Height	437 mm
Depth	220 mm
Weight	13,9 kg
Features	2 x Omega Clamp, Power supply
