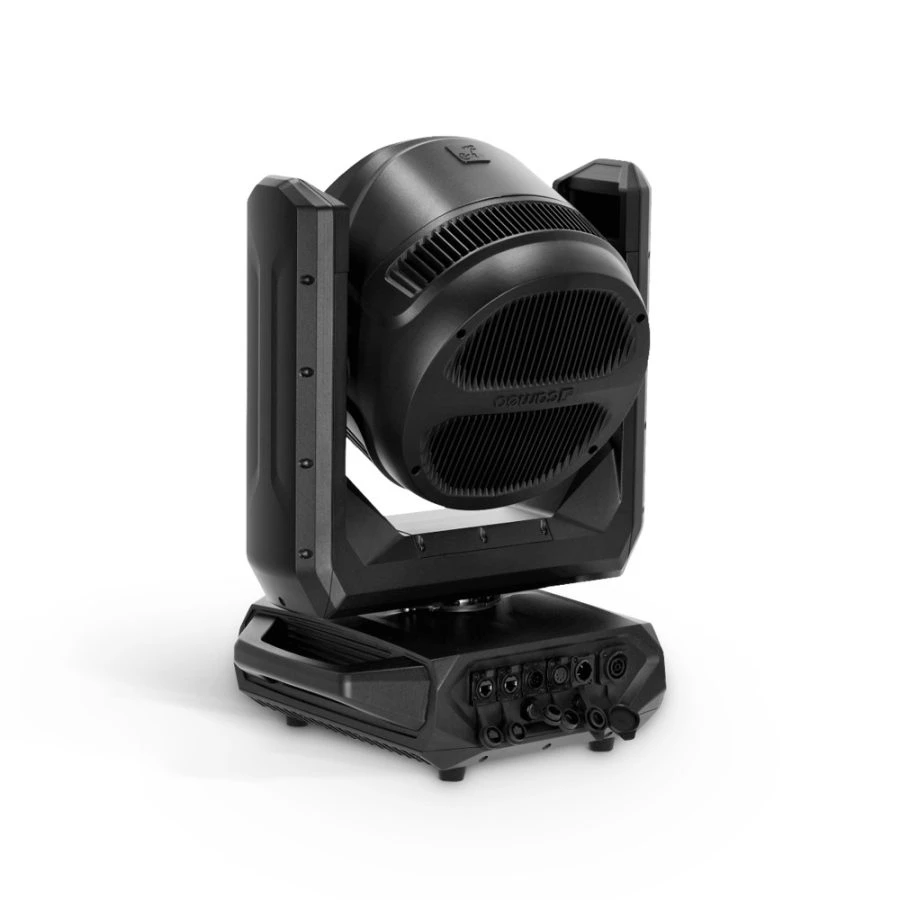

Cameo EVOS® W7 IP IP65 LED Wash-Moving Head

Cameo EVOS® W7 IP LED luč za učinke in osvetlitev na prostem

IP65 LED Wash-Moving Head

Opis

Cameo EVOS® W7 IP IP65 LED Wash-Moving Head luč za učinke in osvetlitev na prostem

Wash-Beam Moving Head with IP65 classification
19 x 40 W RGBWW LEDs
Precise colour reproduction with CRI > Ra 90
Individual control of all LEDs (Single Pixel Control)
Zoom range of 4.5° to 34° (beam) / 7° to 55° (field)
Adjustable refresh rate of between 800 Hz and 25 kHz
Control via DMX, RDM Art-Net3, sACN or KlingNet
4 touch sensitive buttons

The warm white LED allows you to blend attractive warm pastel shades, and also delivers a wonderful warm white light for lighting people/objects/etc. The Cameo EVOS® W7 IP Wash Beam Moving Head with Single Pixel Control is devices, the Cameo EVOS® W7 offers a particularly high colour reproduction index. The warm white chip can be used to light people or objects – either with naturally warm white light or as mood lighting in pastel shades. This versatility results from the unique combination of a full-colour LED with a WW chip, which generates extremely clearly defined white tones with a CRI above Ra 90.
Providing individual control of all LEDs by means of Single Pixel Control, the Cameo EVOS® W7 IP Wash Beam Moving Head produces breath-taking pixel effects. The powerful luminous flux floods any event with warm, bright light in clearly defined colours and delivers generous coverage up to 540° horizontally (pan) and 270° vertically (tilt). Its versatility is further enhanced by an impressive zoom range of 4.5° to 55°, which facilitates powerful beam and large-area wash effects.
Live broadcast images of your event are guaranteed to be flicker-free because the Wash Beam Moving Head’s refresh rate can be adjusted in six stages between 800 Hz and a maximum of 25 kHz.

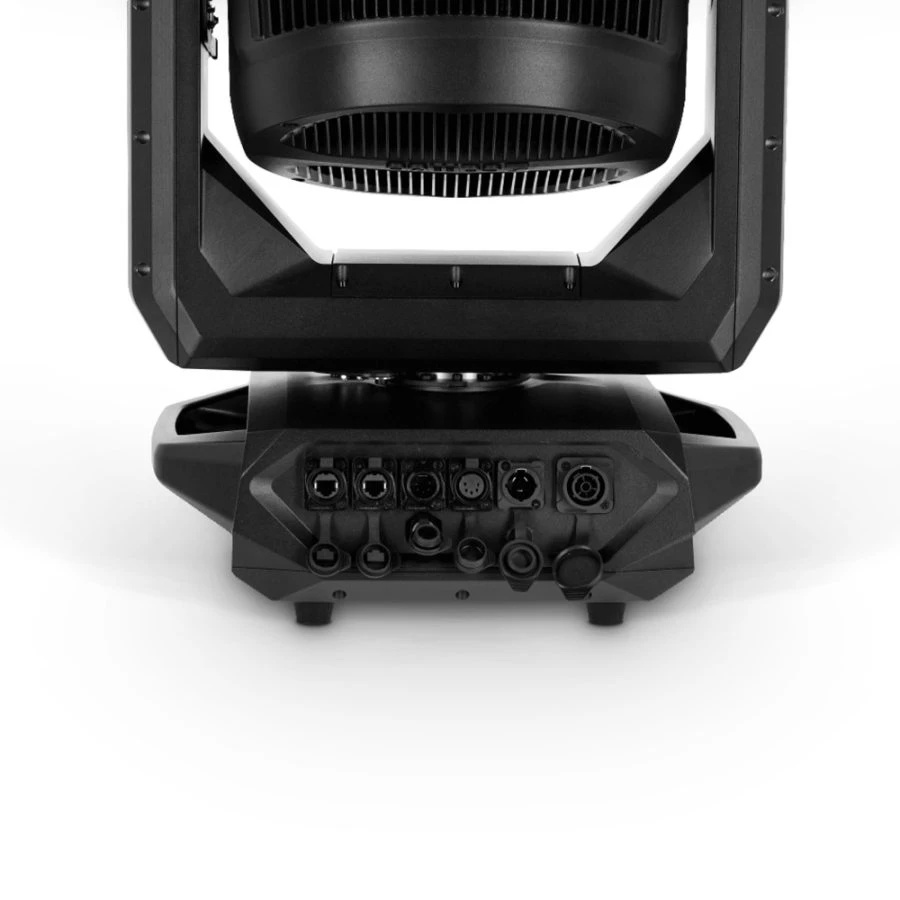

Software control via a network is highly flexible with DMX, RDM Art-Net3, sACN or KlingNet. Further effect devices in the network are looped through via 5-pin XLR sockets. Independent operation and mains-independent configuration in Auto Program and Static Mode are carried out via the 4 touch buttons with battery-powered graphic display. Preset colour filters allow problem-free use in combination with conventional headlamps.Cameo EVOS® W7 IP LED luč za učinke in osvetlitev na prostem

Cameo izdelki

Vsi tehnični podatki, opisi in galerije so na voljo na uradni spletni strani proizvajalca.

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Tehnični podatki

Product type LED Moving Lights
Type Moving Head
Colour spectrum RGBWW
Number of LEDs 19
LED type 40 W RGBWW
Refresh rate 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz – adjustable Hz
Dispersion Beam Angle: 4.5 ° – 34 °, Field Angle: 7 ° – 55 °
DMX input Network, XLR 5-pin male IP65
DMX output Network, XLR 5-pin female IP65
DMX mode 16-channel, 18-channel, 23-channel, 33-channel, 43-channel, 87-channel
DMX Functions Colour presets, Device Settings, Dimmer, Dimmer Fine, Effect patterns, Motion Macro, Pan/Tilt, Pan/Tilt fine, Patterns, Single Pixel Control, strobe, Zoom, Zoom Fine
PAN movement 540 °
TILT movement 270 °
Standalone modes Art-Net3, DMX512, KlingNet, RDM enabled, sACN
Controls Encoder wheel
Indicators Backlit colour LCD display, Battery supply for mains-independent system settings (automaticlly rechargeable battery)
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption 900 W
Fuse T10AL 250 V
Power connector Neutrik TrueOne Input
Housing material Environment-friendly fire-retardant ABS, nylon and polycarbonat
Cabinet colour Black
Protection class IP IP65
Luminous flux 12500 lm
Weight 25 kg
