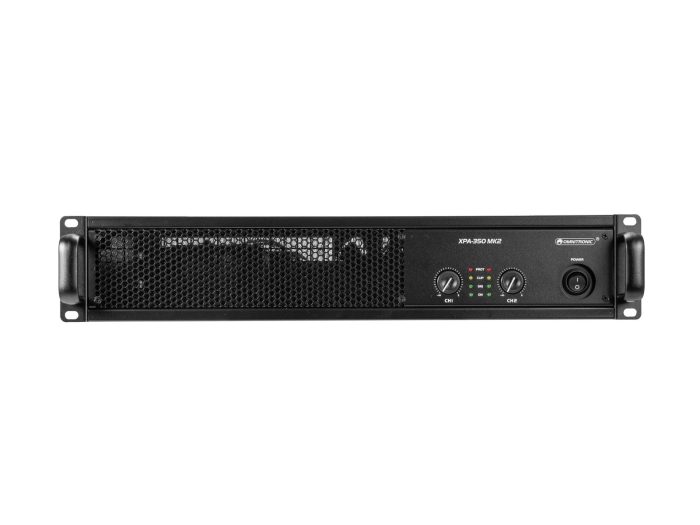

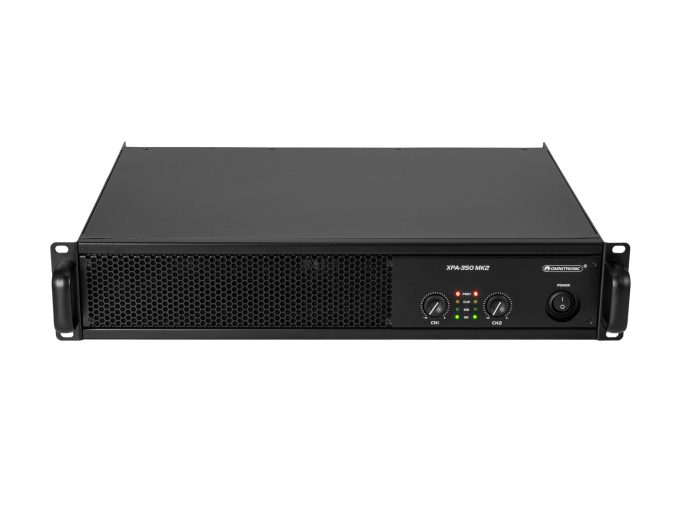

XPA-350 MK2 Ojačevalnik, 2 x 175 W

Opis

XPA-350 MK2 Ojačevalnik

2x 175W rms

Frekvenčni razpon 20-20.000 Hz

Napajanje preko toroidnega transformatorja

Signalni vhodi preko XLR ali RCA priključkov
Izhodi za zvočnike preko Speakon prikjučkov in vijačnih spojk
AB Ojačevalnik za dober zvok in veliko dinamiko
Naprav je hlajena s temperaturno nadzorovanim ventilatorjem
(19″) 48,3 cm rack namestitev 2 U
Za področja uporabe, kot so: klubi/plesne šole; namestitev; mobilna uporaba; mobilni DJ-ji/animatorji; restavracije, bari in hoteli; najem; športni centri/fitnesi; band

Dodatne Informacije

Specifikacije

Power supply:	230 V AC, 50 Hz
Power consumption:	245 W 1/8 power
Protection class:	Protection class I
Output power:	2 x 175 W RMS (4 ohms) 2 x 130 W RMS (8 ohms) 350 W RMS bridged (8 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length:	1 m detachable
Fuse:	5 x 20 mm, F 8 A Fuse serviceable
Frequency range:	20 – 20000 Hz
S/N ratio:	>95 dB
THD:	<0,5 % at 1 kHz
Cooling:	1 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Gain:	30 dB/ 1 V
Housing color:	Black
Circuitry:	Class AB
Slew rate:	>20 V/µs
Damping factor:	>200
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls:	Short-circuit; overheat; DC voltage; softstart; power on/off transients; VHF; current limiting; limiter
Status LED:	Power, signal, clip, protect
Connections:	Input: line via 2 x 3-pin XLR Input: line via 2 x stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal Output: Speaker (bridge) via 1 x speaker built-in socket (F) Output: Speaker (bridge) via screw terminal
Input sensitivity:	1 V
Housing design:	(19″) 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 36,8 cm Height: 9,1 cm
Weight:	7,65 kg
