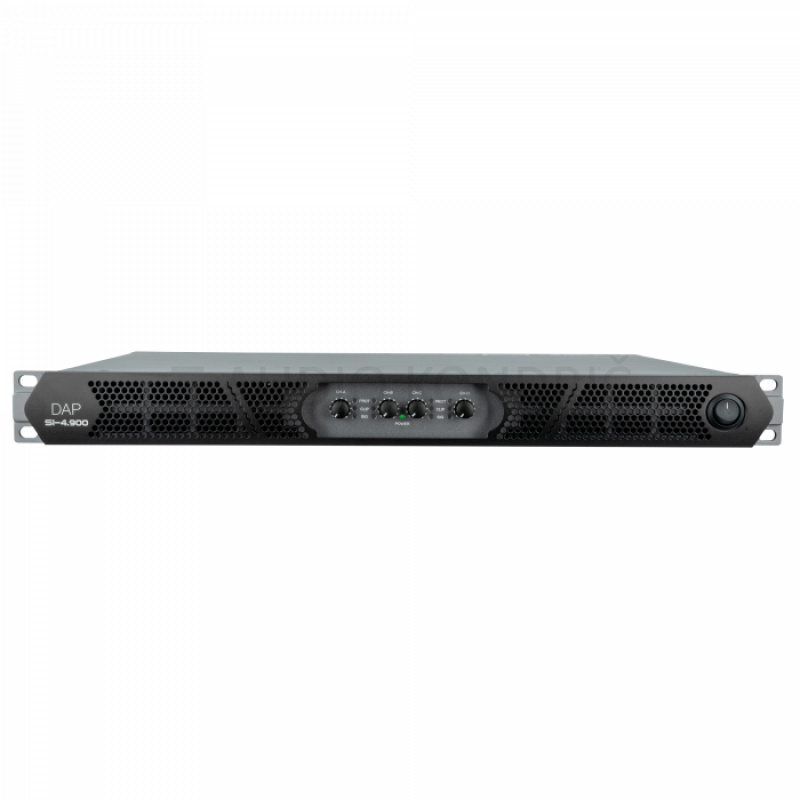

DAP SI-4.900, 4x 900 W install amplifier

Dodatne Informacije

Outputs

• 2 ohms Stable Yes
• Output per Channel into 8 ohms at 1 kHz 600 W
• Output per Channel into 4 ohms at 1 kHz 900 W
• Output per Channel into 2 ohms at 1 kHz 1350 W
• Bridge Output into 8 ohms at 1 kHz 1800 W
• Bridge Output into 4 ohms at 1 kHz 2700 W
• Output Channels 4
• Output Mode 4-channel, Bridge, Mono, Parallel, Stereo
• Output Connector Speaker Connector 4 pole

Inputs

• Mono Inputs 4
• Mono Input Connector 3-pin XLR
• Mono Input Impedance 20000 Ω
• Balanced Mono Input Sensitivity 32 dBu
• Audio Specifications
• THD Level < 0.05 %
• Signal-to-noise Ratio > 100 dB
• Slew Rate 50 V/μs
• Amp Technology Class D
• Damping Factor 1000 :1
• Crosstalk 75 dBu
• Frequency Response Minimum 20 Hz
• Frequency Response Maximum 20000 Hz
• Electrical Specifications and Connections
• Power Supply 100-240 V AC 50/60 H
• SMPS Yes
• Power Consumption 1075 W
• Power Connector In IEC

Mechanical Specifications

• Height (mm) 45 mmWidth (mm) 483 mm
• Length (mm) 296 mm
• Installation Depth (Excl. Connector) 296 mm
• Flightcase Size 19″
• Rack Units 1 U
• Housing Steel
• Colour Black
• Finish Powder Coating
• Weight 5.8 kg
• IP Rating IP20 (indoor use only)

Product Properties

• Electronic Protection Clip limiter, DC voltage, Overheat, Overload,
• Under voltage
• LED Indicators Clip, Power, Protect, Signal

Included Items

• Included Cables IEC cable
• Included Accessories Rubber feet
