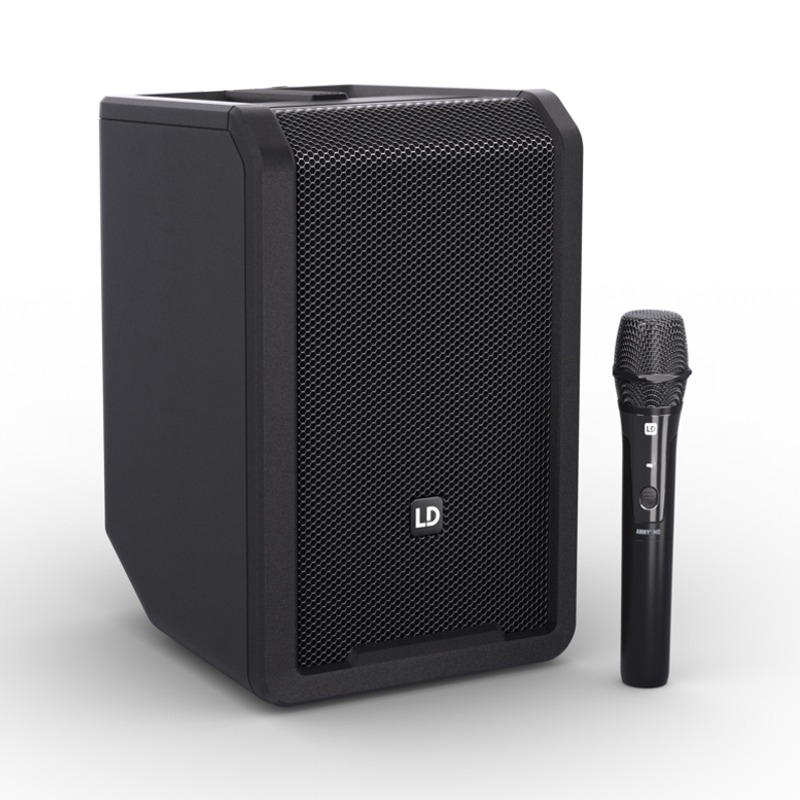

LD Systems ANNY® 8 HHD B5 Akumulatorsko ozvočenje + 1x brezžični mikrofon

Dodatne informacije

ANNY® 8 HHD B5

• Uradna stran proizvajalca

Tehnični podatki

• Product type: Battery-powered PA speaker
• Type: Set (1x ANNY 8, 1x receiver, 1x handheld microphone)
• Frequency range: 584 – 608 MHz
• Weight: 9.27 kg

Items in this set

LD Systems ANNY® 8 Portable battery-powered Bluetooth® PA loudspeaker with mixer, Stage Black

Product type: Battery-powered PA speaker
Type: Powered
Color: Stage black
System output (RMS): 80 W
System output (Peak): 160 W
Max. SPL Average (Sine burst): 110 dB
Max. SPL Peak (Sine burst): 117 dB
Frequency response (-10 dB): 53 – 20,000 Hz
Crossover frequency: 1800 Hz
Dispersion (H x V): 120° x 60°
Width: 249 mm
Depth: 282 mm
Total Height: 390 mm

Features:

• 3-band EQ
• 6-channel mixer with system presets
• Effects (reverb and delay)
• Priority/ducking mode
• TWS
• USB-C port for mobile device charging

Low-mids:

• Woofer dimensions: 8″ (203 mm)
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil (inch): 1.5″ (38 mm)

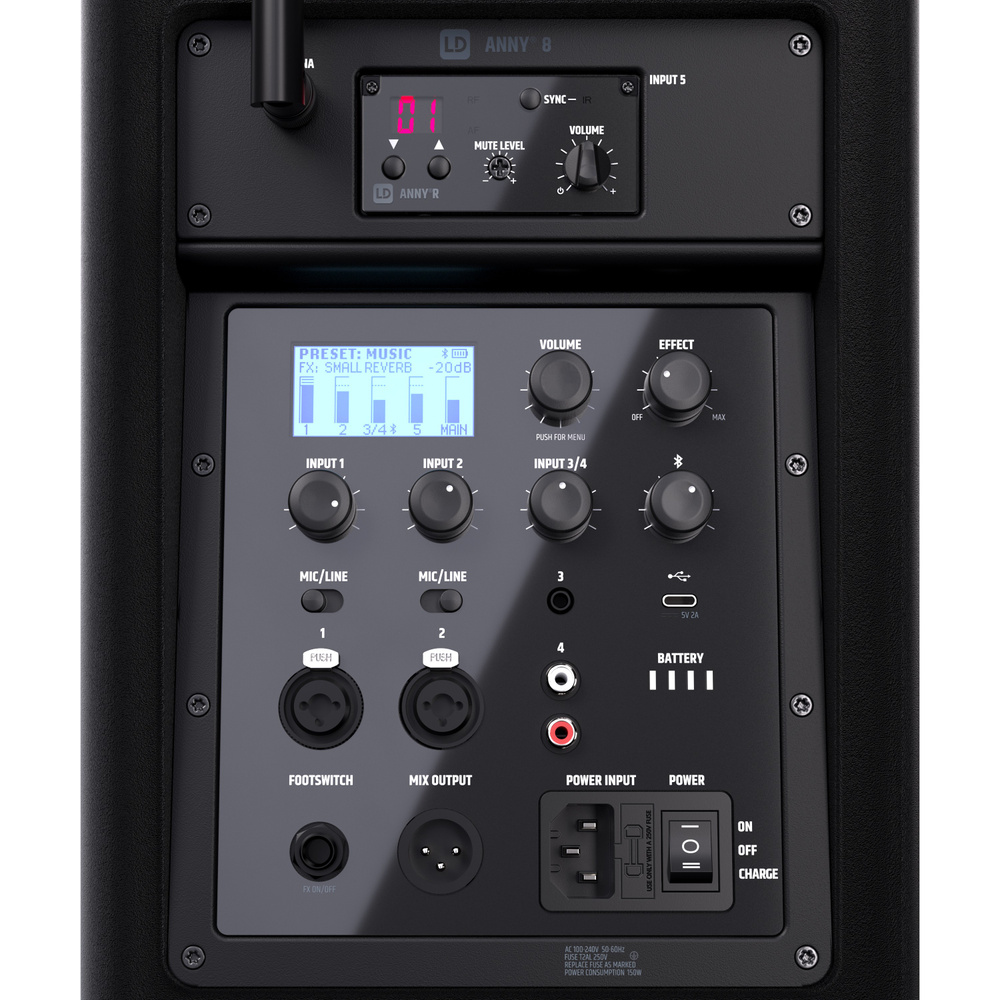

Controls:

• Effect
• Input 1 Mic/Line switch
• Input 1 volume
• Input 2 Mic/Line switch
• Input 2 volume
• Input 3+4 volume
• Input 5+6 (Bluetooth) volume
• Main volume / menu navigation
• Power

Indicators:

• Battery status
• Multifunction LC display

Cabinet construction: Bass Reflex
Housing material: ABS plastic
Weight: 8.8 kg

HF:

• Horn: Constant directivity
• Tweeter dimensions: 1″ (25 mm)
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Tweeter voice coil: 1″ (25 mm)

Amplifier module (integrated):

• Amplifier: Class D
• Protection circuits: Short circuit, thermal overload
• Ambient temperature (operating): 0°C – 40°C
• Relative Humidity: 0 – 80% (non-condensing)
• Fuse: T2 AL 250V
• Mains connector: IEC
• Operating voltage: 100V AC – 240V AC, 50 – 60 Hz
• Power consumption: 150 W

Physical inputs: 5
Physical input connectors:

• 2 x 6.3 mm / XLR combo
• 2 x RCA
• 3.5 mm jack

Mix output: 1
Mix output connector: XLR male

Bluetooth Standard: 5.0
Bluetooth Audio Decoder: AAC, SBC

Rechargeable battery:

• Rechargable batteries: 14.8V / 5Ah
• Battery technology: Li-Ion rechargeable battery
• Indicator battery: 4-segment LED
• Battery life music (MUSIC, full volume): 3.5 Hours
• Battery life music (ECO, mid volume): 11 Hours
• Charging time (80%, no signal): 3 hours
• Charging time (full recharge): 5 hours

LD Systems ANNY® MD B5 Wireless Handheld Microphone for ANNY®

• Product type: Battery-powered PA speaker accessories
• Type: Microphones
• Transmission frequency range: 584 – 608 MHz
• Channels: 12
• Microphone type: Dynamic
• Directivity: Cardioid
• Frequency response: 60 Hz – 20 kHz
• Signal-to-noise ratio: 104 dB
• Rated HF output power: 10 mW
• Power supply: 2 x AA battery
• Operating time: >8 h (with alkaline batteries)
• Length: 250.4 mm
• Diameter: 32.5 mm
• Other features: incl. batteries, IR frequency synchronisation
• Controls: Power On/Off
• Indicators: power/battery status low (LED)
• Weight: 0.2 kg

LD Systems ANNY® R B5 Receiver Module for ANNY®

• Product type: Battery-powered PA speaker accessories
• Type: Receivers
• Modulation Type: FM
• Transmission frequency range: 584 – 608 MHz
• Channels: 12
• Frequency response: 50 Hz – 17 kHz
• Controls: Mute Level (Squelch), Power / Volume, SYNC, Value Down, Value Up
• Indicators: AF (audio signal), LED Display, RF (radio signal)
• Connectors: Audio outputs, BNC-Antenna
• Weight: 0.08 kg
