EUROLITE QuickDMX Wireless sprejemnik

  • EUROLITE QuickDMX Wireless Receiver
  • Compact wireless DMX receiver 2.4 GHz
Original price was: €94,00.Current price is: €79,00.

Opis

EUROLITE QuickDMX Wireless sprejemnik, Compact DMX Wireless System 2.4 GHz

The Eurolite QuickDMX transmitter and receiver is used for wireless transmission of DMX512 signals. The complete technology is integrated in an extended 3-pole XLR connector (female) with a rotatable antenna.

The device is constructed as a transceiver, so it can be used as any transmitter and receiver. The use of this device eliminates the necessity of time-consuming cabling between the DMX lighting control unit and the DMX-controlled devices.

Due to the GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is also possible besides other wireless Bluetooth and WiFi devices.
The range is up to 400 meters with visual contact.
Setup is very easy via Plug & Play with a button for connecting and disconnecting QuickDMX receivers.

  • User-friendly 3-pin XLR adapter (female) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Can receive and process up to 512 DMX channels
  • Control via QuickDMX; plug and play
  • Operating range up to 400m

Package contents

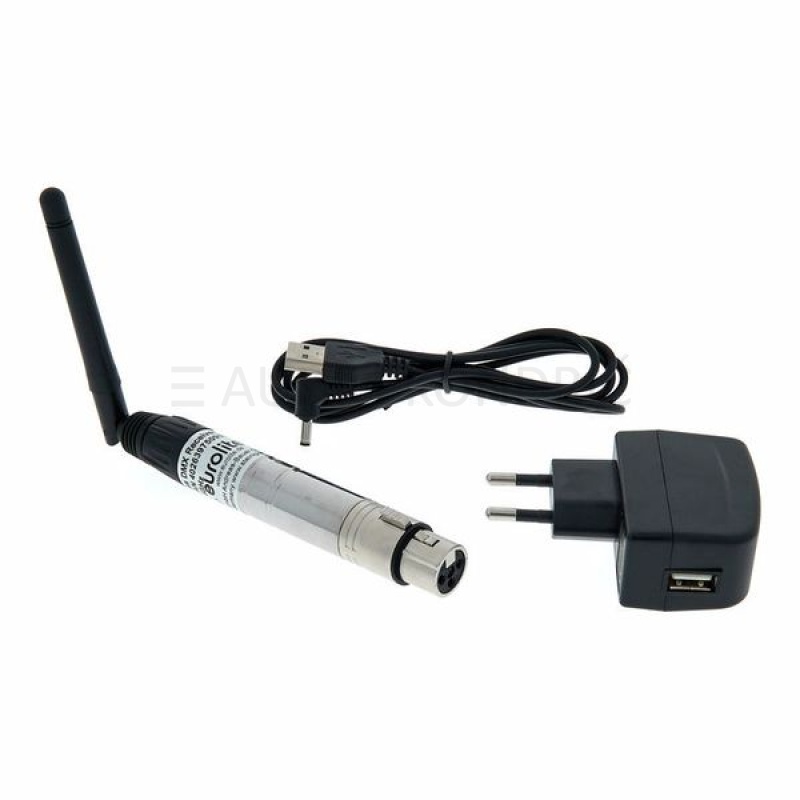

  • 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable

Tehnične specifikacije

Power supply: 100-240 V AC, 50/60 Hz
IP classification: IP20
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
DMX channels: Input 512
DMX output: 3-pin XLR (F)
Control: QuickDMX; plug and play
Range: Range up to 400m
Carrier frequency: 2,4 GHz
Parallel mode: Max. 6 transmitter
Modulation: GFSK
Color: Silver
Dimensions: Length: 21,2 cm
Diameter: Ø 1,8 cm
Weight: 160 g
