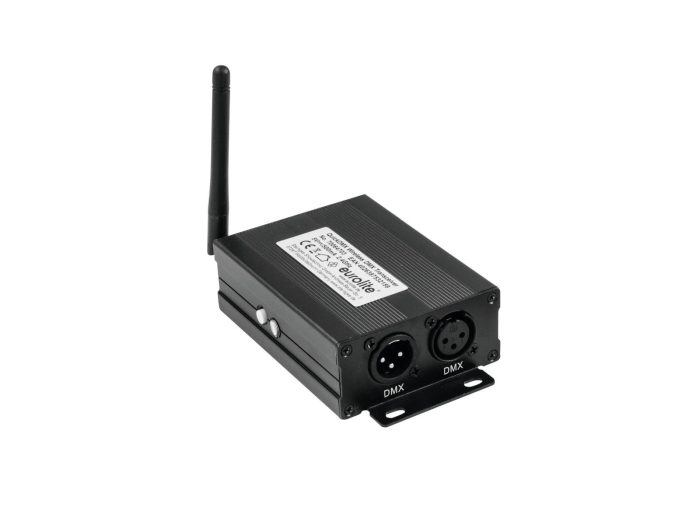

EUROLITE QuickDMX Wireless oddajnik/sprejemnik

  • EUROLITE QuickDMX Wireless Transmitter/Receiver
  • Wireless DMX system 2.4 GHz
Original price was: €105,00.Current price is: €89,00.

Opis

EUROLITE QuickDMX Wireless oddajnik/sprejemnik, Wireless DMX system 2.4 GHz

Wireless DMX system 2.4 GHz

  • Auto-switching transceiver
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Control via DMX; QuickDMX; plug and play
  • Operating range up to 400m

Package contents

  • 1 x device, 1 x user manual, 1 x external mains adapter, 1 x uSB cable, 1 x antenna, 1 x declaration of conformity

Tehnične specifikacije

Power supply: 100-240 V AC, 50/60 Hz
5 V DC 500 mA
IP classification: IP20
Power connection: Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
DMX channels: Input 512
Output 512
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; QuickDMX; plug and play
Range: Range up to 400m
Carrier frequency: 2,4 GHz
Parallel mode: Max. 6 transmitter
Modulation: GFSK
Color: Black
Dimensions: Width: 21,2 cm
Depth: 10 cm
Height: 7,5 cm
Weight: 290 g
