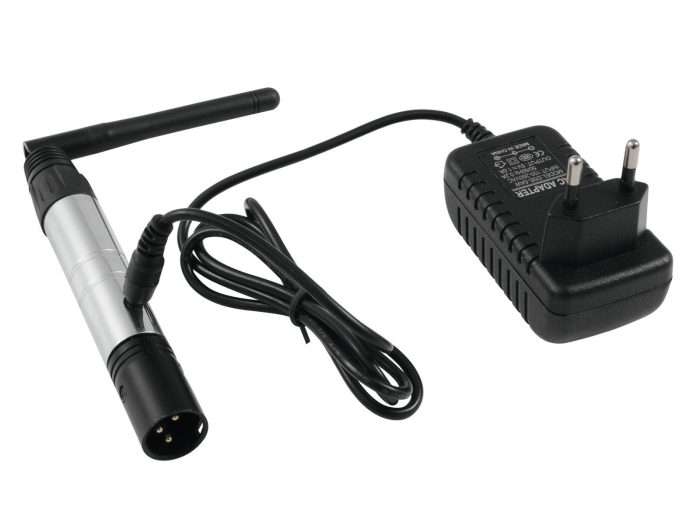

EUROLITE QuickDMX Wireless oddajnik

  • EUROLITE QuickDMX Wireless Transmitter
  • Compact wireless DMX transmitter 2.4 GHz
Original price was: €95,00.Current price is: €79,00.


EUROLITE QuickDMX Wireless oddajnik, Compact wireless DMX transmitter 2.4 GHz

Compact wireless DMX transmitter 2.4 GHz

  • User-friendly 3-pin XLR adapter (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Can transmit up to 512 DMX channels
  • Control via QuickDMX; DMX; plug and play
  • Operating range up to 400m

Package contents

  • 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable

Tehnične specifikacije

Power supply: 100-240 V AC, 50/60 Hz
5 V DC 1 A
IP classification: IP20
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
DMX channels: Output 512
DMX input: 1 x 3-pin XLR (M)
Control: QuickDMX; DMX; plug and play
Range: Range up to 400m
Carrier frequency: 2,4 GHz
Parallel mode: Max. 6 transmitter
Modulation: GFSK
Color: Silver
Dimensions: Length: 21,2 cm
Diameter: Ø 1,8 cm
Weight: 150 g
