Z mešalno mizo Omnitronic EM-260B Entertainment Mixer lahko na zelo preprost način združite 3 mikrofonske in 3 linijske vire v en stereo izhod. Namestitev mešalne mize je prav tako enostavna, saj ste zaradi majhnih dimenzij prilagodi
Jasno zasnovana
Tudi če ste začetnik, lahko mešalno mizo upravljate zelo enostavno. Ker je jasno strukturirana, se ne boste izgubili. Vsak kanal ima LED diodo za prikaz preobremenitve (clip LED). Mikrofonski vhodi imajo možnost fantomskega napajanja 12 V. Enota je idealna za namestitev v barih, restavracijah ali klubskih hišah.
Tehnični podatki
6-channel microphone/line mixer
- 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs

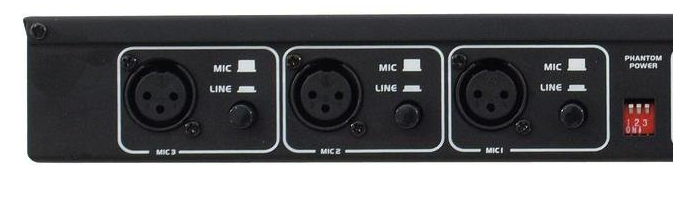

- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- (19″) 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Technical specifications
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 – 20000 Hz |
| Phantom power: |
Or 12 V DC |
| Housing color: |
Black |

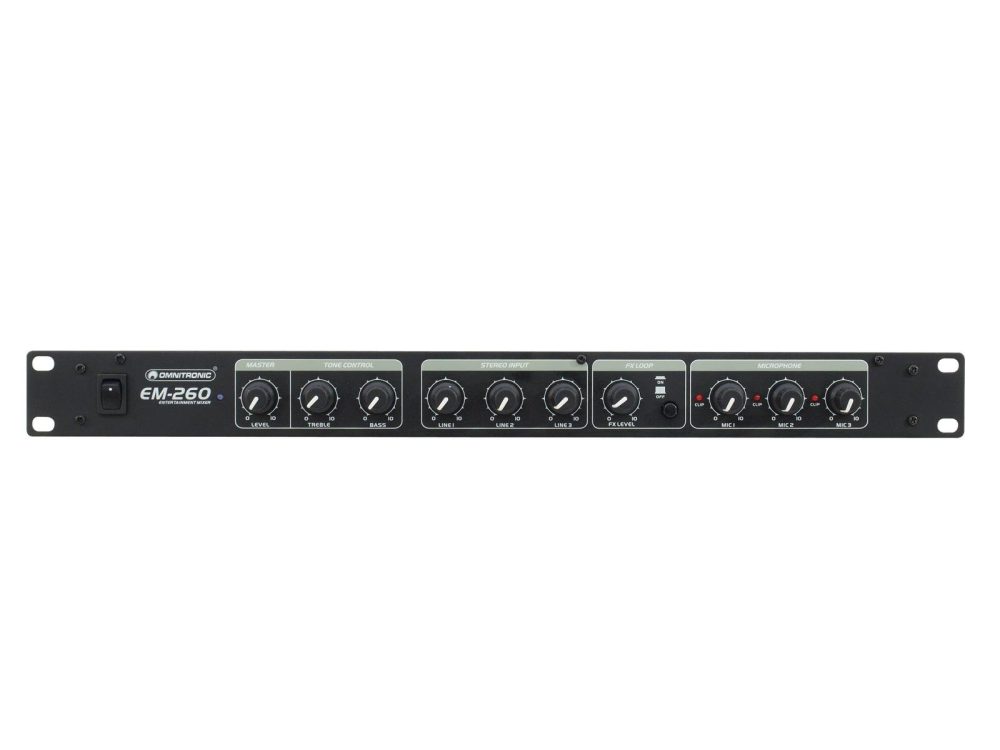

| Control elements: |
Phantom power switch, power switch, FX send/returne control |
| Status LED: |
Power, clip |

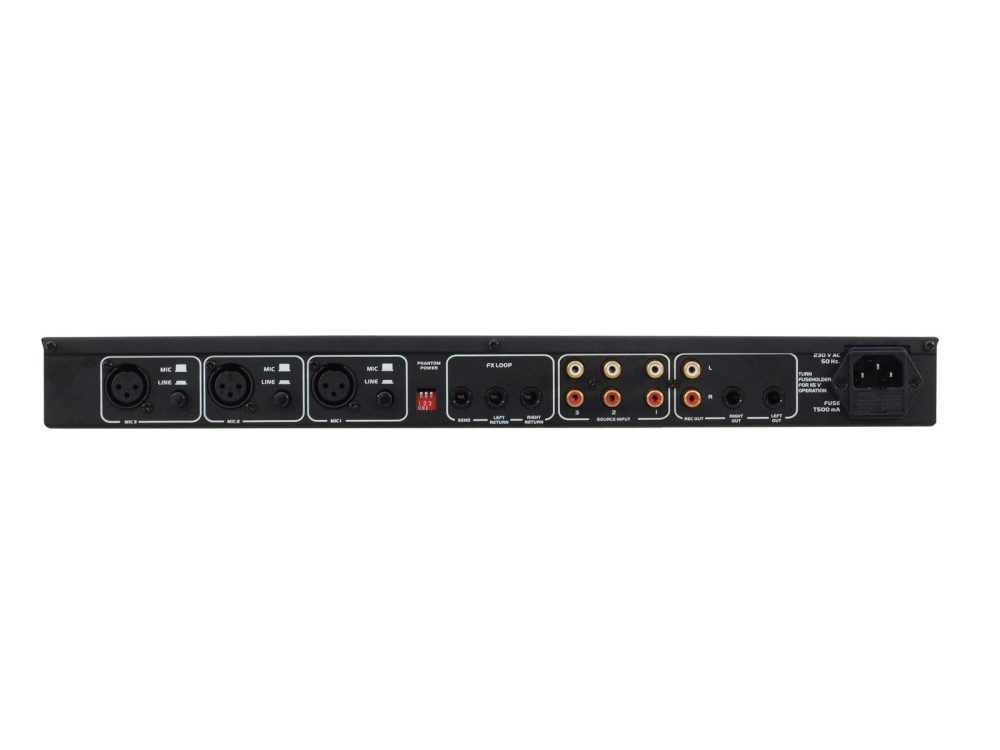

| Connections: |
Input: mic/line via 3 x 3-pin XLR
Input: line via 3 x stereo RCA
Input: FX via 2 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: |
Input chanel: 3 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ 100Hz/10kHz
Microphon chanal: 3 x mono with mic-line switch via XLR, channel control via rotary dial
Master output: 1 x stereo via jack, channel control via rotary dial |
| Max. level: |
Input: microphone +14 dB
Input: line +24 dB |
| Material: |
Metal |
| Housing design: |
(19″) 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 12,3 cm
Height: 4,45 cm |
| Weight: |
2,30 kg |
