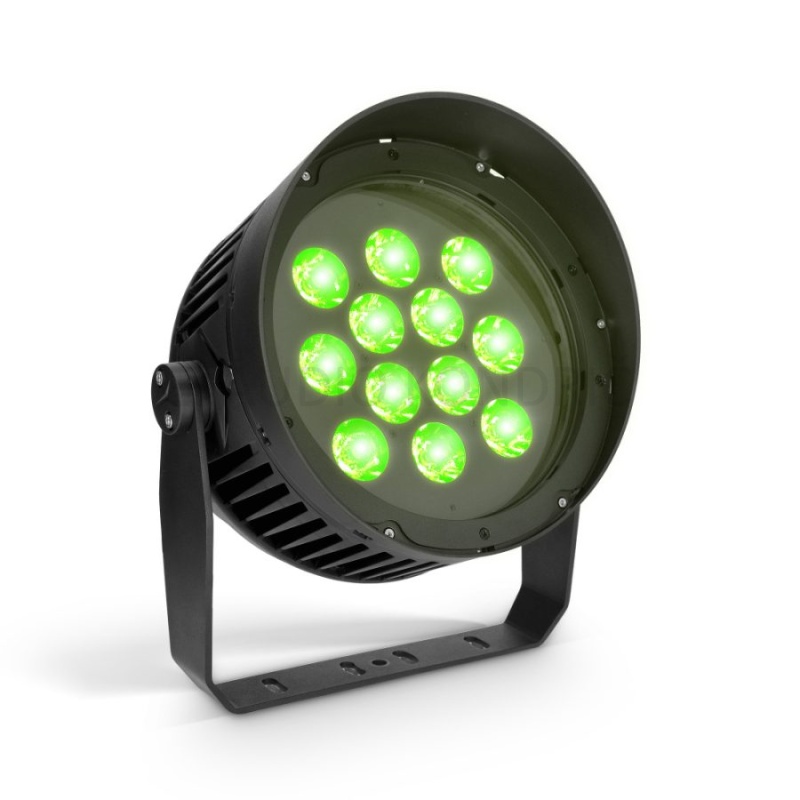

Cameo DURA SPOT 200 zunanji reflektor

Cameo DURA SPOT 200 zunanji reflektor

IP67 Install Spot with RGBW LED

Opis

Cameo DURA SPOT 200 zunanji reflektor

Efficient 20 W RGBW LED
IP67 and IK08 classification for permanent outdoor use
4 sizes to fit any application
6° beam angle
Various filters for different beam angles available as accessories
Filters can be applied without breaking IP Seal
Anti glare shield included for less light spill
Calibrated LEDs for excellent colour consistency
Control via DMX, RDM or external control remote (UNICON)
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Imagine transforming an ordinary building into a breathtaking work of art with just a few strategically placed lights. With the DURA® Spot fixtures, this vision can become a reality. These IP67-rated outdoor install fixtures are built to withstand any weather conditions, making them perfect for illuminating objects, buildings, and facades of historical or artistic architecture.
With 4 different sizes available, the DURA® Spots are offering flexibility to its users – The DURA® Spot 60, 100, 200 and 400 are all equipped with an efficient 20W RGBW LED and calibrated for excellent colour consistency. The 6° beam angle and anti-glare shield included with each lamp help to minimize light spill and create a focused, stunning effect.
Various filters for different beam angles are available as accessories, providing versatility in lighting design and allowing you to customize the lighting to fit any application. And with control via DMX, RDM, or external control remote via Cameo’s UNICON® (CLIREMOTE), you can easily adjust the lighting to suit any mood or occasion.
Boasting a minimum LED lifetime of 50,000 hours (to >70% luminous output), the DURA® Spots are built to last. Whether you’re a lighting designer or planner looking to create a unique artistic touch for a building, or a business owner looking to enhance the appearance of your property, the DURA® series is the perfect solution. So why settle for ordinary lighting when you can create something extraordinary with the DURA® Spot series?

Cameo izdelkiCameo DURA SPOT 200 zunanji reflektor

Vsi tehnični podatki, opisi in galerije so na voljo na uradni spletni strani proizvajalca.

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Tehnični podatki

Product type LED Lighting
Type Installation spotlights
Colour spectrum RGBW
Number of LEDs 12
LED type 4in1 chip
LED power 20 W
Luminous flux 7000 lm
LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Half spread angle 6 °
Tenth dispersion angle 11 °
DMX In/Out Permanently mounted 5-pin signal cable (DMX In and Out), 2 m, open ends
DMX Functions Calibration, CCT, Colour presets, Device Settings, Dimmer 8bit/16bit, Dimmer Curve, Dimmer Response, Factory reset, PWM, Record User Colour, RGBW, strobe
Control DMX512, RDM
Standalone Functions Auto programs, CCT, Colour presets, Direct, Timer
Controls External Control Remote (UNICON)
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption 220 W
Inrush Current Power 40A / 1ms (first half-wave)
Colour rendering index (Ra) >79 @ 8700K
Efficiency 32 lm/W
power factor >0,9 / 100-240V
Power connector Permanently mounted mains cable H07RN-F, 3x 1.5 mm², 2 m, open ends
Overvoltage protection 4 KV
Ambient temperature (operating) -20 – 45 °C
Relative Humidity < 80%, not condensing
Housing material Die-cast aluminium
Cabinet colour Black
Corrosion resistance C5-M powder coating
Protection class IP67
Cable ducts IP68
Impact resistance level IK08
Housing Cooling forced air cooling
Max. Mounting height unlimited
Height 250 mm
Width 282 mm
Depth 284 mm
Weight 13,09 kg
Accessories (included) Half anti glare shield, Mounting ring for optional interchangeable lenses
Accessories (optional) External Control Remote (UNICON), Full anti glare shield, Interchangeable lenses (20°, 40°, 55°, 60°x10°)
