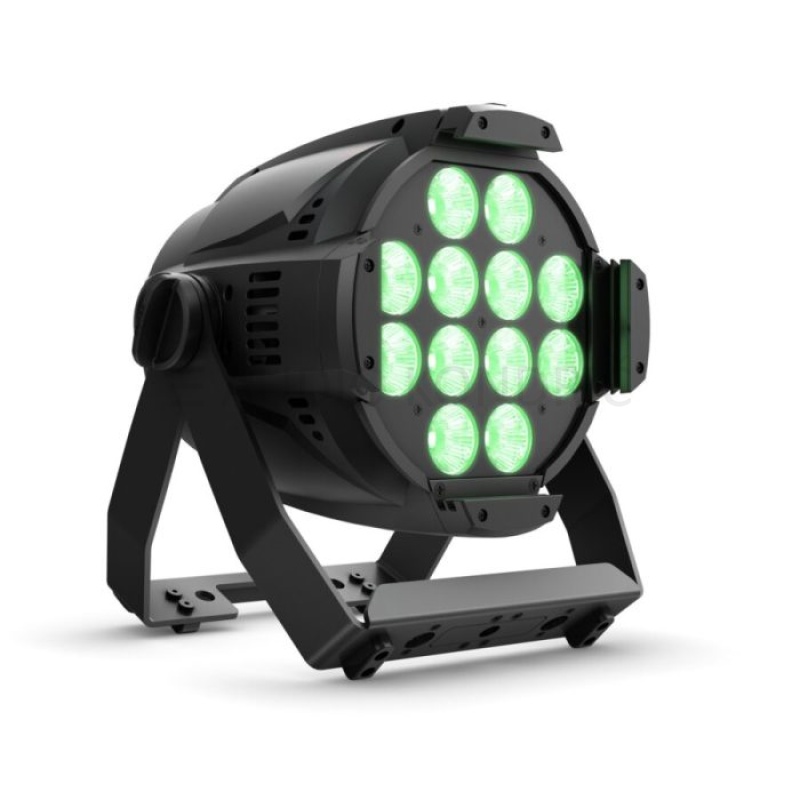

Cameo STUDIO PAR 6 G2

Cameo STUDIO PAR 6 G2 12 x RGBAWUV 6-in-1 LED reflektor

12 x 12 W 6-in-1 RGBAWUV LED with 4,700 lm luminous flux
Revised design with many workflow optimisations
Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
Virtually silent operation in “Silent Fan Mode”
Intuitive holding mechanism for colour filter frames
Wireless control via W-DMX™ via optional Cameo iDMX Stick
Simple configuration via OLED display
PowerCON compatible power connector
Fold-out 16 mm TV spigot (SPIN16®) can be retrofitted as an option

Smo uradni uvoznik ter uradno pooblaščeni serviser v garancijskem in izven garancijskem roku za produkte Adam Hall, LD Systems, Cameo, Palmer, kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.

Povezava na uradno spletno stran izdelka LINK

Ostali Cameo Produkti LINK

Dodatne Informacije

Product type	LED PAR Lighting
Type	Studio PAR
Colour spectrum	RGBWA + UV
Number of LEDs	12
LED type	6in1 RGBAWUV 12 W SMD LED
Luminous flux	4700 lm
Dispersion	Beam Angle: 21 °, Field Angle: 35 °
Lens	12 x acrylic lens
LED PWM Frequency	650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution	16 bit
Dimmer curves	Exponetial, Linear, Logarithmic, Square
Strobe	0 – 20 Hz
CRI	>74 Ra
DMX input	3-Pol, iDMX slot
DMX output	3-Pol
DMX mode	1-channel, 10-channel, 12-channel, 14-channel, 18-channel, 3-channel, 4-channel, 6-channel, 9-channel
DMX Functions	colour macro, Device Settings, Dimmer, Dimmer Curve, EZ-Chase, RGBWA, strobe, UV
Standalone modes	Auto Mode, Static
System settings	Calibration, Default settings, Dimmer, Dimmer Response, Display, Fan mode, LED PWM Frequency, Signal Fail, Wireless
Controls	4 x Buttons, Down, Enter, menu, Up
Indicators	OLED Display
Relative Humidity	< 80 %, not condensing
Protection class IP	IP20
Ambient temperature (operating)	-10 – 40 °C
Cooling	Convection, low-noise fan
Operating voltage	100 V AC – 240 V AC, 50 – 60 Hz
Power connector	PowerCon Blue I/O
Fuse	T2A
Max. Power consumption	125 W
Housing	Die-cast aluminium
Cabinet surface	Powder coated
Cabinet colour	Black
Height	360 mm
Width	310 mm
Depth	250 mm
Weight	5,1 kg
