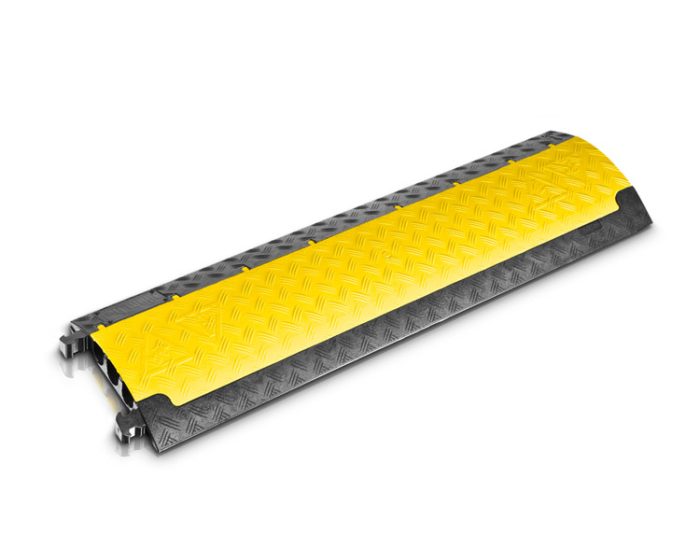

Defender Mini 85200 Pohodna zaščita za kable, 3 kanalna

Defender Mini 85200, 3 kanalna, rumeno-črna.

Zaščita za kable, je lahka, trpežna in enostavna za uporabo.

Garancija 5 let



Defender Mini 85200 Pohodna zaščita za kable, 3 kanalna, rumeno-črna.

  • Lahkost: Defender Mini 85200 je izjemno lahek, zato ga je enostavno prenašati in nameščati.
  • Trpežnost: Defender Mini 85200 je izdelan iz trpežnega materiala, ki lahko prenese težo do 2 ton.
  • Enostavna uporaba: DefenderMini 85200 je preprost za uporabo, saj ima patentiran mehanizem za zapiranje, ki preprečuje, da bi se kabel zataknil.

3 kanali: 1 kanal 35 x 35 mm, 2 kanala 35 x 30 mm
Dolžina: 1000 mm
Širina: 290mm
Višina: 48mm
Teža: 5Kg

Nosilnost: 2000Kg
TÜV SÜD certifkat

Dodatne Informacije

3 small cable channels – light and robust

The Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

    • Compact, non-slip cable protector made of black, recyclable polyurethane
    • Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, Item No. 85200BLK)
    • Patented, self-cleaning lid hinge
    • 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
    • Load bearing capacity approx. 2t / 20 x 20 cm
    • Fire resistance class E according to DIN EN 13501-1 (B-s1 applied for)
    • Resistant to oil, acid, petrol and short-term contact with solvents
    • Dimensions 105 x 29 x 5 cm; Weight 6 kg
    • Reliable protection for cables and personnel for indoor and outdoor use
    • Not suitable for vehicular traffic
    • End ramps for secure cable inlet and exit as accessories
    • TÜV SÜD certified

Video Produkta

Navodilo za uporabo

Navodilo za uporabo. LINK

Rezervni deli

Seznam dobavljivih rezervnih delov – cene pošljemo po povpraševanju

85299 Yellow Cap for 85200 and 85150

85299BLK Black Cap for 85200 and 85150
