Zidna kontrola za MATAMP-2240

Wall panel for use with MATAMP-2240

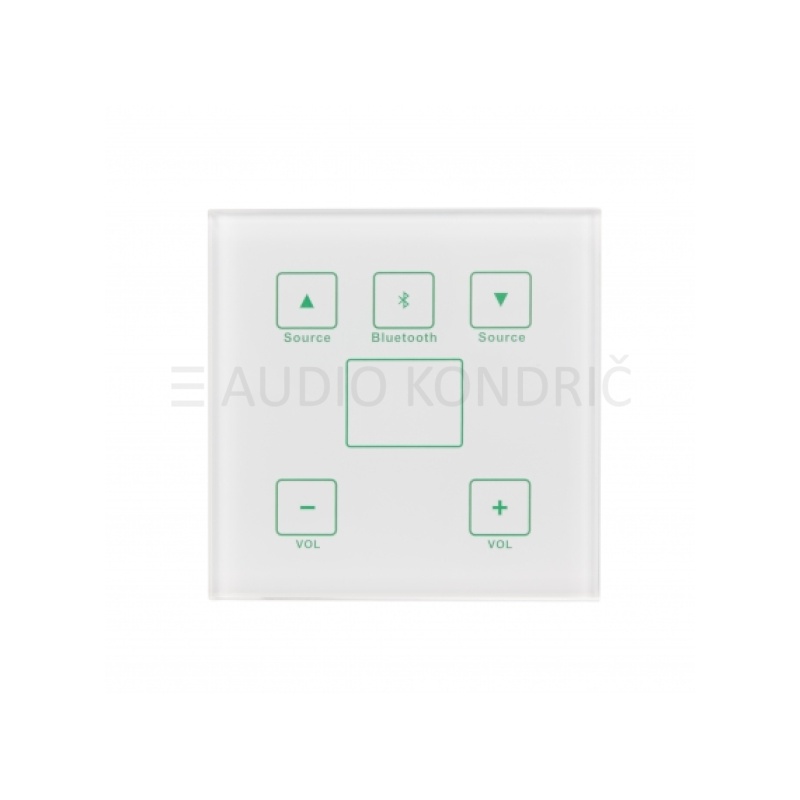

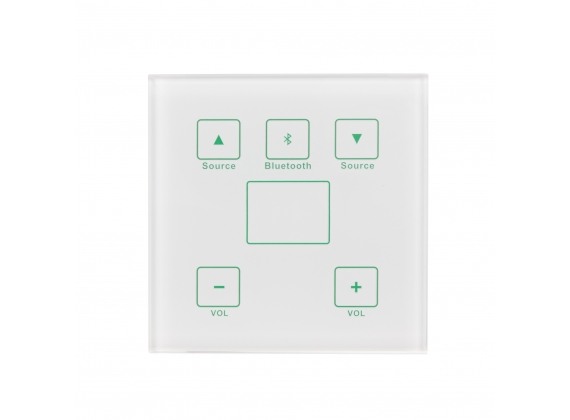

WP-2240 je elegantna in diskretna stenska nadzorna plošča, namenjena za uporabo z matričnim ojačevalnikom ArtSound MATAMP-2240.

Omogoča vam enostavno

spreminjanje glasnosti,

izbiro vira zvoka in lokalno Bluetooth povezavo.

LED plošča subtilno prikazuje vaše trenutne nastavitve, kar zagotavlja popoln nadzor nad zvokom.

Dodatne informacije

Wall-mounted programmable controller for MX-8A and other compatible Tascam products
Encoder (with push switch) and four switches for adjusting volume, muting and switching audio sources
Functions can be assigned to the encoder and the switches using Tascam MX Connect
Prevents end-users from making mistakes by assigning only necessary functions to the controller
Two source switching modes available:
- 1: Sources can be selected directly by pushing switches (up to four sources can be assigned)
- 2: Sources can be selected from a screen (up to eight sources can be assigned)
Easy-to-read display
- Name of the selected source and current volume can be checked
- Backlight turns off automatically

Daisy chaining of up to eight units is possible using Cat 5e cables (or better, maximum length 200 m)
Power can be supplied to the unit from the mixer via the RS-485 connection, reducing power construction and installation costs
Two different product variants available:
- RC-W100-R120 is compatible with switch boxes commonly used mainly in the USA and Japan
- RC-W100-R86 is compatible with switch boxes commonly used mainly in Europe
Connectors: Two RJ-45 (RS-485) connectors
Power consumption: 0.24 W
Overall dimensions (W × H × D):
- RC-W100-R120: 70 mm × 114 mm × 54 mm
- RC-W100-R86: 87 mm × 87 mm × 54 mm
Weight: 140 g
Permissible operating temperature range: 0–40 °C
