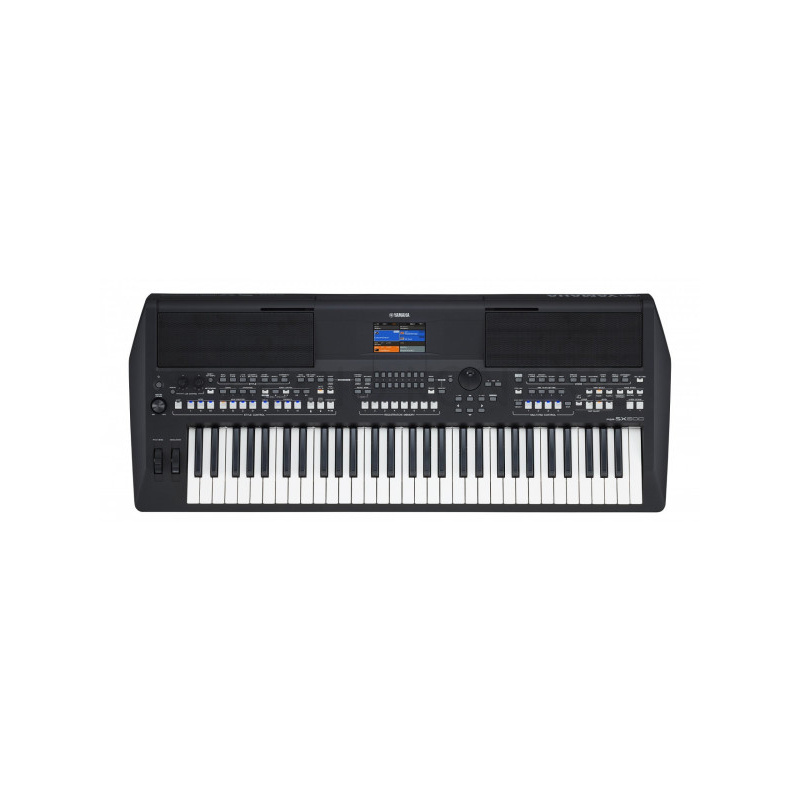

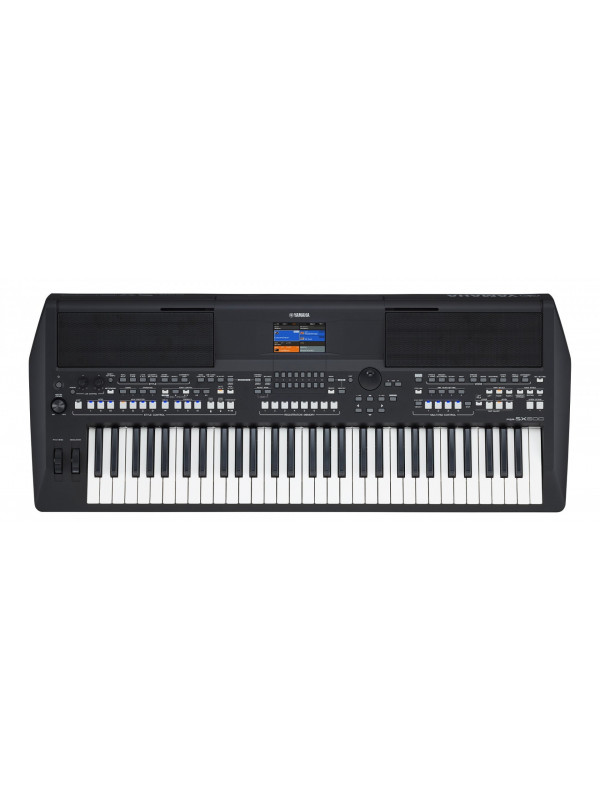

YAMAHA klaviatura PSR-SX600

YAMAHA klaviatura PSR-SX600

Število tipk: 61
Polifonija (maksimalna): 128
Število prednastavljenih glasov: 850 Voices + 43 Drum/SFX Kits + 480 XG Voices, 73 S.Articulation!, 27 MegaVoice, 27 Sweet!, 64 Cool!
Število prednastavljenih skladb: 450
Število snemalnih skladb: 80 minutes/Song
Število snemalnih stez: 16
Ojačevalci: 15 W x 2
Zvočniki: 12 cm x 2
napajalnik: PA-300C or an equivalent recommended by Yamaha
Specifikacije: 480 x 272 dots (4.3 inch)
Specifikacije II: 188 Banks x 4 Pads
Specifikacije III: Registration 8
Lastnosti: Playback; only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
Pribor: Owner’s Manual, Online Member Product Registration, Music Rest, AC Adaptor (may not be include d
Širina: 1004 mm
Višina: 134 mm
Globina: 410 mm
Teža: 8.1 kg

YAMAHA SERVIS

Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku. Garancija na YAMAHA produkte kupljene v katerikoli trgovini v Sloveniji ali Evropi.
Tel: 02 / 776 10 51

Tehnični podatki

		PSR-E473
Color/Finish
Body	Color	Black
Size/Weight
Dimensions	Width	992 mm (39-1/16”)
	Height	136 mm (5-3/8”)
	Depth	404 mm (15-7/8”)
Weight	Weight	7.0 kg (15 lb, 7 oz) (not including batteries)
Control Interface
Keyboard	Number of Keys	61
	Touch Response	Yes (Soft, Medium, Hard, Fixed)
	Type	Organ-style
Other Controllers	Pitch Bend	Yes
	Art. Switches	Yes
	Control Knobs	2
Display	Type	LCD
Display	Backlight	Yes
Panel	Language	English
Voices
Tone Generation	Tone Generating Technology	AWM Stereo Sampling
Polyphony	Number of Polyphony (Max.)	64
Preset	Number of Voices	820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Preset	Featured Voices	3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
Compatibility	GM	Yes
Compatibility	XGlite	Yes
Effects
Types	DSP	DSP1: 41 types, DSP2: 12 types
	Reverb	12 types
	Chorus	5 types
	Master EQ	4 types
Functions	Dual/Layers	Yes
	Split	Yes
	Melody Suppressor	Yes (w/ pan adjustment)
	Crossfade	Yes (between Internal Sound and External Audio)
Accompaniment Styles
Preset	Number of Preset Styles	290
	Fingering	Multi finger, Smart Chord
	Style Control	ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
Other Features	One Touch Setting (OTS)	Yes
Expandability	Expansion Style	10
Compatibility		Style File Format (SFF)
Groove Creator
Preset	Number of Groove	35
Preset	Number of Sections	5 (4 Sections + 1 Musical Climax/Ending)
Songs
Preset	Number of Preset Songs	30
Recording	Number of Songs	10
	Number of Tracks	6 (5 Melody + 1 Style/Groove Creator)
	Data Capacity	Approx. 19,000 notes (when only “melody” tracks are recorded)
Compatible Data Format	Playback	SMF (Formats 0 & 1)
Compatible Data Format	Recording	Original File Format (SMF 0 conversion function)
USB Audio Recorder
Recording Time (max.)		80 minutes (approx. 0.9 GB) per Song
Format	Playback	WAV (44.1 kHz, 16 bit, stereo)
Format	Recording	WAV (44.1 kHz, 16 bit, stereo)
Quick Sampling
Sampling Type		One-shot, Loop
Samples (Preset/User)		4
Sampling Time		Approx. 9.6 sec
Sampling Sources		AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format		Original File Format (16 bit, stereo)
Sampling Rate		44.1 kHz
Functions
USB audio interface		44.1 kHz, 16 bit, stereo
Registration	Number of Buttons	4 (x 8 banks)
Registration	Control	Freeze
Overall Controls	Metronome	Yes
	Tempo Range	11 – 280
	Transpose	-12 to 0, 0 to +12
	Tuning	427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
	Octave Button	Yes
	Scale Type	5 types
Miscellaneous	PIANO Button	Yes (Portable Grand Button)
Miscellaneous	Other Functions	Mega Boost, Motion Effect (57 types)
Voices	Harmony/Echo	26 types
Voices	Arpeggio	152 types
Storage and Connectivity
Storage	Internal Memory	Approx. 1.72 MB
Storage	External Drives	USB flash drive
Connectivity	DC IN	12 V
	AUX IN	Stereo mini jack x 1
	Headphones	Standard stereo phone jack x 1
	Sustain Pedal	Yes
	USB TO DEVICE	Yes
	USB TO HOST	Yes
	OUTPUT	Standard phone jack x 2
	Microphone	Standard phone jack x 1
Amplifiers and Speakers
Amplifiers		6 W + 6 W
Speakers		12 cm x 2
Power Supply
Power Supply		AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
Power Consumption		9 W (When using PA-150 AC adaptor)
Auto Power Off Function		Off/5/10/15/30/60/120 (minutes)
