16 Channel Dugan Automixing card for Digital Mixers and DME

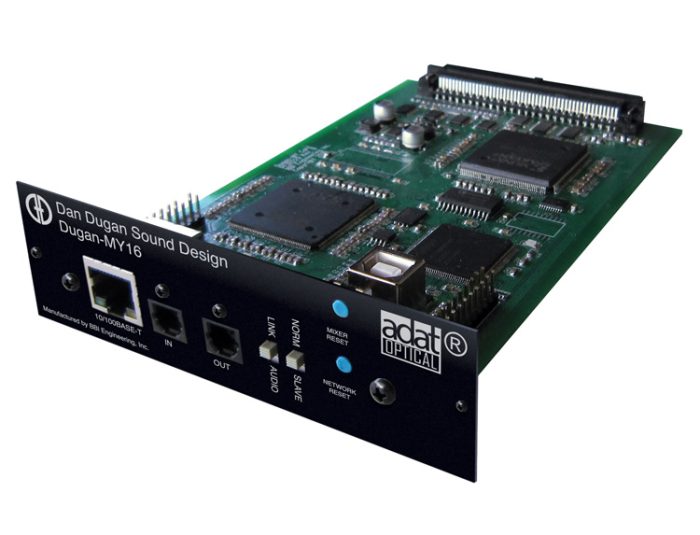

The Dugan-MY16 is a 16-channel automatic mixing controller that plugs into a slot on Yamaha consoles. Sound engineers can now manage multiple live mics without continually riding individual faders. The Dugan-MY16 automatically detects the active mics and makes fast, transparent cross-fades without the distracting sonic artifacts common to noise gates. It tracks unscripted dialogue perfectly and maintains consistent system gain for up to 16 open mics. With the Dugan-MY16, cueing mistakes and late fade-ups are a thing of the past!
- 24bit resolution, 16-in/16-out automatic mixing (8-in/8-out at 96 kHz)

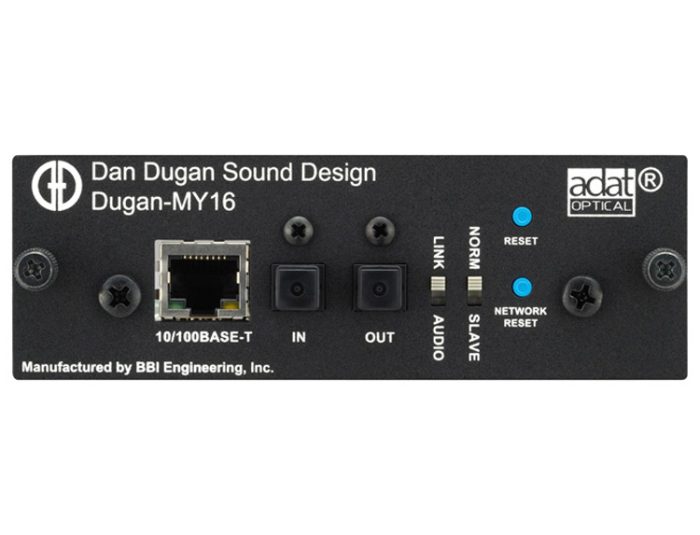

- 2x Optical connectors, 1x RJ-45 connector
- Up to 8 cards can be used simultaneously to handle up to 128 channels at 48 kHz, or 64 channels at 96 kHz
- Automatic detection of active mics with automatic control of individual channel and overall gain
- No speech cutoff due to late fader activation, for smooth, uninterrupted sound
- Effective background noise and feedback suppression without the need for noise-gate type threshold level settings
- Easy setup: simply insert on the appropriate mixer input channels and raise the faders
- Channels can be grouped to make up to three independent automatic mixers
- Dugan Control Panel software application provides remote control and level monitoring capability
- Can also function as an 8-channel auto-mixer + 8-channel ADAT interface
| Operating Modes | Standard: 16 channels of Dugan mixing at 44.1 or 48kHz, ADAT connectors link multiple Dugan units High-rate: 8 channels of Dugan mixing at 88.2 or 96kHz sample rate, ADAT connectors link multiple Dugan units Shared: 8 channels of Dugan mixing and 8 channels of general purpose ADAT I/O |
| Digital I/O | ADAT optical, 24 bit, 44.2/48kHz (Shared mode only) |
| Gain | Unity |
| Audio Latency | 0.2ms |
| Optical Linking | Up to 8 units may be linked in a ring; links with Models D-2, D-3 , E, E-1 and Dugan-MY16 |
| Connectors | 10/100 BASE T: RJ-45 Linking and Digital I/O: ADAT optical |
| Recommended Yamaha Mixers | PM5D/MP5DRH, DSP5D, M7CL, LS9, DM2000, DM1000, 02R96, 01V96, DME64N, DME24N |
| Dimensions | H=4.0cm (1.57”) W=12cm (4.72”) D=17.6cm (6.91”) |
| Weight | 160g (5.6oz) 0.6kg (1lb 5oz) in shipping box |
