DIGITAL MEDIA NETWORKING PERFECTED

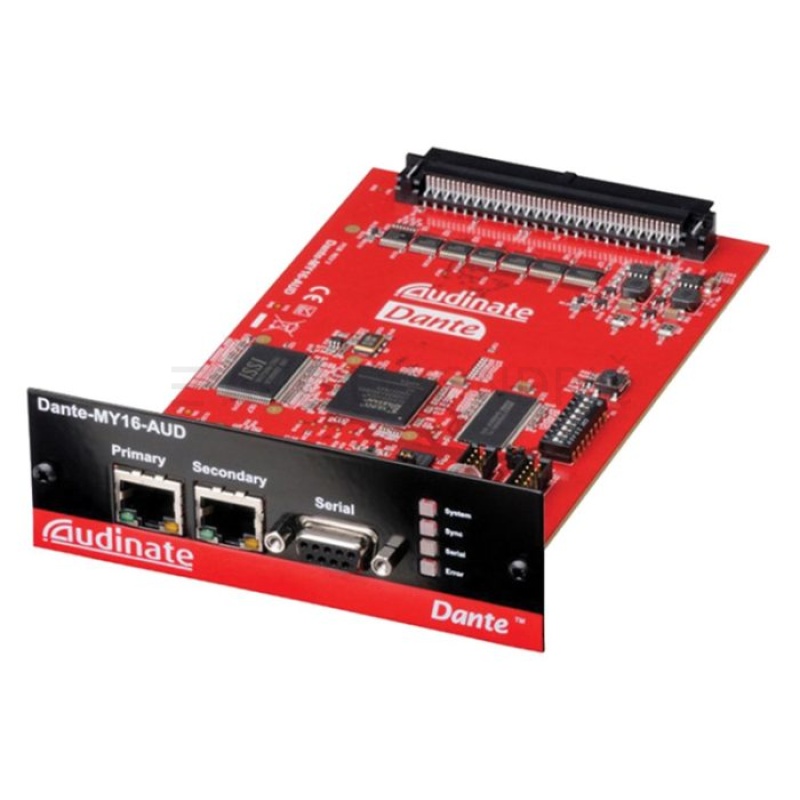

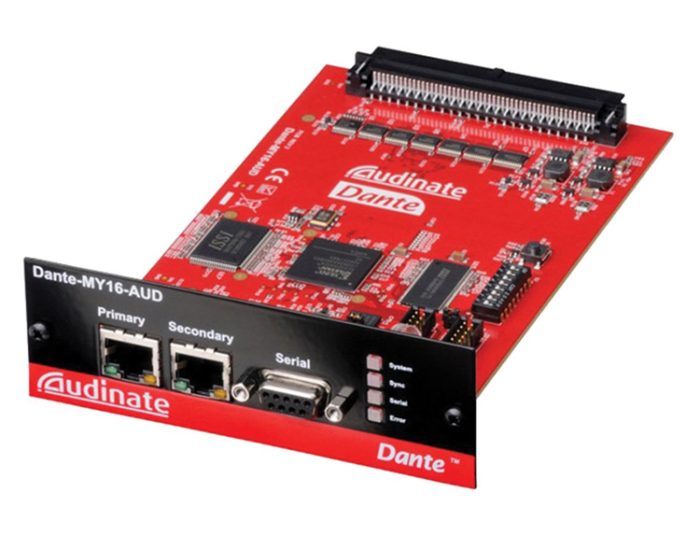

Audinate’s Dante-MY16-AUD card is a fully compatible Yamaha Mini-YGDAI standard card that instantly Dante-enables your Yamaha mixer, processor or power amp. Each Dante-MY16-AUD provides 16 bidirectional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet. Add more cards to add more channels, and connect to other Danteenabled audio equipment and to a PC or Mac running Audinate’s Dante Virtual Soundcard software for a complete audio networking solution. The Dante-MY16-AUD card is exclusively distributed by Yamaha.
- Standard Mini-YGDAI MY16 card
- High-performance hardware implementation
- Supports 48/96 kHz, 24-bit audio
- Dual Gigabit Ethernet interfaces
- Glitch-free Dante audio redundancy support
- High-quality on-board word clock
- External word clock sync
- Expand audio channels using multiple cards
- Interconnect with other Dante-enabled audio equipment
- Connect directly to PC with Dante Virtual Soundcard
| General Specifications | |
|---|---|
| Channel count | 16IN / 16OUT |
| Sampling Frequency | 48kHz and 96kHz |
| Sample bit-depth | 24 bit |
| Network | 2 x Gigabit (1000Mbps; 1Gbps) Ethernet RJ45 connectors |
| Redundancy | Glitch-free Dante audio redundancy using dual Ethernet networks |
| HA Remote | Supported on HA Remote capable Yamaha products |
| Expandable | Install up to four Dante-MY16-AUD cards in available Mini-YGDAI-compatible slots for up to 64 bidirectional audio channels |
| Clock | High quality on-board VCXO clock can provide master clock OR slave off audio equipment; automatic synchronization with Dante network |
