Vgradni zvočnik CIRA8 QuickFit 2-way 8″

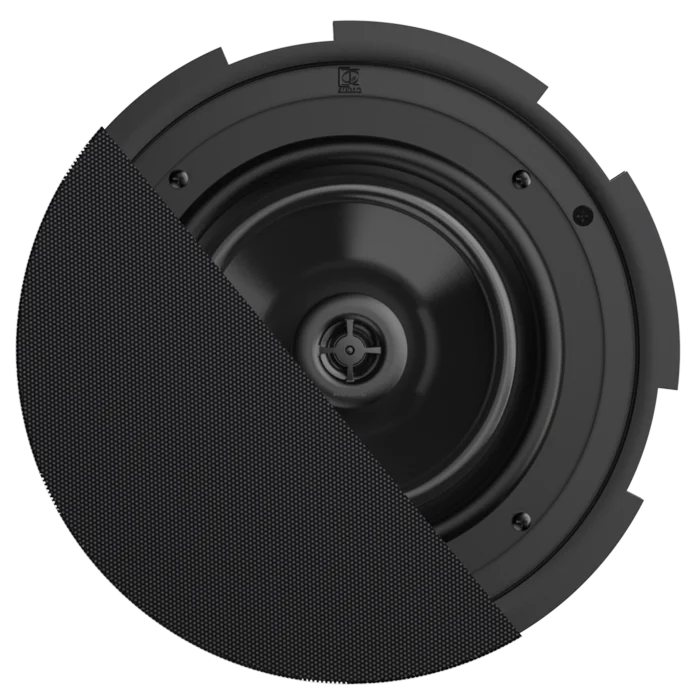

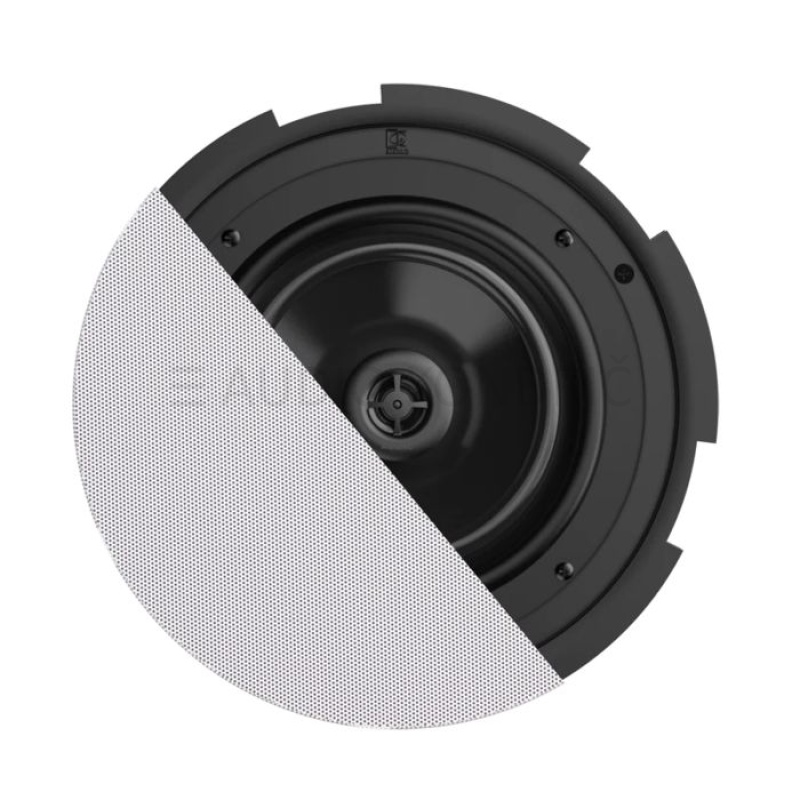

QuickFit™ 2-way 8″ ceiling speaker with TwistFix™ grill

Original price was: €62,00.Current price is: €52,00.


Vgradni zvočnik CIRA8 QuickFit 2-way 8″

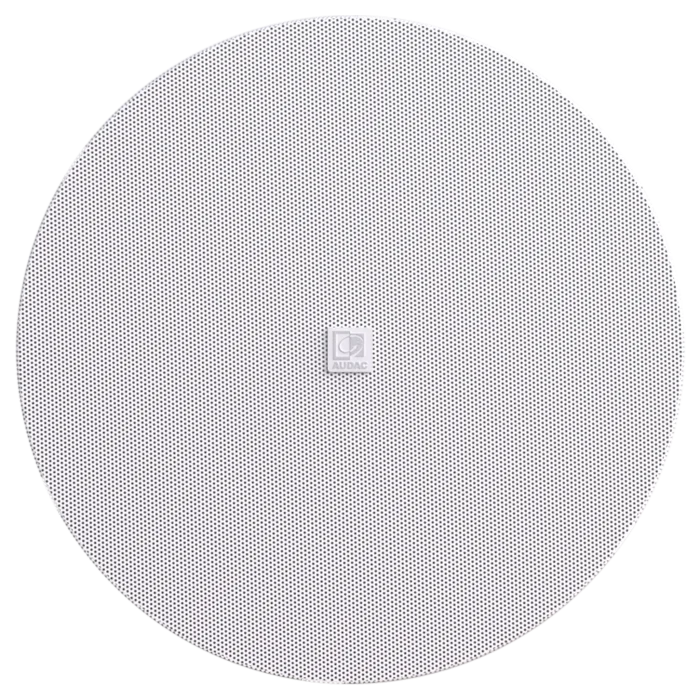

  • TwistFix™ borderless grill design
  • Excellent off axis performance
  • Flat frequency response
  • Consistent sound profile throughout complete family
  • Exceptional intelligbillity and musical performance

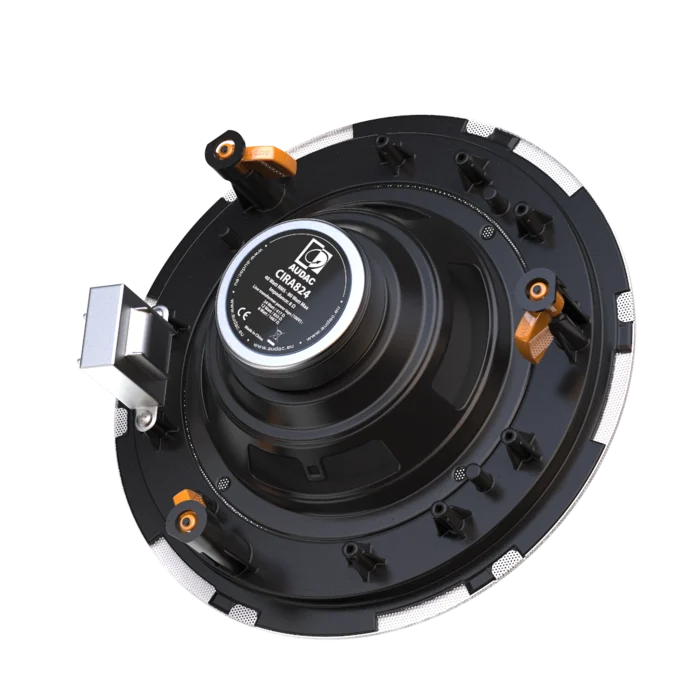

  • Lifetime stability and toolfree installation with unique Quickfit™ innovation

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm & 16 Ohm bypass connection.



System specifications
Peak power handling 160 W
Program power handling 80 W
RMS/AES power handling 40 W
Sound Pressure (Max. W/1m) @ 100 V 105 dB
Sensitivity (1W/1m) 89 dB
Frequency Response (± 3 dB) 40 Hz – 20 kHz
Speaker type 2-way coaxial
Impedance 8 Ω (CIRA824)
16 Ω (CIRA840D)
Frequency Range (-10 dB) 33 Hz – 20 kHz
Dispersion Conical 140°
Connectors Multi-tap Fast-con™ connections
Drivers HF 1”
LF 8”
Line Transformer Tappings 1 24 W – 417 Ω (CIRA824)
2 12 W – 833 Ω (CIRA824)
3 6 W – 1667 Ω (CIRA824)
Product Features
Cut-out measurement 243 mm (Ø)
Dimensions 270 x 82 mm (Ø x D)
Weight 1.65 kg (CIRA840D)
1.75 kg (CIRA824)
Operating temperature -20 °C ~ 60 °C
Construction ABS
Front finish Twist-Fix™ borderless finely perforated steel grill
Built-in depth 82 mm
Mounting QuickFit™ mounting system
Colours White (RAL9003) (CIRA824/W & CIRA840D/W)
