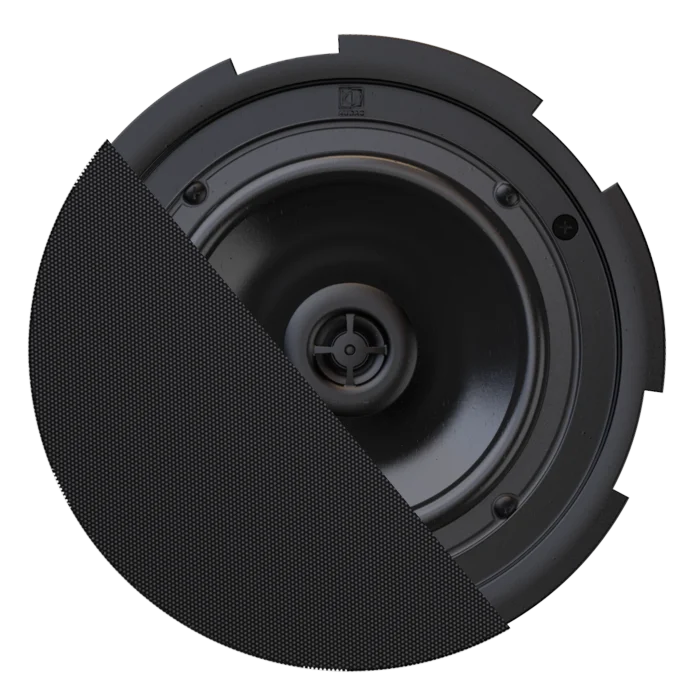

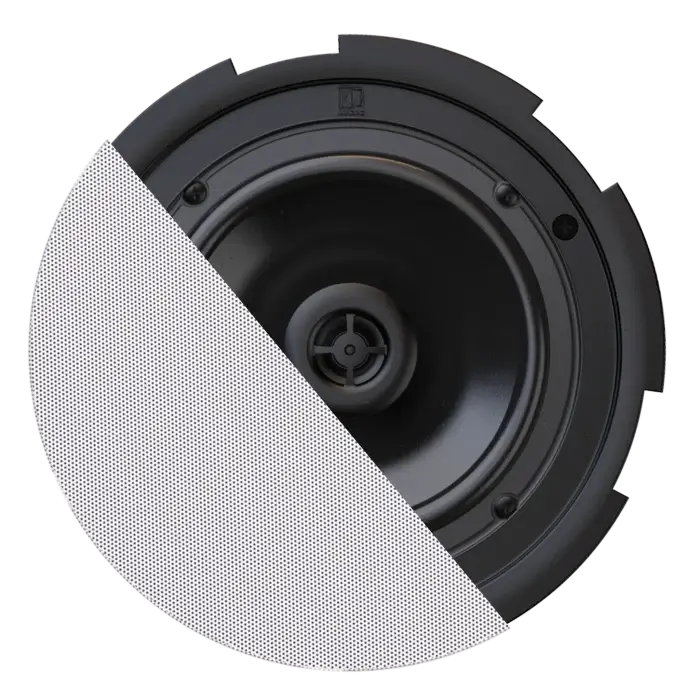

Audac CIRA724I/W, vgradni zvočnik 6,5″ 8ohm/100V, odprtina izreza 200mm

QuickFit™ 2-way 6.5″ ceiling speaker with TwistFix™ grill

Original price was: €109,00.Current price is: €80,00.

Opis

Vgradni zvočnik CIRA724I/W QuickFit™ 2-way 6.5″

  • Exceptional intelligibility and musical performance

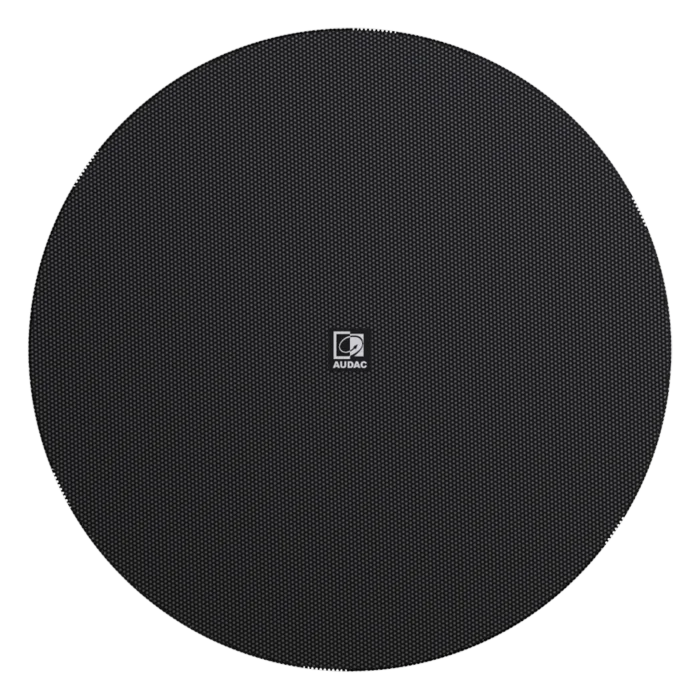

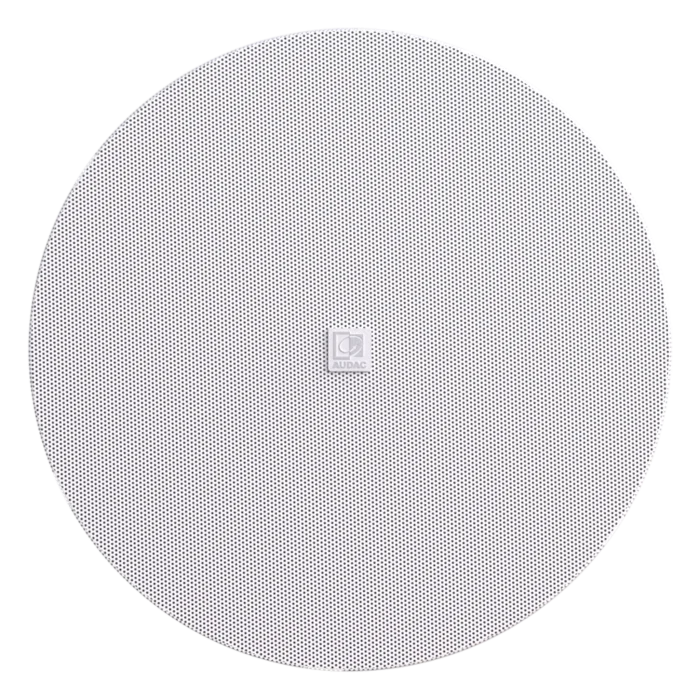

  • TwistFix™ borderless grill design
  • Excellent off axis performance
  • Flat frequency response
  • Consistent sound profile throughout complete family

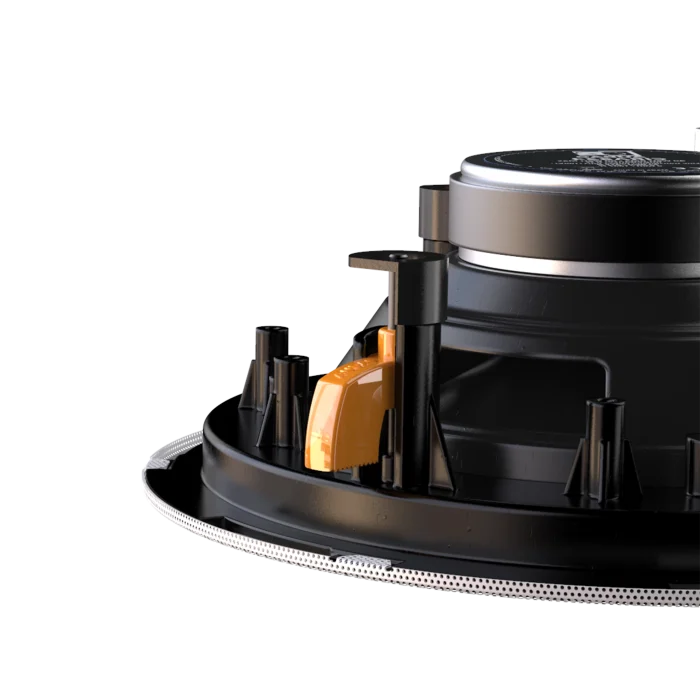

  • Lifetime stability and toolfree installation with unique Quickfit™ innovation

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

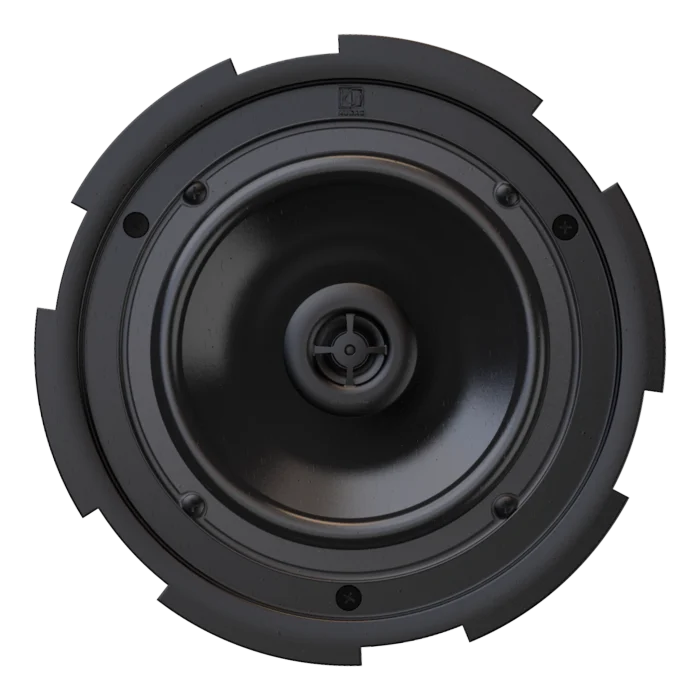

The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.

Specifikacije

System specifications
Peak power handling 120 W
Program power handling 60 W
RMS/AES power handling 30 W
Sound Pressure (Max. W/1m) @ 100 V 103 dB
Sensitivity (1W/1m) 88 dB
Frequency Response (± 3 dB) 55 Hz – 20 kHz
Speaker type 2-way coaxial
Impedance 8 Ω (CIRA724)
16 Ω (CIRA730D)
Frequency Range (-10 dB) 45 Hz – 20 kHz
Dispersion Conical 150°
Connectors Multi-tap Fast-con™ connections
Drivers HF 1”
LF 6.5¼”
Line Transformer Tappings 1 24 W – 417 Ω (CIRA724)
2 12 W – 833 Ω (CIRA724)
3 6 W – 1667 Ω (CIRA724)
Product Features
Cut-out measurement 200 mm (Ø)
Weight 1.45 kg (CIRA724)
1.35 kg (CIRA730D)
Operating temperature -20 °C ~ 60 °C
Construction ABS
Front finish TwistFix™ borderless finely perforated steel grill
Built-in depth 78 mm (CIRA724)
75 mm (CIRA730D)
Mounting QuickFit™ mounting system
Fixture point for safety cable
Colours White (RAL9003) (CIRA724/W& CIRA730D/W)
Dimensions 224 mm (Ø)
