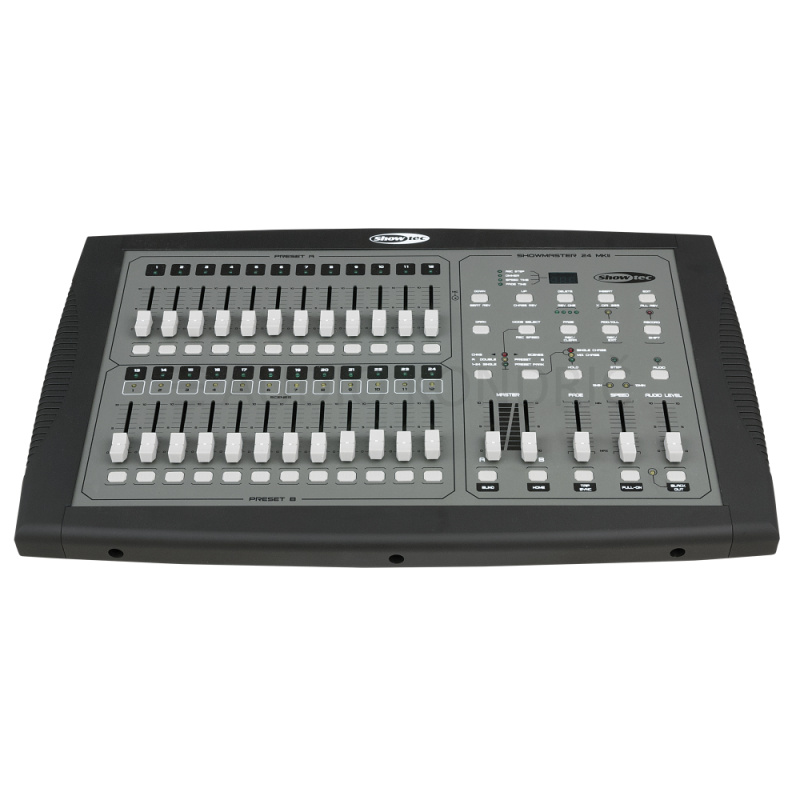

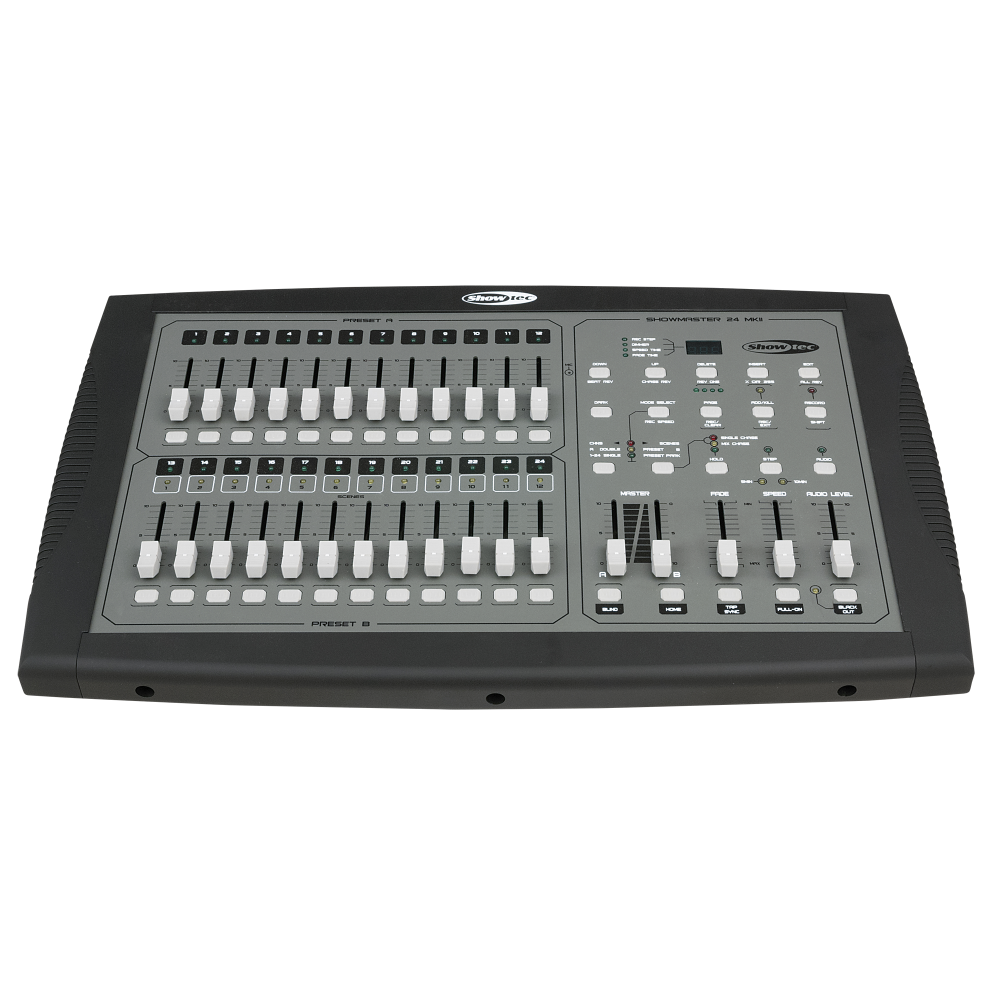

Showtec Showmaster 24 MKII, DMX kontroler, 24 kanalov

24-Channel Light Controller

Omogoča natančno in enostavno upravljanje.

259,00

Opis

Showtec Showmaster 24 MKII, 24-kanalni DMX kontroler

  • 24 multifunctional channel faders
  • Up to 48 Scenes / Chases with max 999 steps
  • Detachable frame
  • Midi In & Out

The Showmaster 24 MKII is a 2-banks 12 fader, 1-bank 24 fader mixing console, it controls DMX and has also the capability to be used with MIDI protocol to allow real-time programs. The Showmaster 24 MKII controls 2x 12 channels (single bank) or 24 channels.

The Showmaster 24 MKII can program 48 scenes or chases of 999 steps or a loop with a total of 11988 steps. Programs can be run automatically or by external or internal music-input. It is also possible to control your lightshow by the built in MIDI-interface to allow a real-time live-show to your music.
Incl. side panels


Showmaster 24 MKII

Dodatne informacije

Control and Programming

  • Control Mode: Manual, MIDI, Sound
  • DMX Channels: 24
  • Buttons: 44
  • Chases: 48
  • Faders: 29
  • Memories: 23976

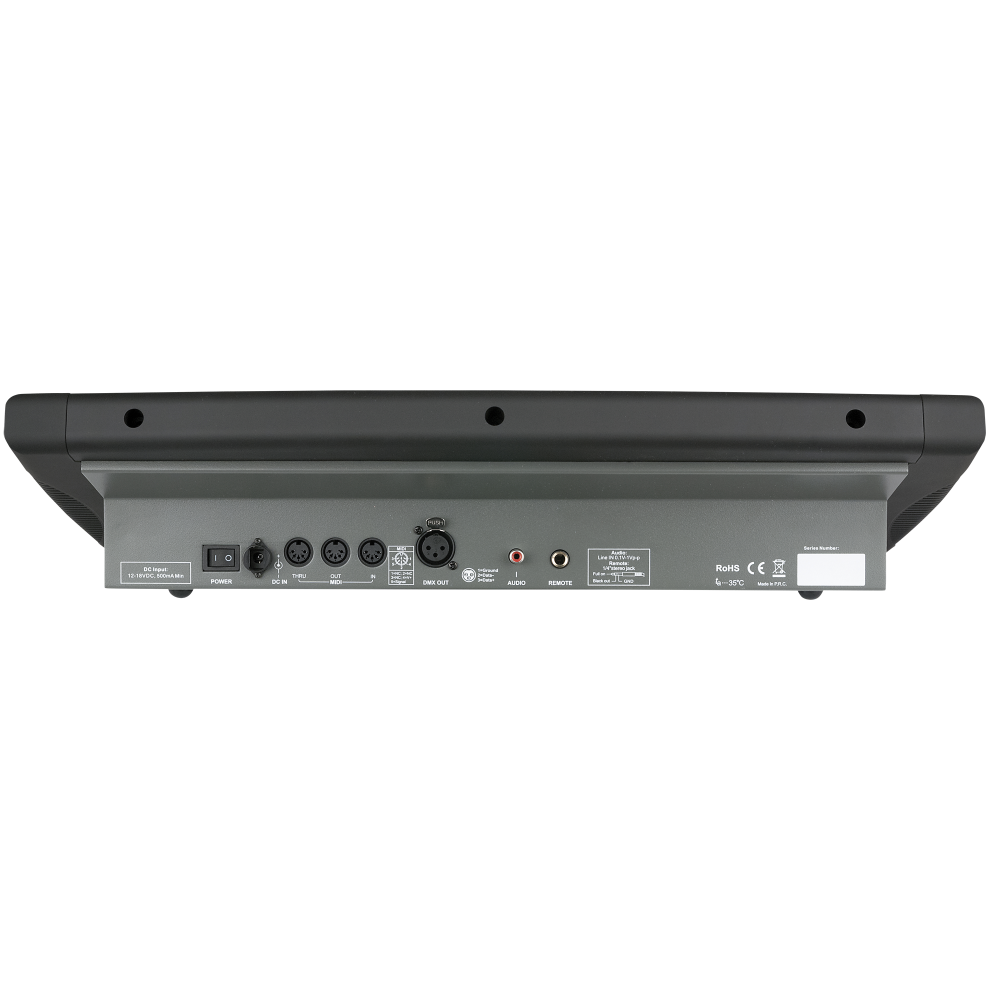

Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz (Power adapter)
  • Output voltage: 12 V DC
  • Power Consumption: 6 W
  • Power Connector In: Low Voltage DC plug
  • DMX Connector Out: XLR 3P
  • MIDI Connector: Yes
  • Audio Triggers: 2
  • Power Adapter:
    • Adapter type: AC-DC adapter
    • Input voltage: 100-240 V AC, 50/60 Hz
    • Output voltage: 12 V DC

Mechanical Specifications

  • Width (mm): 530 mm (20.866″)
  • Depth (mm): 330 mm (12.992″)
  • Height (mm): 150 mm (5.906″)
  • Weight: 4.8 kg (10.582 lb)
  • Rack Units: 6 U
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal, Plastic
  • Colour: Black, Gray

Product Properties

  • LED Indicators: Operation mode, Output level, Signal

Thermal Specifications

  • Maximum Ambient Temperature: 40 °C (104 °F)

Included Items

  • Included Cables: None
  • Included Accessories: Adapter
