Showtec Melodist Mobile, WAV predvajalnik

Showtec Melodist Mobile WAV predvajalnik

Showtec Melodist Mobile je idealna izbira, ko potrebujemo zanesljiv in vsestranski WAV predvajalnik z možnostjo DMX ali direktnega nadzora.

DMX priključek: XLR 5P Vhod/Izhod
DMX priključek vhod: XLR 5P
DMX priključek izhod: XLR 5P
Napajalnik: 12-36 V DC
Poraba energije: 6 W
Rack enote: 1 U
IP ocena: IP20 (za notranjo uporabo)

Tehnični Podatki

Tehnični podatki:

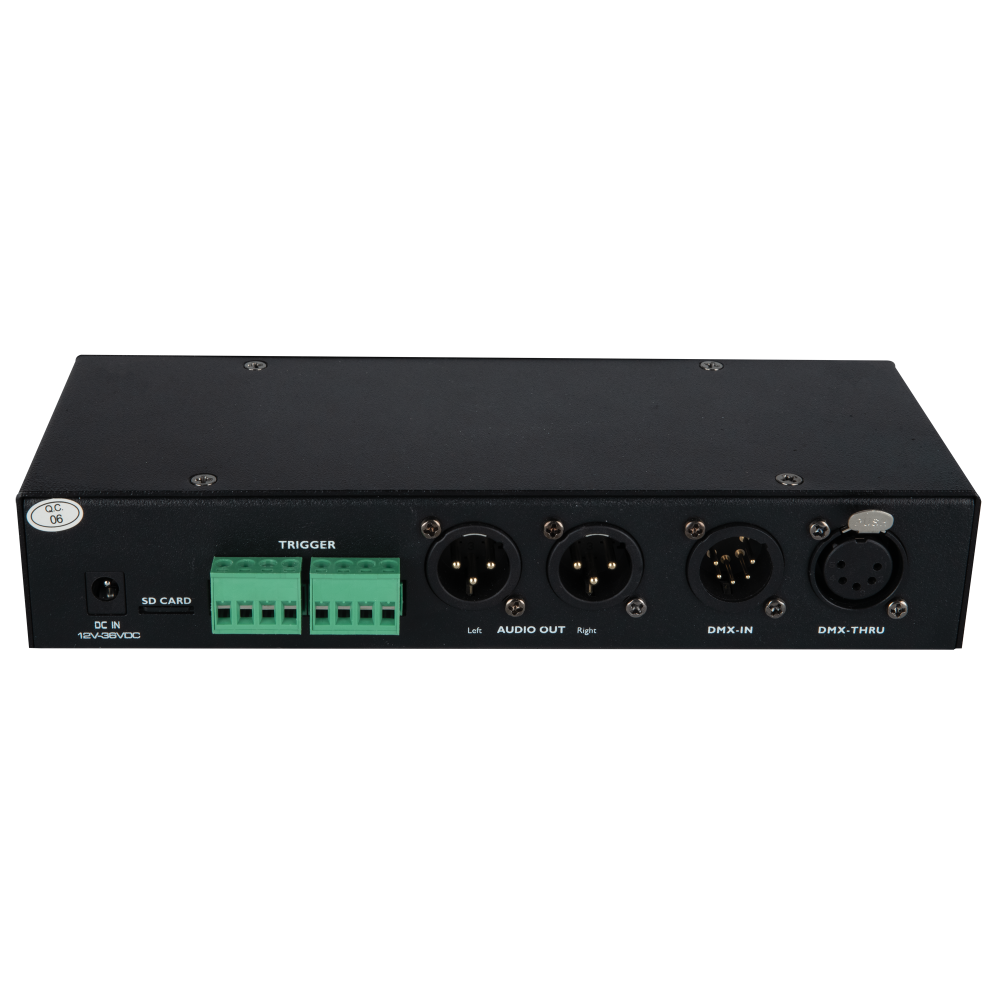

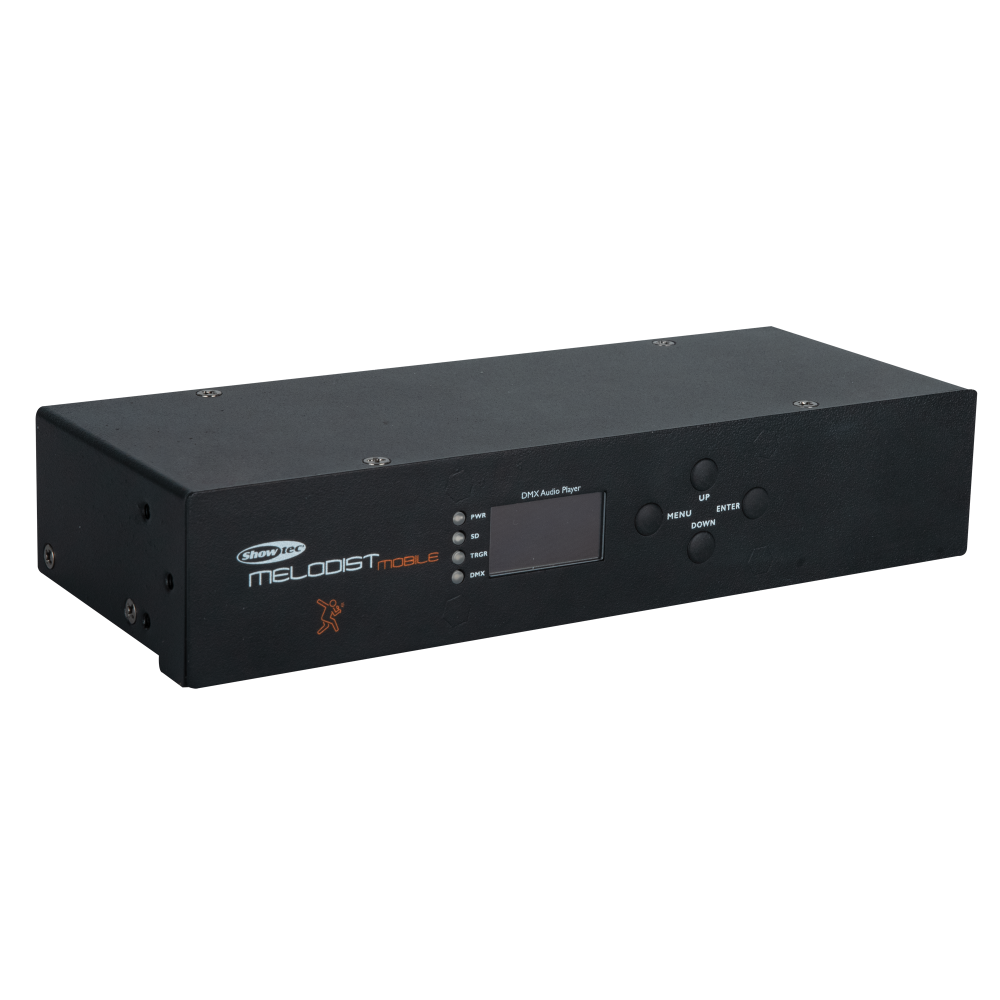

The Showtec Melodist Mobile is a DMX controllable WAV media player in a half 19″ metal housing. It plays stereo WAV files from a micro SD card via two balanced XLR outputs. It has a trigger mode and a player mode. Settings and play modes can be adjusted using the front panel LCD and control buttons. Four status LEDs indicate the status of the player and control signals.
In trigger mode, the Melodist Mobile plays up to 10 WAV files simultaneously, which can be started, paused and stopped via 10 channels of DMX. An additional DMX channel controls the output volume. If no DMX signal is present, the six terminal inputs can be used as triggers to start the first six audio files.
In player mode, it plays one audio file at a time, just like a normal media player. In this mode the terminal input allows control of start/stop/pause, track select, folder select, play mode and volume. Four play modes are available: single continuous, single shot, continuous loop and continuous random.

Power Supply:	12-36 V DC
Power Consumption:	6 W
Power Connector In:	Low Voltage DC plug
DMX Connector:	XLR 5P In/Out
DMX Connector In:	XLR 5P
DMX Connector Out:	XLR 5P
Length (mm):	85 mm
Width (mm):	220 mm
Height (mm):	43 mm
Weight:	0.77 kg
Rack Units:	1 U
IP Rating:	IP20 (indoor use only)
Housing:	Metal
Colour:	Black
Control Mode:	DMX / GPIO
DMX Channels:	5 / 11
Protocols:	DMX
Display:	OLED
