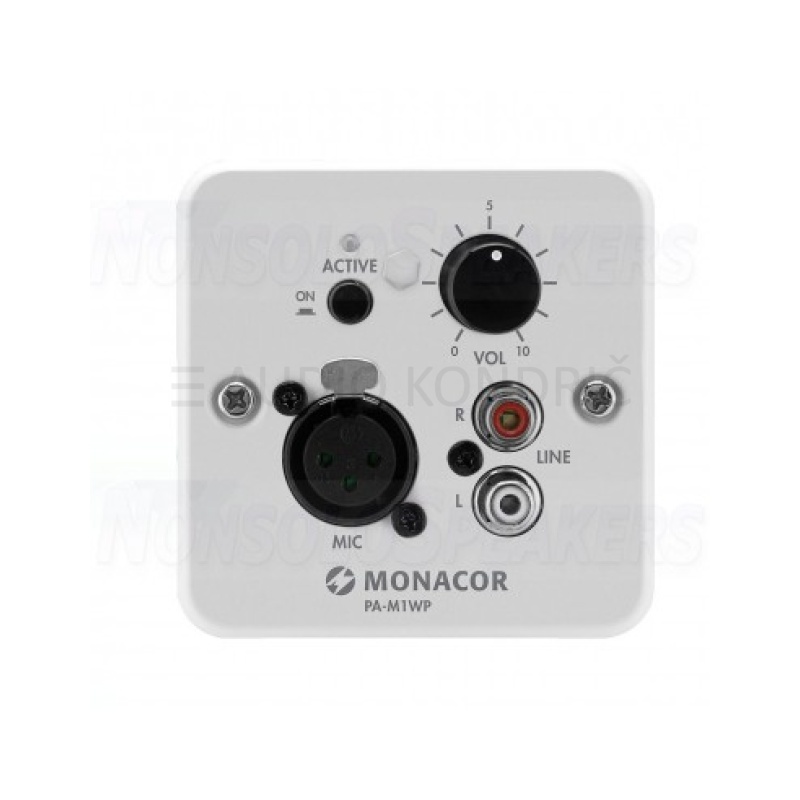

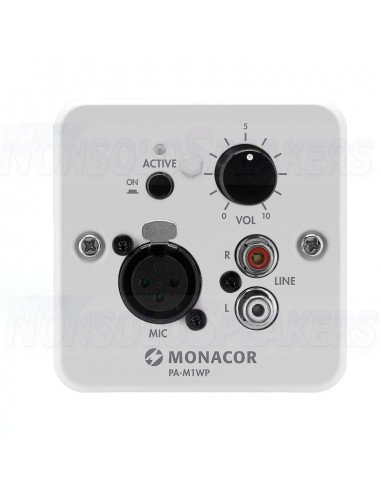

PA-M1WP, Wall module

Wall module, for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.

Šifra: PA-M1WP, 0179300 Kategorija: Oznake: , ,

Opis

Zidna priključna avdio doza  z avdio mikserjem z mikrofonskim vhodom XLR, linijskin vhodom RCA, napajanje iz centrale PA-M412

Intended application: volume control of 1 zone, local insertion of audio signals
2 x RCA jack for line signals
Microphone connection via 3-pole XLR jack
14 V phantom power, to be activated as required
Volume control
Signal selector button with LED indication which allows a priority circuit of locally inserted audio signals (MIC or LINE) in the respective zone
Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
Matching flush-mounted housing ATT-300C is available at option

PAM1WP, 0179300

Navodila za uporabo.PDF

Stran v katalogu
