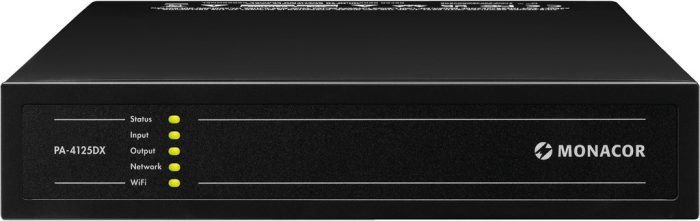

PA-4125DX 4-zonski DSP mešalni ojačevalnik, 4 x 125W

  • 4 x 125 W
  • 100 V ali 4/8 Ω
  • LAN, WLAN
  • upravljanje preko spletnega brskalnika

Opis

4-zone multifunctional mixing amplifier, class D technology with DSP and professional features for general multi-room PA applications.

Clearly arranged graphical user interface HTML5 with extensive functions.

Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

  • 4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
  • 100 V or 4/8 Ω operation
  • 4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
  • 1 digital input/output via S/PDIF RCA jacks
  • 4 zone outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
  • GPIO connection for wall modules, external volume control, external mute switch or power switch, etc.
  • Network connection via LAN or WLAN

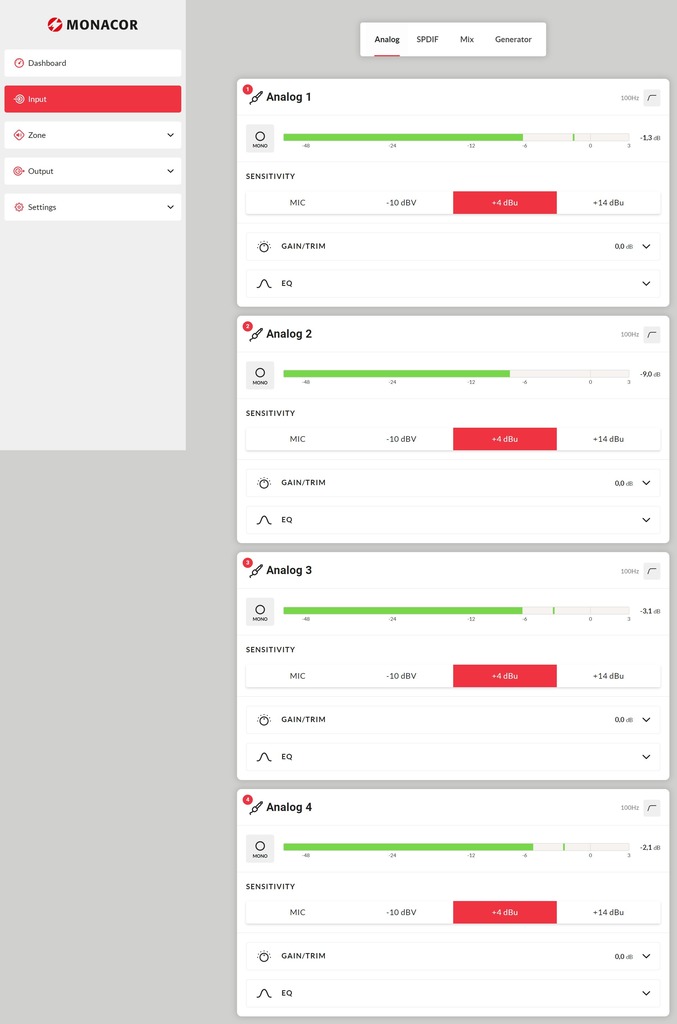

  • Convenient operation and configuration via user interface HTML5
  • Various high pass/low pass filters
  • Parametric equalizer
  • Output with separate FIR filters
  • Speaker matching: 10 ms
  • Switchable output phase
  • Adjustable compressor/limiter
  • Adjustable delay
  • Mix inputs
  • Talkover with priority routing
  • Built-in sine wave noise generator
  • Parametric 5-band equalizer for input
  • Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

Specifikacije

Power rating at 4 Ω 4 x 125 W
Power rating at 8 Ω 4 x 125 W
Power rating at 100 V 2 x 250 W
Channels 5
Zones 4
Inputs 1.2 V, bal. (line), 1.9 mV, bal. (mic)
Integrated limiter yes
Equalizer bass via DSP
Equalizer midrange via DSP
Equalizer treble via DSP
S/N ratio > 106 dB
THD < 0.05%
Power supply ˜ 100-240 V/50-60 Hz/150 W
Mains voltage ~ 100-240 V
Mains frequency 50-60 Hz
Power consumption, operation 150 W, 1/8 output power
Power consumption, standby < 0.5 W
Admiss. ambient temp. 0-40 °C
Width 220 mm
Height 44 mm
Depth 320 mm
Rack units, RU 1
Weight 1.95 kg
Connections 4 x RCA lineplug-in screw terminal (mic/line)

2 x RCA (digital in/out)

plug-in screw terminal GPIO

plug-in screw terminal speakers

1 x RJ45 network connection

Packing dimensions (W x H x L) 0.3 x 0.09 x 0.5 m
Gross weight 2.8 kg
Net weight 2.16 kg
