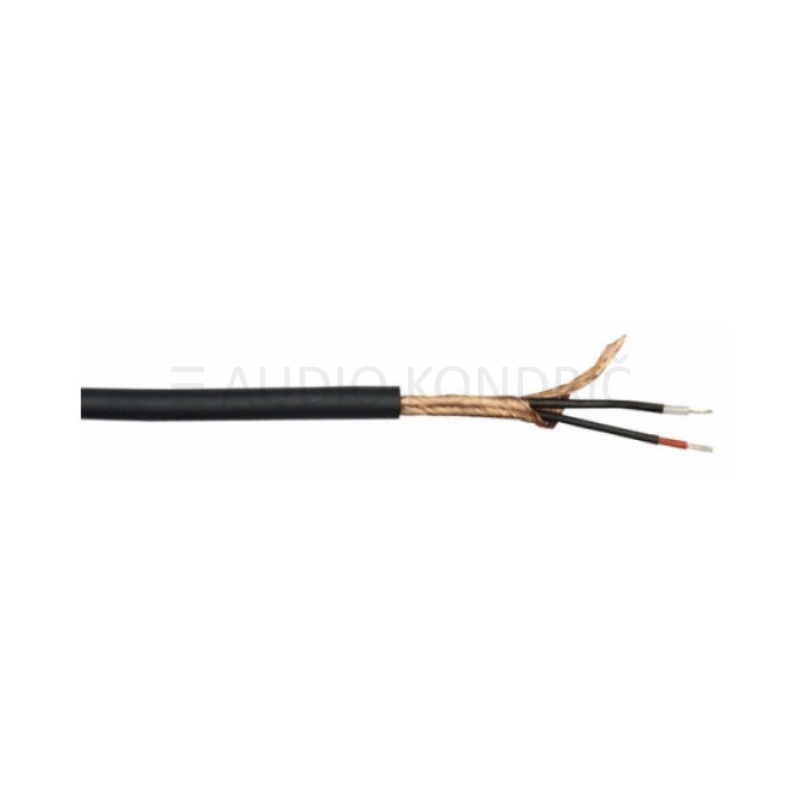

Mirofonski / signalni kabel dvojno oklopljen, MC-226

0,82

CENA VELJA ZA TEKOČI METER

Šifra: D9432B Kategoriji: ,

Opis

Specifikacije

• Conductor drains Ø mm: OFC 15 x 0,12
• Conductor insulation: PE red+white
• Conductor insulation: 1,5 (Ø in mm)
• Filler material: –
• 1st shield: 2 x Conductive plastic
• 2nd shield: OFC twisted 96 x 0,12
• Outer isolation: PVC black, blue, red,
yellow, green
• Outer isolation Ø in mm: 6

Conductor resistance: 90 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield
/ Inner conduct.: 78 pF/m
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
