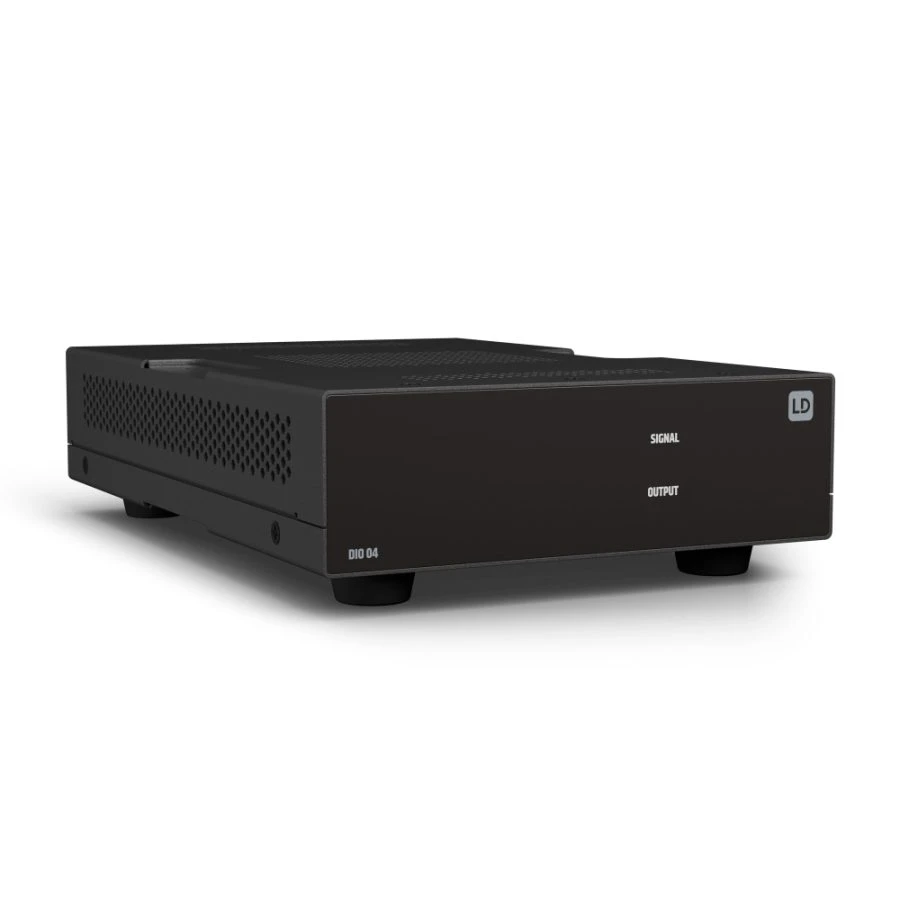

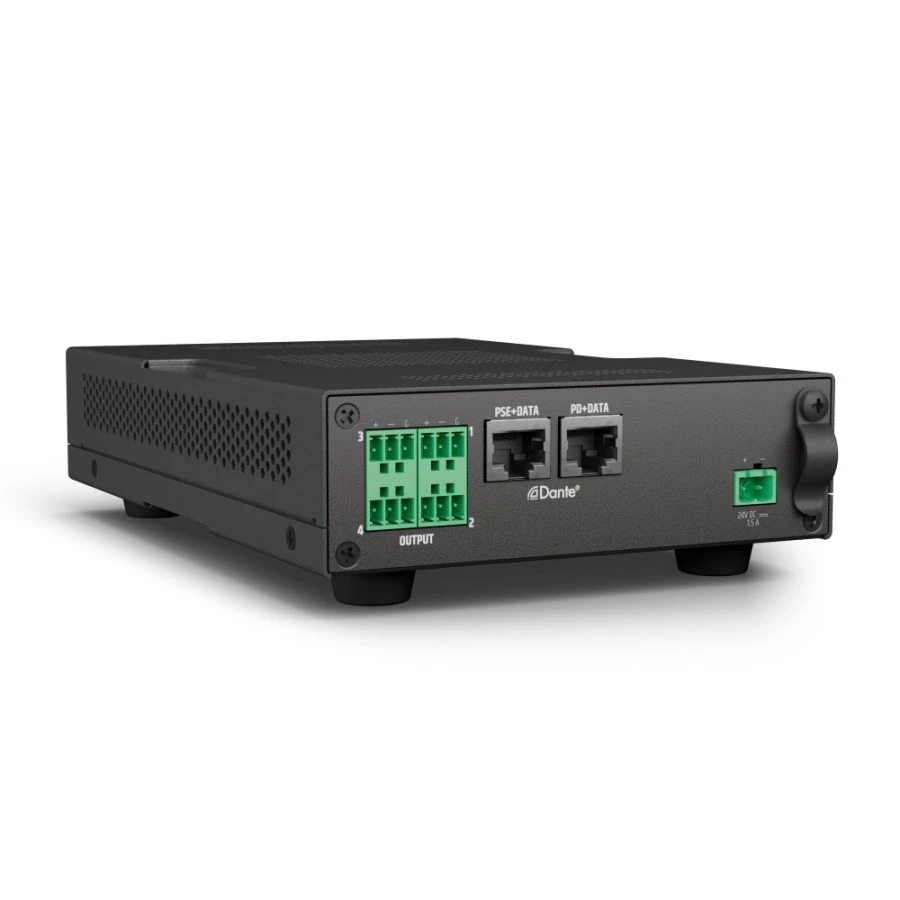

LD Systems DIO 04 4 output Dante interface

Del serije TICA® je DIO 04 vmesnik Dante s štirimi izhodi, ki zagotavlja zmogljivosti, ki jih avdio in AV profesionalci resnično potrebujejo.

Opremljen s štirimi uravnoteženimi izhodi za povezavo s katero koli analogno avdio napravo, kot so ojačevalniki moči.

Cena na zahtevo

Več informacij: Tel.: 02 / 776 10 51  ali e-mail:


LD Systems DIO 04 4 output Dante interface

  • Four output Dante interface
  • Connect Dante to line level audio equipment
  • Terminal blocks for all analogue connections
  • Signal indicators on each channel
  • Use PoE or an external power supply
  • Use as a PoE injector to power another networked device
  • Daisy-chain Dante devices together


Part of the TICA® series, the DIO 04 is a four output Dante interface that delivers the capabilities that audio and AV professionals really need. Equipped with four balanced outputs to connect to any analogue audio device such as power amplifiers. Signal presence lights on each channel speed installation and fault-finding.

Power from any PoE+ network switch or use the optional, external power supply. Since it comes with two Dante networked ports, you can daisy chain devices together. It also works as a PoE+ injector: if you use the external power supply, you can power one further networked device in the chain.

Its tiny form factor (142 x 53 x 221mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into 1/3 19 inch rack. Use the optional rack tray to slot up to three TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

Terminal block connections on the analogue outputs make wiring easy.

The perfect solution for professional installers wanting to interface into Dante equipment.

Dante Domain Manager and AES 67 compliant.

Povezava na uradno spletno stran izdelka. LINK: LD Systems DIO 04 4 output Dante interface
