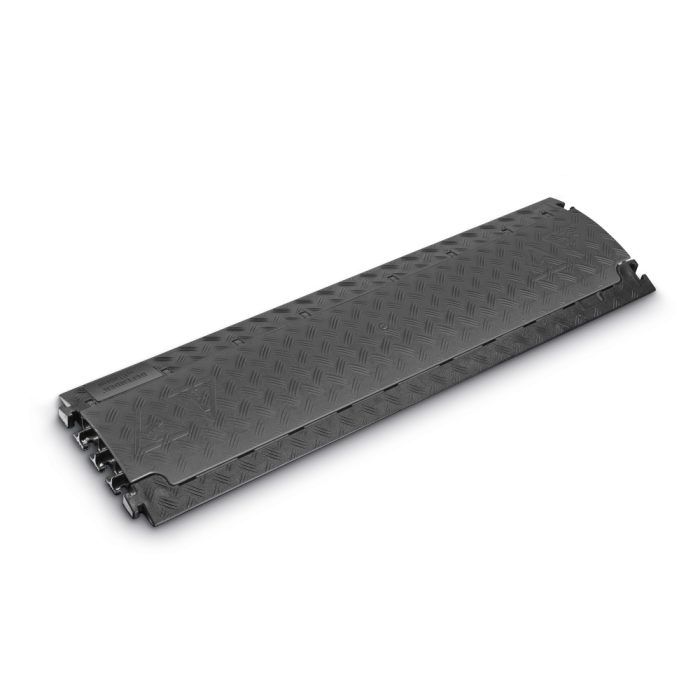

Defender NANO 85150BLK Pohodna zaščita za kable, 6 kanalna

Defender NANO 85150BLK, 6 kanalov, črna.

Zaščita za kable, je lahka, trpežna in enostavna za uporabo.

Garancija 5 let

105,00

Opis

Defender NANO 85150BLK Pohodna zaščita za kable, 6 kanalna, črna

  • Lahkost: Defender NANO je izjemno lahek, zato ga je enostavno prenašati in nameščati.
  • Trpežnost: Defender NANO je izdelan iz trpežnega materiala, ki lahko prenese težo do 2 ton.
  • Enostavna uporaba: Defender NANO je preprost za uporabo, saj ima patentiran mehanizem za zapiranje, ki preprečuje, da bi se kabel zataknil.

6 kanalov: 4 kanali 17 x 18 mm, 2 kanala 17 x 19 mm
Dolžina: 1010 mm
Širina: 285 mm
Višina: 32 mm
Teža: 4,7 Kg

Nosilnost: 2000Kg
TÜV SÜD certifkat

Dodatne Informacije

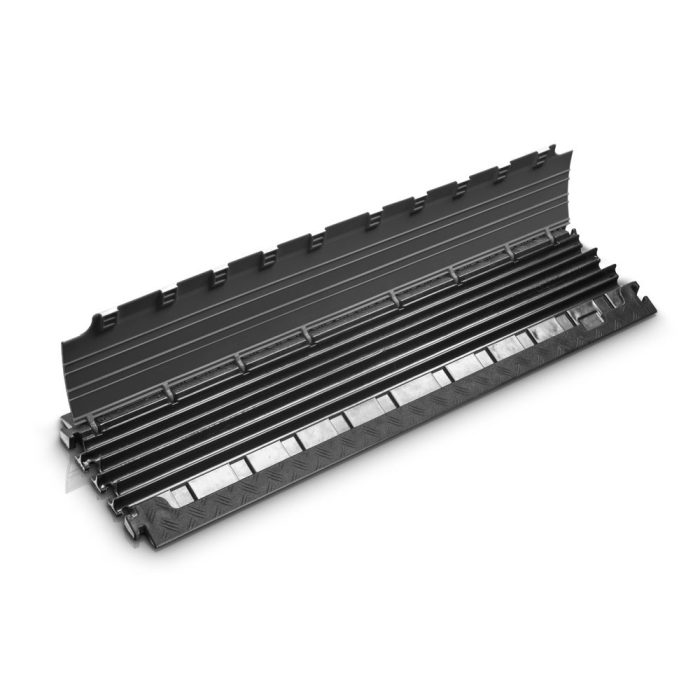

6 narrow cable channels – discreet cable protection for indoor and outdoor use

Defender® NANO cable crossovers are particularly flat and easy to cross with a wheelchair. They are suitable for a wide range of indoor and outdoor applications and are available with either a yellow or black lid. These cable crossovers boast 6 cable channels for neat, orderly cable routing, T-connectors and a load capacity of 2 tonnes on an area of 20 x 20 cm; besides pedestrian traffic, they also take light-duty vehicles, trolleys and – thanks to their flat profile – even forklift and pallet trucks. Separately available end ramps (male/female) ensure safe insertion and removal of cables. Defender NANO cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

    • Especially flat, non-slip cable protector made of black, recyclable polyurethane, wheelchair-compatable
    • Black polyurethane lid with secure closure
    • Patented, self-cleaning lid hinge
    • 6 channels 17 x 18 mm
    • Load bearing capacity approx. 2t / 20 x 20 cm
    • Fire resistance class B2 (DIN 4102)
    • Resistant to oil, acid, petrol and short-term contact with solvents
    • Dimensions 101 x 28.5 x 3.2 cm; Weight 4.8 kg
    • Reliable protection for cables and personnel for indoor and outdoor use
    • Not suitable for vehicular traffic
    • End ramps for secure cable inlet and exit as accessories
    • TÜV SÜD certified

Navodilo za uporabo

Navodilo za uporabo. LINK

Tehnična risba .PDF

Rezervni deli

Seznam dobavljivih rezervnih delov – cene pošljemo po povpraševanju

85299 Yellow Cap for 85200 and 85150

85299BLK Black Cap for 85200 and 85150
