Cameo LEYA 2000 RGB Full diode show laser

Oživite svoje dogodke z diodnimi laserji LEYA RGB.

Ti laserski projektorji na novo definirajo zabavo, od DJ-jev do živahnih zabav.


Cena na zahtevo

Več informacij: Tel.: 02 / 776 10 51  ali e-mail: info@kondric.si

Koda izdelka: CLLLEYA2000RGB Kategoriji: , Oznake: , ,

Opis

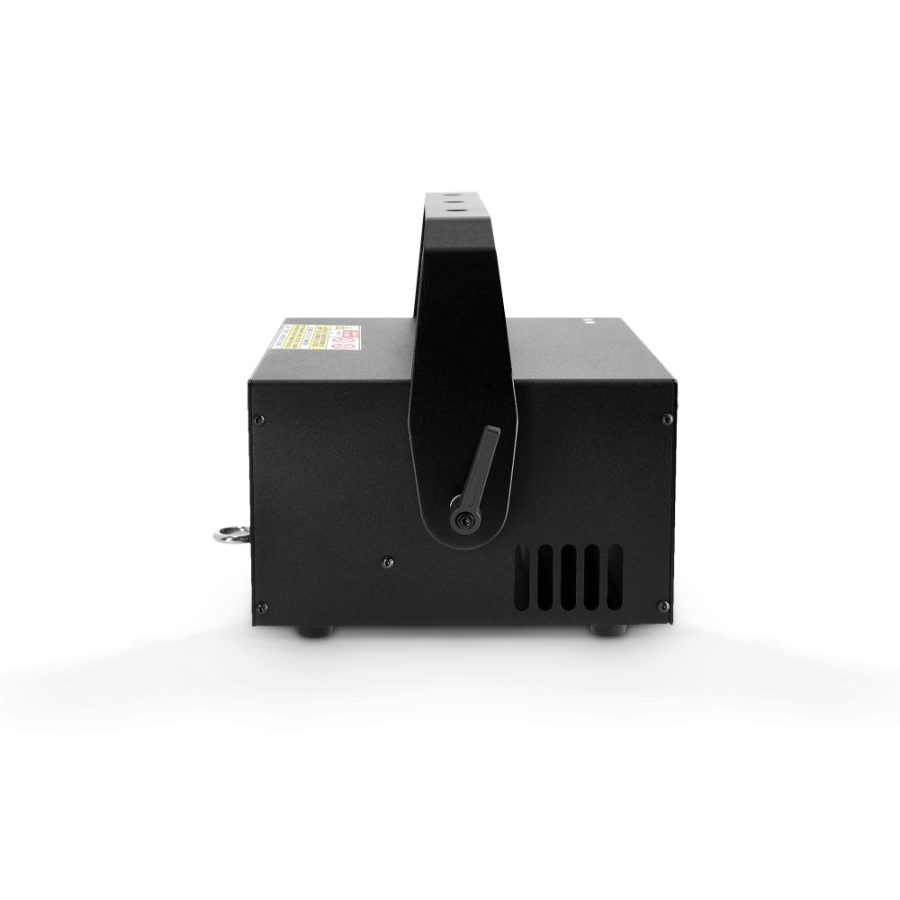

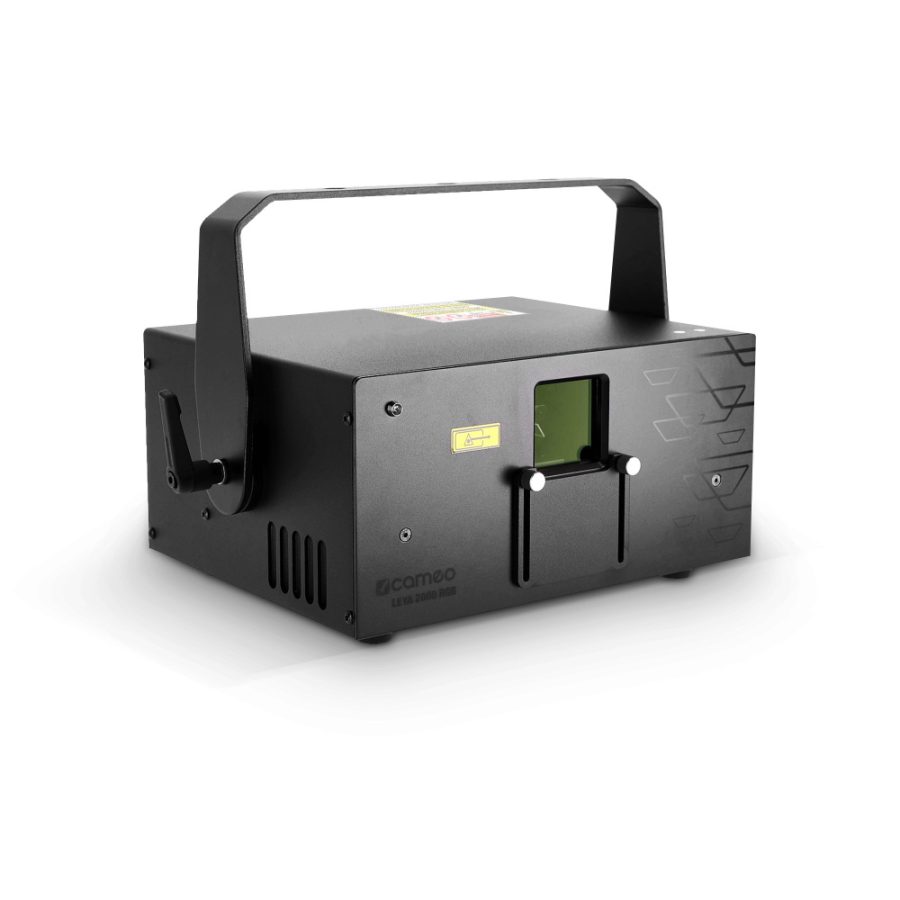

Cameo LEYA 2000 RGB Full diode show laser

  • 2,000 mW total output power (R: 400 mW, G: 600 mW, B: 1000 mW)
  • Dust-proof aluminium housing for minimum maintenance
  • Scan-fail safety system, interlock emergency stop signal
  • 25 Kpps galvo scanner at 8° ILDA
  • Control via ILDA
  • Analogue modulation for up to 16 million colour shades
  • Precise beam with extremely low divergence for razor-sharp projections
  • Neutrik PowerCON power input and output

Tehnični podatki

Photometric values
Laser source type
Laser diode
Total laser power
2,000 mW
Beam size outlet (W x H)
4 mm x 3 mm
Max. divergence
1.1 mrad
Colours
Laser colors
RGB
Color control
Analog modulation
Laser power red
400 mW
Laser power green
600 mW
Laser power blue
1,000 mW
Movement
Max. scan angle
40 °
Drive
High-speed galvo
Scan speed (8° ILDA)
25 kpps
Control
Operating modes
ILDA
Data in connector
D Sub 25 male, XLR 3-pole male
Data out connector
D Sub 25 female, XLR 3-pole female
Mains operation
Operation voltage
100 V AC – 230 V AC/50 – 60 Hz
Rated power
75 W
Mains connector
Mains socket male power in
Power out
Mains socket male power out
Housing
Chassis material
Aluminium
Colour
Black
Environmental
Protection class
IP20
Temperature range
10 – 40 °C
Laser class
4
Dimensions & weight
Width
192 mm
Height
114 mm
Depth
238 mm
Weight
4.2 kg
