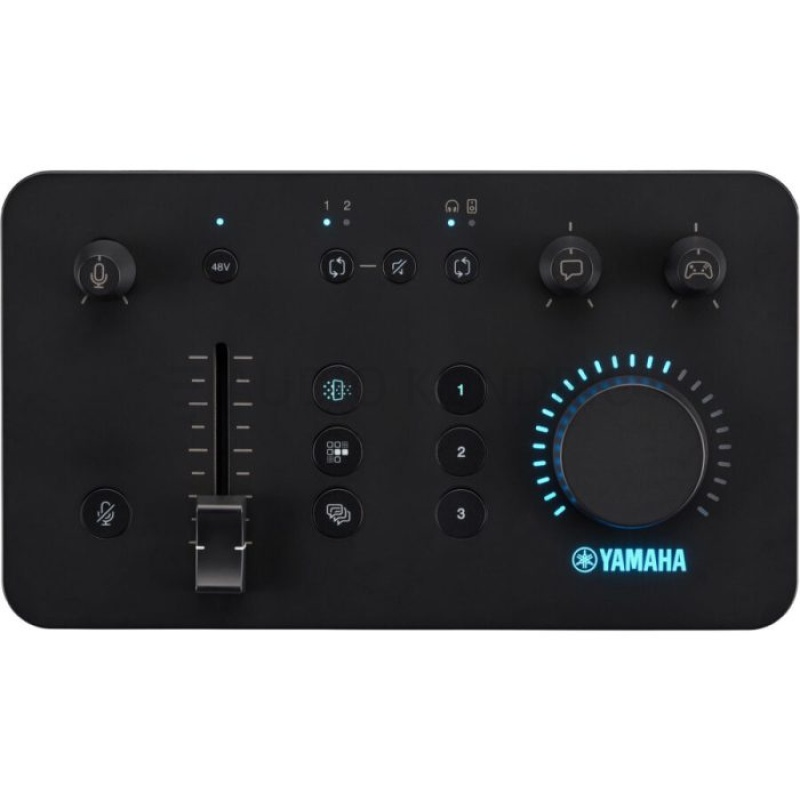

Yamaha ZG01, USB AUDIO INTERFACE

24-bit / 48kHz
namenski gonilnik ZG (dodelitev posameznih signalov več odjemalskim aplikacijam)
Učinki DSP/ZG obdelava zvoka (ZG Surround, Focus Mode/EQ, 3D Chat Space, Voice changer, Transiver/Radio Voice Effect)
2x 3 gumbi za učinke glasovnega klepeta in učinke igre
Gumb za izklop zvoka
faderji in regulatorji glasnosti
+48V fantomsko napajanje
1 vhod za mikrofon: XLR/jack 6,3 mm combo
1 vhod za mikrofon slušalk: 3,5 mm mini jack
1 izhod za zvočnike: 3,5 mm mini-jack stereo
1 izhod za slušalke: 3,5 mm stereo mini jack
1x 4-polni mini TRRS vhod/izhod za pametne telefone (podpora za iOS in Android)
3 priključki HDMI: 2x vhod / 1x izhod, 2-kanalni avdio izhod 24 bitov / 48 kHz fiksno, prehod video signala
2 vrata USB-C (1x osebni računalnik, 1x dodatni zunanji napajalnik 5V DC 1,5A – napajalnik ni priložen)
Mere (Š x V x G): 195 x 47,5 x 110 mm
Teža: 0,8 kg
Povezava na uradno spletno stran. LINK

Smo uradni pooblaščeni serviser v garancijskem in izvengarancijskem roku.
Garancija na YAMAHA produkte kupljene v katerikoli trgovini v Sloveniji ali Evropi.

Dodatne Informacije

OutlineInput ChannelsMicrophoneSmartphoneHDMIUSBOutput ChannelsPHONESSmartphoneMONITOR OUTHDMIUSBFunctionsOn-board processorsDSPUSBUSB AudioUSB DC Power inputGeneral specificationsPower requirementsPower consumptionDimensionsWHDNet weightIncluded AccessoriesOthers
ZG01
ZG01
Outline
Input Channels Microphone 1 – Combo (Mic, +48 V phantom power), 3.5 mm (1/8″) mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
Smartphone 1 – 4-pole mini input/output (TRRS)
HDMI 1 – Switchable input HDMI 1 or HDMI 2 by button; Audio input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function
USB 2 – Virtual devices (Voice, Streaming)
Output Channels PHONES 1 – 3.5 mm (1/8″) stereo mini (Headphones or Headset phones)
Smartphone 1 – 4-pole mini input/output (TRRS)
MONITOR OUT 1 – Stereo mini (Speaker out)
HDMI 1 – Audio out: 2ch 24-bit/48kHz fixed, Video signal *1: Pass-through
USB 2 – Virtual devices (Voice, Speaker)
Functions MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)
On-board processors DSP ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller
USB USB Audio Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 – Type-C, 5 V DC, 1.5 A
General specifications
Power requirements 5 V DC, 1.5 A
Power consumption Max. 7.5 W
Dimensions W 195 mm (7.7″)
H 47.5 mm (1.9″)
D 110 mm (4.3″)
Net weight 0.8 kg (1.8 lbs)
Included Accessories USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
Others Operating Temperature: 0 to + 40 ℃
