- 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 frequencies each)
- ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
- Auto-scan
- True diversity system with removable antennas (BNC connection)
- Volume and squelch controls for each channel
- Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED level display for indicating audio level
- XLR output for each channel, bal.
- 6.3 mm output for mixed signal
- 8 V supply voltage for active antennas or antenna amplifier (e.g. TXS-875B) is available
- Robust metal housing
- Supplied with power supply
- 482 mm (19″) rack installation, 1 RU

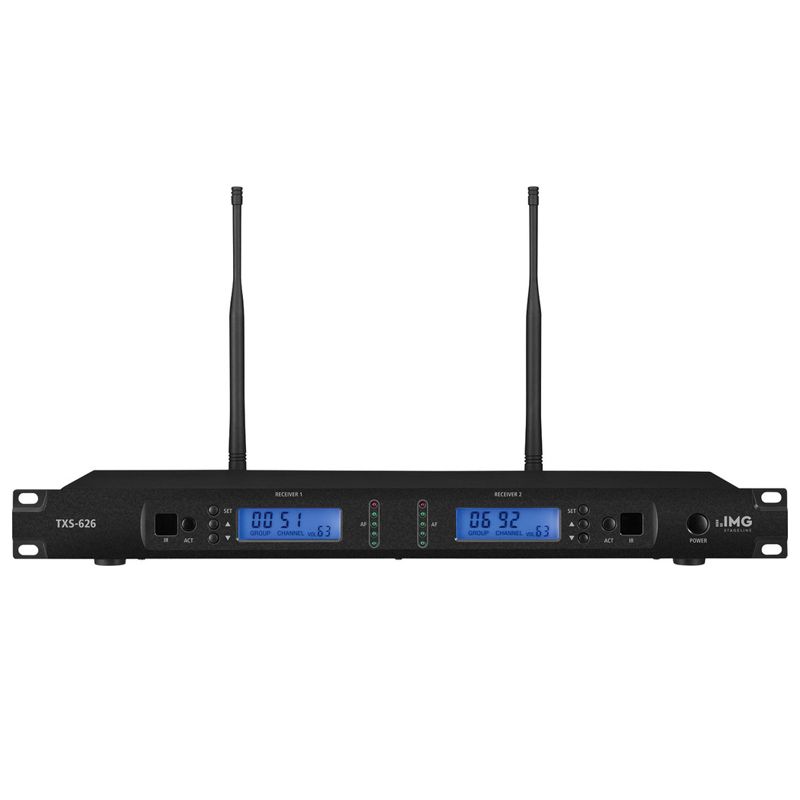

TXS-626 Dvojni sprejemnik, 672.000-696.975 MHz
2-channel multifrequency receiver unit, with UHF PLL technology
- 1.000 izbirnih UHF frekvenc (672.000-696.975 MHz) za vsak kanal (10 skupin po 100 frekvenc)
Šifra izdelka: TXS-626
Potrebujete pomoč pri izbiri?
Na voljo smo vam po e-mailu info@kondric.si.
Dodatne Informacije
Specifikacije
| Description | receiver unit |
| Carrier frequency range | 672.000-696.975 MHz |
| Audio frequency range | 30-18,000 Hz |
| Channels | 2 |
| THD | < 0.5% |
| Dynamic range | 100 dB |
| RF S/N ratio | 105 dB |
| Admiss. ambient temp. | 0-40 °C |
| Audio signal receiver | 350 mV/600 Ω (jack)25 mV/600 Ω (XLR, bal.) |
| Power supply receiver | via encl.plug-in power supply |
| Width receiver | 482 mm |
| Height receiver | 45 mm |
| Depth receiver | 195 mm |
| Weight receiver | 1.8 kg |
| Connections receiver | 2 x XLR, bal.,1 x 6.3 mm jack, unbal. |
