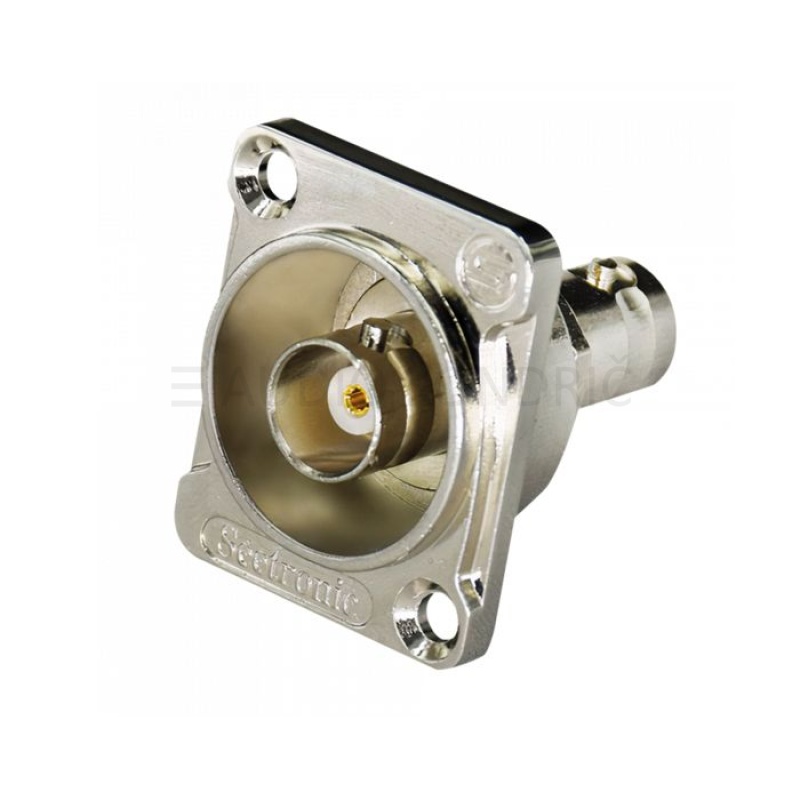

Seetronic BNC Chassis

• Feedthrough type (BNC on front and back)
• Gold-plated centre contact
• Zinc diecast housing with grounded panel mount

This BNC chassis connector fits D-size holes and installs from the front. On the back, this feedthrough connector has a BNC socket that accepts a BNC connector. Its true 75-Ω design meets the stringent HD requirements. It has a zinc diecast shell and uses gold-plated centre contacts.

• Length (mm) 32 mm
• Height (mm) 31 mm
• Width (mm) 26 mm
• Diameter 22.5 mm
• Weight 0.1 kg
• IP Rating IP20 (indoor use only)
• Housing Zinc
• Colour Silver
• Contact Resistance 3 < mΩ
