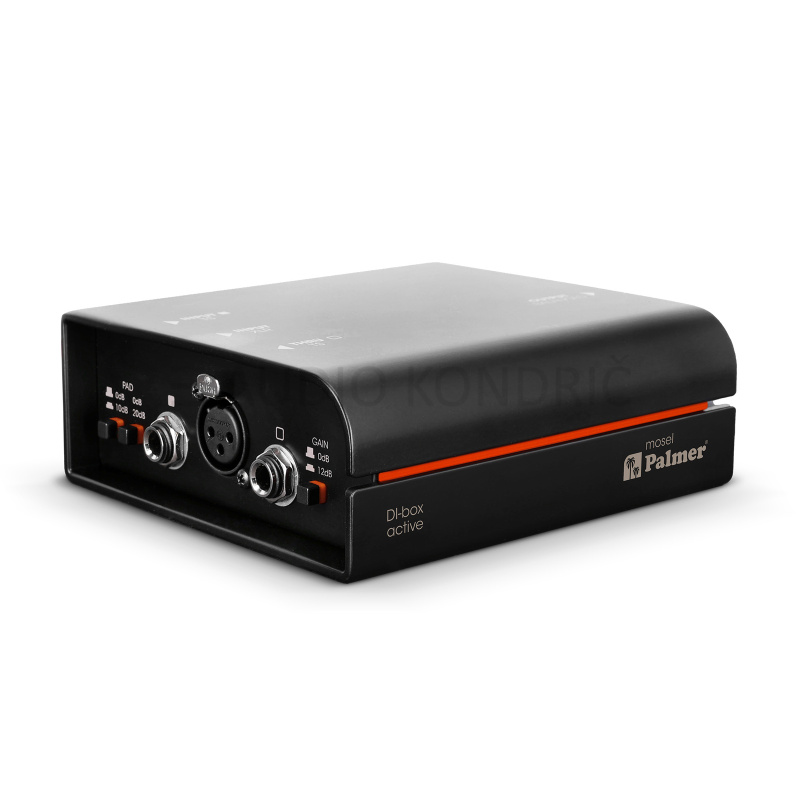

Palmer PAN 02 PRO Aktivni DI Box

Aktivni Di box
1 kanal
2 vhoda
Passivni/Aktivni
Vsebuje transformator in elektroniko
Napajanje 9V baterija , ali 48V phantom
Vhodna impedanca 1 Mohm

Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a “lift” position allowing adjustments between a “soft and hard grounding” . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.

ADAM HALL SERVIS.
Smo uradni pooblaščeni serviser v garancijskem in izven garancijskem roku.
Garancija na: LD Systems, Cameo, Palmer, produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU. Tel: 02 / 776 10 51

Dodatne Informacije

Product type:	DI box
Type:	active
Channels:	1
Inputs:	2
Input connectors:	6.3 mm Jack, XLR
Max. input level:	+ 45 dBu
Input impedance:	0dB & 12 dB: 1 M, -10 & -20 dB: 70 k, -30 dB: 40 k Ohm(s)
Input pad:	0 dB, -10 dB, -20 dB, -30 dB
Outputs:	1
THRU outputs/channel:	1
Output connectors:	XLR, 6.3 mm Jack
Max. output level:	+ 20 dB
Output impedance:	600 Ohm(s)
Frequency response:	20 – 20000 Hz
Transformer balanced:	yes
Ratio:	3.16:1, 10:1, 31.6:1, 1:4
Controls:	attenuator, battery/+ 48 V Power, Boost, ground lift
Operating voltage:	9 V block, +48 V phantom power
Cabinet material:	sheet steel
Cabinet surface:	powder coated
Width:	116 mm
Depth:	140 mm
Height:	43.5 mm
Weight:	0.85 kg
