Palmer ORBIT11 Aktivni studijski monitor White

Active, coaxial 3-way studio monitors for accurate monitoring in demanding production environments. Designed for engineers, producers and musicians who rely on truthful, musical and full-bandwidth reproduction.

ORBIT 11, – ustvarjen za tiste, ki zares poslušajo.

Koaksialni točkovni vir zvoka (6,5″ srednjetonec in 1″ visokotonec)
Impulzno kompenzirana dvojna 8″ nizkotonska enota za natančne base brez resonanc
3-way zasnova za vrhunsko natančnost in jasnost v celotnem frekvenčnem območju
1000 W ojačevalnik razreda D, ki zagotavlja visok dinamični razpon
Kardioidna zasnova za nadzorovano usmerjenost in zmanjšanje odbojev v prostoru
120° × 120° konstantna usmerjenost za enakomerno razpršitev zvoka
FIR filtri za linearno fazo z minimalno zakasnitvijo
Izjemno širok frekvenčni odziv (28 Hz – 28 kHz @ -3 dB)
Napredna zasnova nizkih frekvenc, ki izboljša sklopitev s steno in zmanjšuje akustična izničevanja
Pregledna nadzorna plošča s prednastavitvami za namestitev na mizo ali steno za hitro nastavitev
Visokoločljivostni 96 kHz / 24-bitni DAC in DSP
Analogni in AES3 vhodi za brezhibno integracijo v sistem
Ohišje iz litega aluminija za izjemno nizko resonanco
Na voljo v črni ali beli barvi za vaš osebni slog
#PalmerAudio #PalmerOrbit11 #StudioMonitors #StudijskiMonitorji #KondricCom #ProAudio #AudioProduction #MusicProduction #SloveniaMusic

- Coaxial true point source (6.5″ mid + 1″ tweeter)
- Impulse compensated dual 8″ woofers for tight, resonance-free bass
- True 3-way design for full-range accuracy and clarity
- 1000 W Class-D amplifier delivers high dynamic range
- Cardioid design for controlled directivity and reduced room interaction
- 120° ×120° constant directivity provides uniform coverage
- FIR filters for linear phase with minimal latency

Ultra Wide frequency range (28 Hz–28 kHz @ -3 dB)
Advanced low-end design improves wall coupling and reduces cancellations
Clean control panel with desk & wall presets for efficient setup
High-resolution 96 kHz / 24-bit DAC and DSP
Analog and AES3 inputs for seamless integration
Die-cast aluminium housing for ultra-low resonance
Black or white finish for your individual style

Dodatne Informacije

Type

Active

Peak output power

1,000 W

RMS output power

400 W

Amp class

Class D

Max. SPL peak

116 dB

Frequency response (-3 dB, rel. Avg)

28 – 28,000 Hz

Crossover frequency

250 Hz / 1800 Hz

Beam angle

120° (hor.) / 120° (vert.)

Number of inputs

Number of outputs

Protection features

Limiter, Multiband Limiter, Overheating

Colour

Black

Povezave/ prenosi

Palmer STUDIMON 5

Video

Opis Izdelka

Description

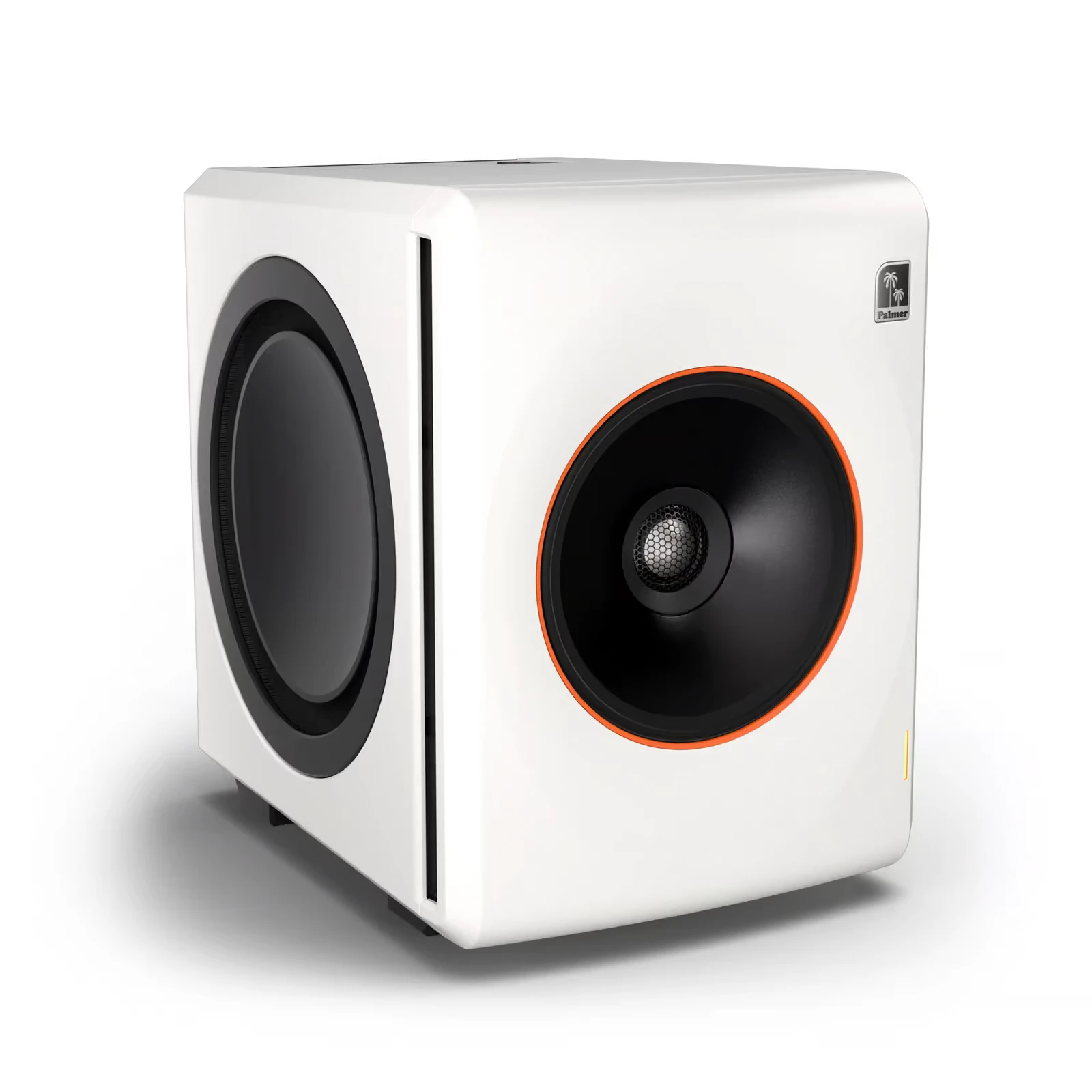

The Palmer ORBIT 11 is an active coaxial 3-way studio monitor designed for mixing, mastering, post-production, sound design, broadcasting, and content creation. Its coaxial True Point Source design combines a 6.5″ midrange driver and a 1″ tweeter on a single acoustic axis and provides consistent 120° × 120° dispersion for stable imaging and reliable balance across the listening area.

The controlled, consistent dispersion pattern helps to maintain reliable balance and translation, while the cardioid front baffle reduces rearward energy to limit room interaction.

Low frequencies are handled by two impulse-compensated 8″ woofers mounted in a sealed, die-cast aluminium enclosure with 5 to 16 mm wall thickness, which is designed to counteract mechanical forces and minimise cabinet vibration, delivering an impressively deep bass response down to 28 Hz.

Internal processing operates at 96 kHz/24-bit with FIR filtering for linear-phase behaviour and time-coherent driver integration.

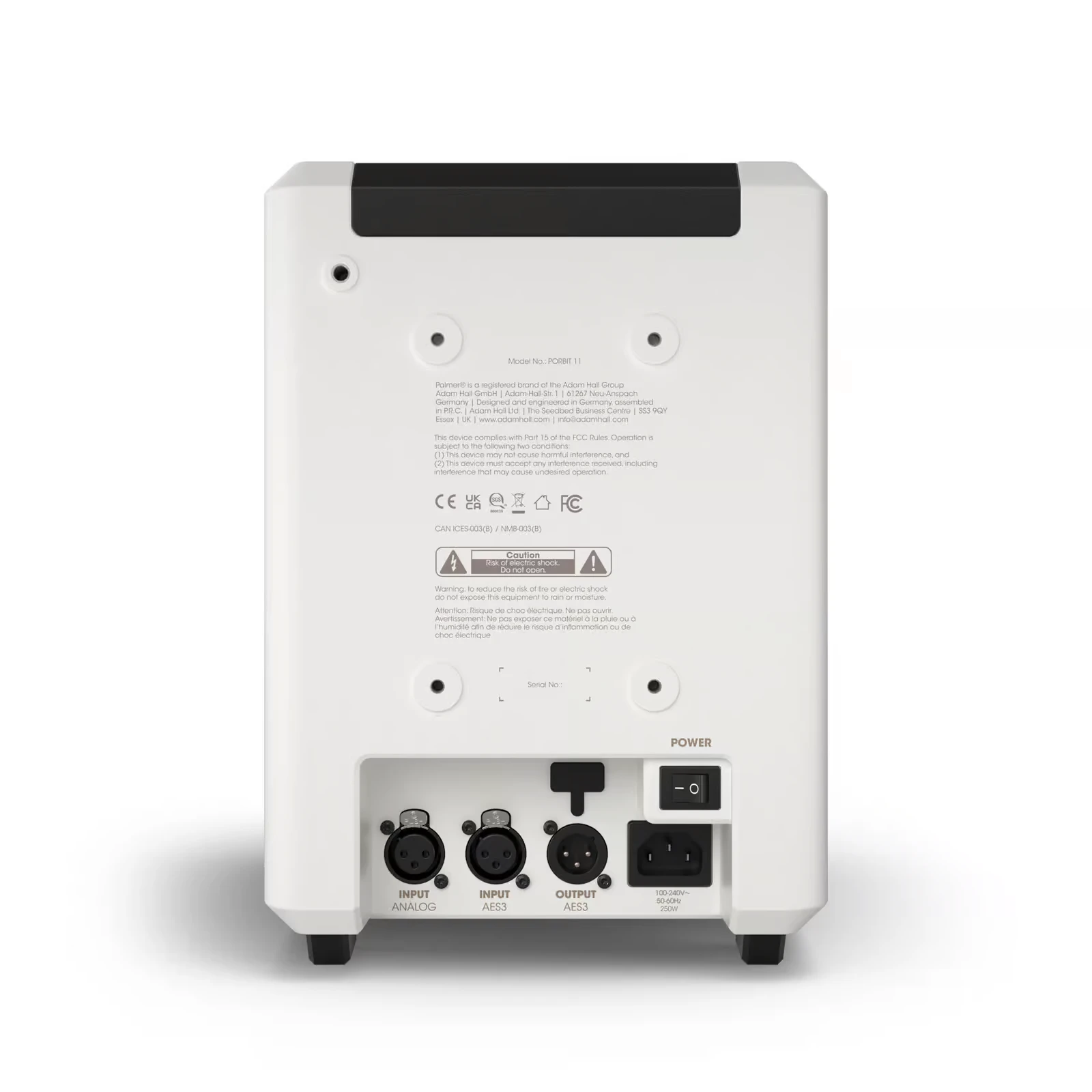

For fast setup, the top-mounted control panel provides direct access to the input pad, 3-band EQ, Desk and Rear Wall presets, and an 80 Hz high-pass filter. Connectivity options include a balanced XLR line input and AES3 via XLR, with an AES3 Thru output for daisy-chaining.

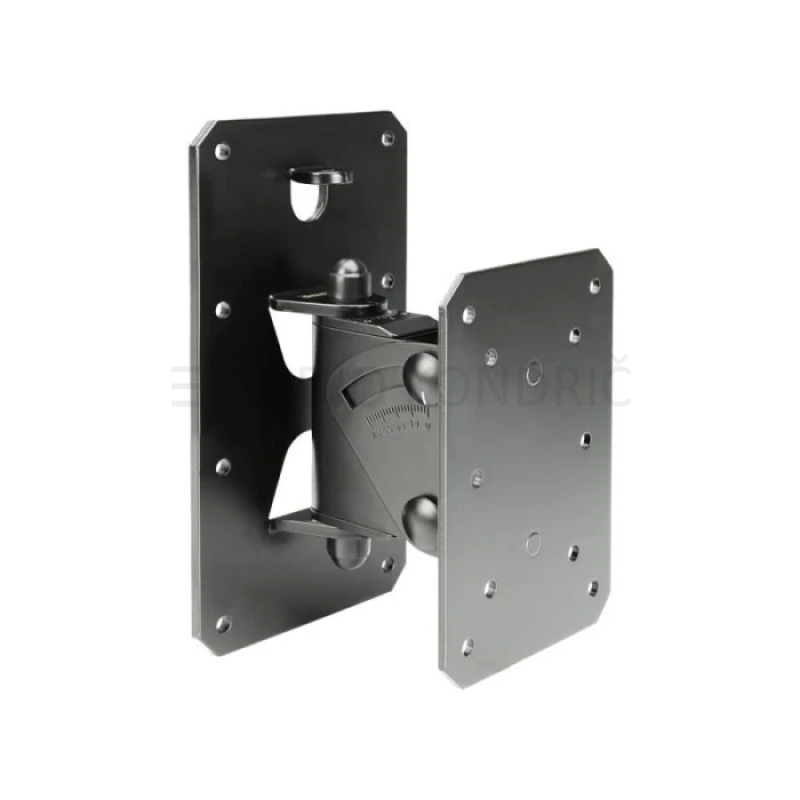

For wall or ceiling installation, the ORBIT 11 features threaded mounting points and an M8 eye-bolt point for safety attachment, and it is compatible with the Gravity Tilt-and-Swivel Mount GSPWMBS20B.

Engineered in Germany with musical sensitivity, the ORBIT 11 is built for reliable monitoring with time-coherent reproduction and extended low-frequency response, made for those who listen.
