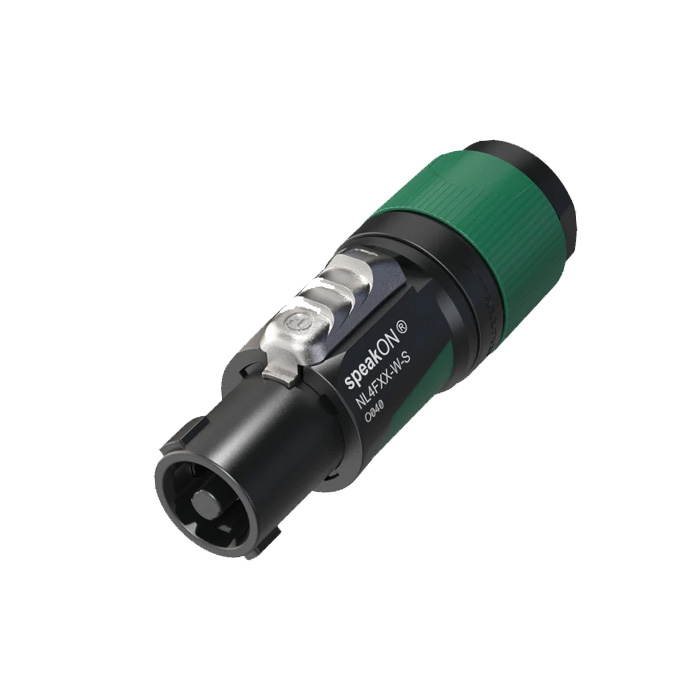

Neutrik NL4FXX-W-S, 4-polni speakon

Neutrik NL4FXX-W-S – Speakon konektor 4 polni zvočniški  konektor priznane kvalitete

5,90
Koda izdelka: NL4FXX-W-S Kategorije: , , Oznake: , , , ,

Opis

Neutrik NL4FXX-W-S, 4-polni speakon

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Neutrik NL4FXX-W-S, 4-polni speakon

Povezava na uradno spletno stran izdelka . LINK



Dodatne Informacije

Features & Benefits

  • Current rating 40 A rms continuous
  • Up to 50 A audio signal, duty cycle 50%
  • Only 3 parts, easy to assemble
  • High impact materials – long-lasting and reliable
  • Easy and extremely precise locking system “Quick Lock”
  • Improved grip on latch
  • 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
  • Color coding possible
  • Improved screw-type termination for highest pull-out force
  • Integrated design guarantees “Made by Neutrik®”

Product

  • Connector Type: Speakon
  • Gender: female

Electrical

  • Contact resistance < 2 mΩ (after lifetime)
  • Dielectric strength 4 kVdc (peak)
  • Insulation resistance > 1 GΩ (after dampheat)
  • Rated current per contact 40 A rms continuous
  • Rated current per contact 50 A audiosignal, duty cycle 50%
  • Rated voltage 250 V (Insulation)

Mechanical

  • Cable O.D. 7 – 14.5 mm
  • Cable retention force ≥ 220 N (subject to cable O.D. and material)
  • Lifetime > 5000 mating cycles
  • Wire size 4 mm² / 6 mm² (screw type terminals/soldering)
  • Wire size 12 AWG / 10 AWG
  • Wiring screw type terminals or soldering
  • Locking device Quick Lock (latch)

Material

  • Bushing Polyamide (PA 6 15% GR) black
  • Contact plating 4 µm Ag
  • Contacts Brass (CuZn39Pb3)
  • Insert PBTP 20 % GR
  • Locking element Zinc diecast (ZnAl4Cu1)
  • Shell PBTP 20 % GR
  • Strain relief Polyacetal (POM)

Environmental

  • Approvals UL,cUL
  • Flammability UL 94 HB
  • Solderability Complies with IEC 68-2-20
  • Temperature range -30 °C to +80 °C
