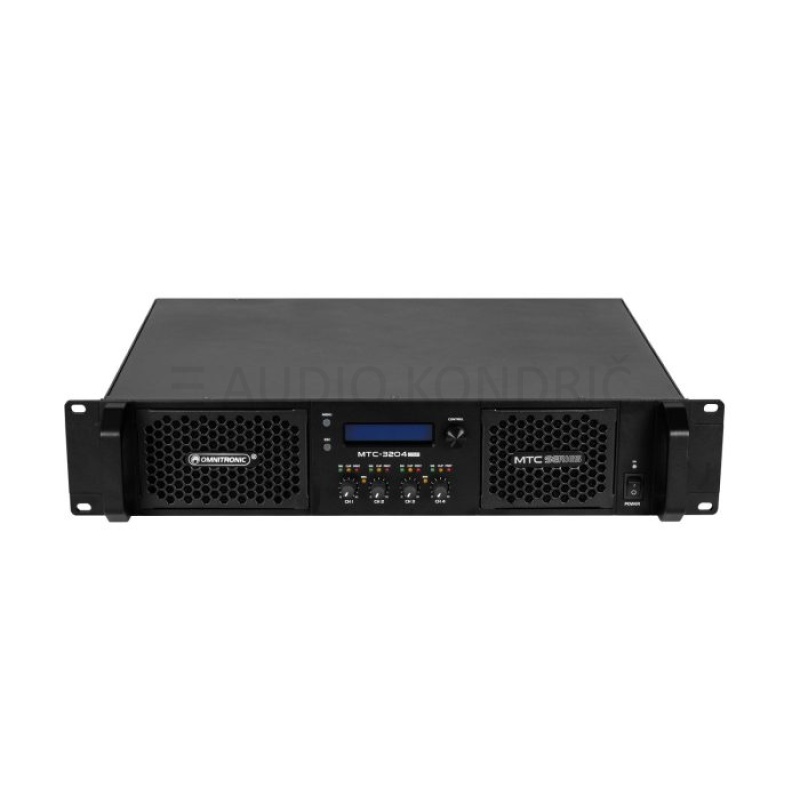

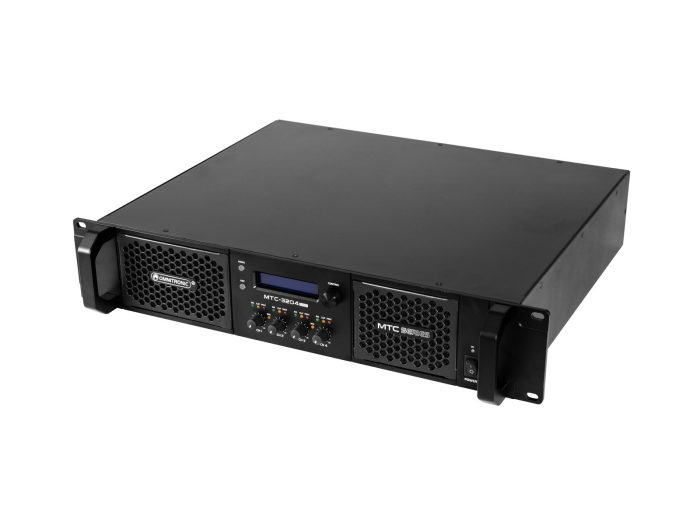

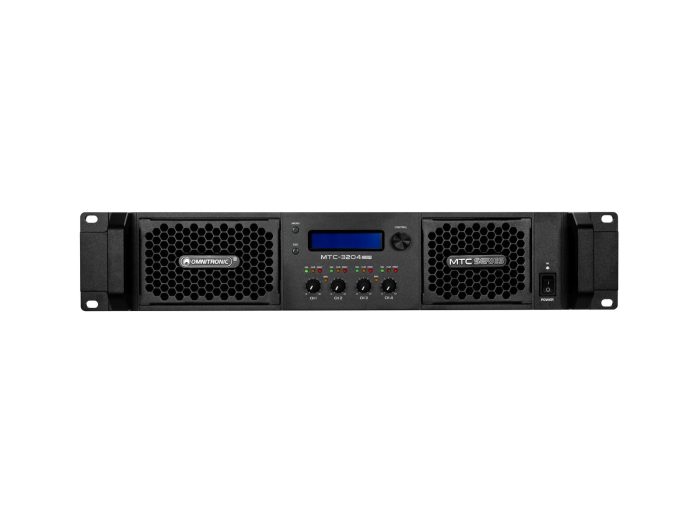

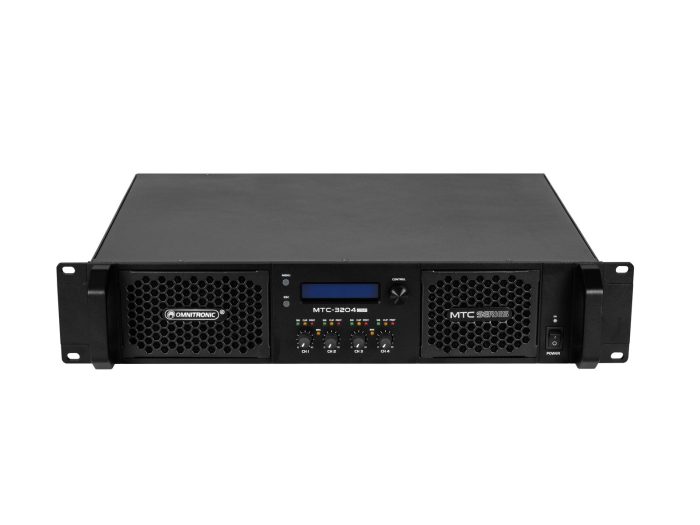

MTC-3204DSP 4-kanalni ojačevalnik, Ohm in 100V

Efficient Class D technology
Full configuration and real-time network communication via the built-in Ethernet interface
The intelligent software for allows convenient control with a computer
Presets are easy to store, transfer and manage
Up to 100 user presets storable in the device via software
Digital signal processor FIR Filter
Sample rate: 96 kHz
2 operating modes can be selected (stereo or bridge/100V)
Extremely low weight and height due to integrated switch mode power supply
Level control per channel
10-band parametric EQ per input and output
Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
LCD display
2 Ethernet ports for easy wiring
The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
firmware can be updated
The device is cooled by temperature-controlled fan
Highly efficient Air flow from front to rear
(19″) 48.3 cm rack installation 2 U
Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms

Dodatne Informacije

Tehnični podatki

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	600 W 1/8 power
Protection class:	Protection class I
Output power:	4 x 800 W RMS (4 ohms); 4 x 400 W RMS (8 ohms); 2 x 1500 W RMS bridged (8 ohms); 4 x 200 W RMS (100 V); 2 x 1500 W RMS bridged (100 V)
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:	1,2 m detachable
Frequency range:	20 – 20000 Hz
S/N ratio:	>119 dB
THD:	<0,05 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version
DSP:	Digital signal processor FIR Filter
Cooling:	1 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Gain:	28,2 dB Bridged 34,2 dB
Filter:	Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt
Delay:	Input: 0 – 2000 ms
Housing color:	Black
Sample rate:	96 kHz
Circuitry:	Class D
Damping factor:	350
Display type:	LCD display
Control elements:	Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu
Controls:	Softstart; overheat; overload; short-circuit; DC voltage
Status LED:	Power, signal, clip, bridged, protect

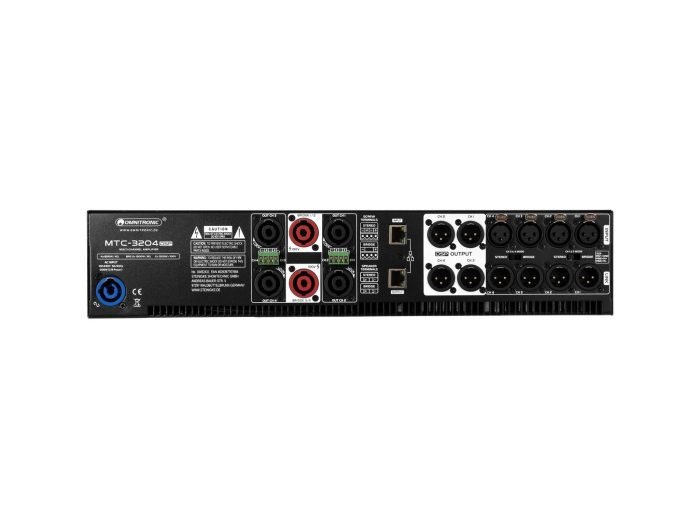

Connections:	Input: line via 4 x 3-pin XLR Link: line via 4 x 3-pin XLR Output: DSP via 4 x 3-pin XLR (F) mounting version Output: speaker via screw plug-in terminal Output: 4 x speaker built-in socket (F) Output: Speaker (bridge) via 2 x speaker built-in socket (F) 2 x RJ-45 (F) mounting version
PC connect:	DXO Software via RJ-45 (F) mounting version, firmware can be updated
Housing design:	(19″) 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 40,8 cm Height: 8,8 cm
Weight:	7,60 kg
Operating system:	Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
