LD Systems U505 BPW, mikrofon za brass in pihala

349,00

Komplet vsebuje:
– LD Systems LDWS1000MW – kardioidni mikrofon (klip mikrofon za Brass instrumente)
– LD Systems LDU505R – brezžični sprejemnik/receiver
– LD Systems LDU505BP – žepni oddajnik

Frekvenčno območje: 584 – 608 MHz

Opis

Wireless Microphone System with Bodypack and Brass Instrument Microphone

Whether you play guitar, bass or a wind instrument, the U500® wireless systems were developed in Germany to bring you affordable professional technology and sound quality. The instrument sets deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500® instrument sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously, and 823 – 832 MHz + 863 – 865 MHz, where six systems can be operated at the same time. The Bodypack’s gain control allows attenuation of up to 27 dB to suit both active and passive guitars and basses or high sound pressure wind instruments, thus ensuring a distortion-free audio signal. Even the lowest bass notes are cleanly transmitted, thanks to the frequency response which extends down to 30 Hz. In addition, output impedance and level are switchable on the receiver to facilitate direct connection to guitar and bass amplifiers.

The U500® True Diversity UHF wireless systems feature an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set-up. High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the Bodypack’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series instrument sets are available in two versions: for wind instruments with a clip-on microphone or for guitars and basses with a double-shielded, low-capacitance cable to protect against interference.

Overview of frequency ranges of instrument sets:

  • U505 // 584 – 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 – 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 – 832 MHz + 863 – 865 MHz // six systems can be used simultaneously

Garancija na: LD Systems, Gravity, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU.
Tel: 02 / 776 10 51

Dodatne Informacije

Dodatne informacije o izdelku

LDU505BPW
Type: true diversity
Transmission frequency range: 584 – 608MHz
Weight: 2.46kg, 0.99kg
LDU505BP – Bodypack transmitter
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 584MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Inputs: Mini-XLR (3-pin)
Frequency response: 30Hz
Signal-to-noise ratio: >90dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: set, 2 x arrow keys (up/down value entry), Power On/Off
Indicators: OLED Display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Width: 65mm
Height: 86mm
Depth: 23mm
Weight: 0.09kg
Other features: IR frequency synchronisation, detachable antenna, switchable RF power, Pilot tone squelch, switchable gain, switchable gain

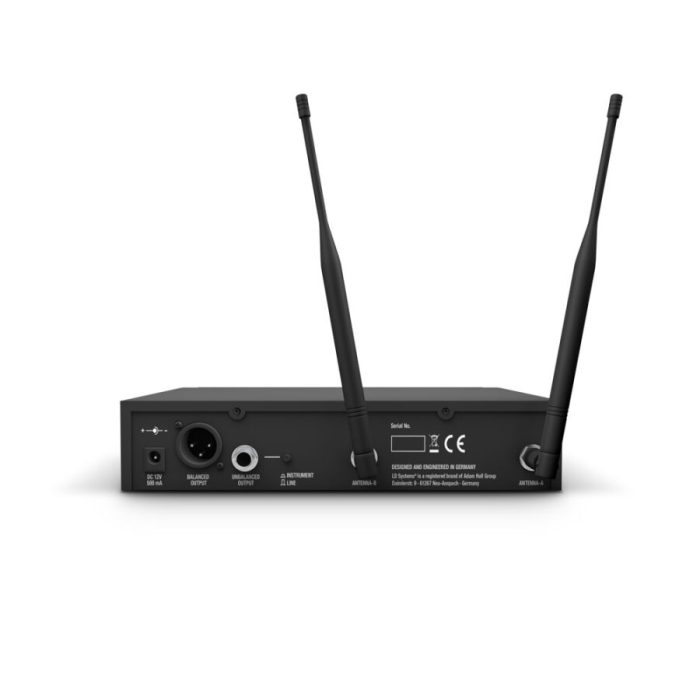

LDU505R – Receiver
Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 584MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30Hz
Noise reduction: squelch
THD: <0.1 %
Signal-to-noise ratio: > 100dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm Jack
Max. output level: +10dBu
Controls: Power On/Off, volume, digital encoder
Indicators: OLED Display
Operating voltage: 12 – 18 V DC, 12 V DC, 500 mA
Width: 212mm
Height: 44mm
Depth: 159mm
Weight: 0.85kg
Accessories (included): 2 x antenna, Audio cable, power adapter
Other features: pilot tone, channel search function, IR frequency synchronisation
LDWS1000MW – Clip Microphone for Brass Instruments
Product type: Wireless Microphone System Accessories
Type: Microphones
Frequency response: 50Hz
Directivity: cardioid
Sensitivity (quiescent voltage @ 1kHz): – 45 dB +/- 3 dB
Nominal impedance: 250Ohm(s)
Max. SPL (1% THD @ 1kHz): 133dB
Phantom power requierements: 5V
Microphone input: mini-XLR (3-pin, female)
Cable length: 1.5m
Accessories (included): Foam windscreen, Phantom power adapter LDPHA (caution: supplied only when ordered separately)
Weight: 0.05kg
Features: 70 mm gooseneck
