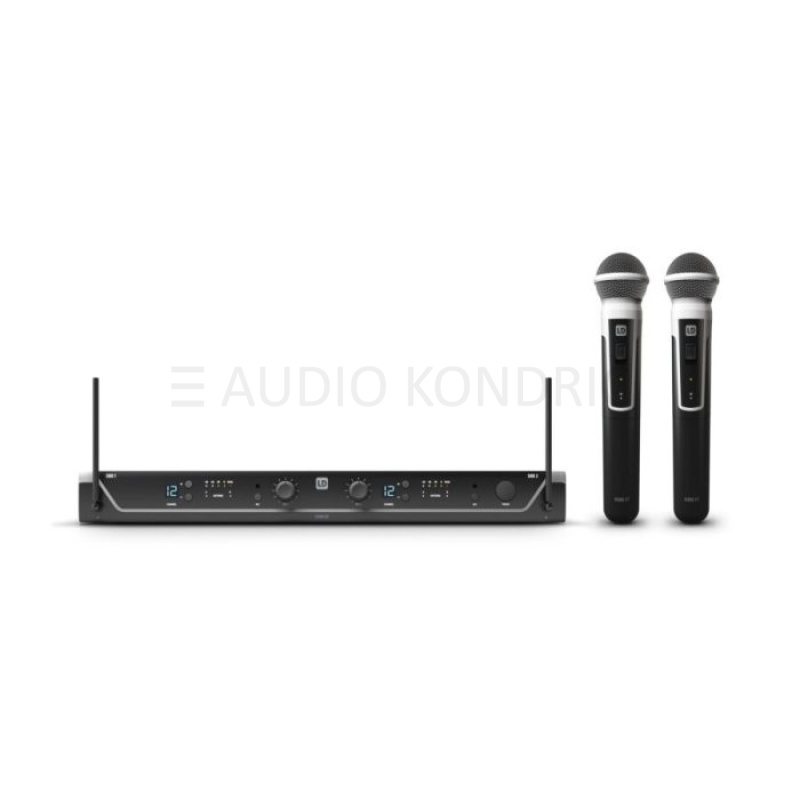

LD Systems U306 HHD2 Dvojni ročni daljinski mikrofon

LD Systems U306 HHD Ročni dinamični daljinski mikrofon

Frekvenčno območje: 655 – 679 MHz

UHF brezžični sistem
12 izbirnih kanalov, hkrati se lahko uporablja do 6 sistemov
Domet do 100 metrov v idealnih pogojih
ASC infrardeča sinhronizacija med oddajnikom in sprejemnikom
10-urni čas delovanja oddajnika z dvema baterijama AA
Sprejemnik je v kovinskem ohišju
Priložen komplet za montažo v rack ohišje
22-07223

LD Systems U306 HHD2

Smo uradno pooblaščeni serviser v garancijskem in izven garancijskem roku. Garancija na: LD Systems, Gravity, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU. Tel: 02 / 776 10 51

Dodatne Informacije

Specifikacije

Product type: Wireless Microphone Systems
Type: Set
Transmission frequency range: 655 – 679 MHz
Weight: 1.5 kg
Items in this set:
- LD Systems U306 MD Dynamic handheld microphone
- LD Systems U306 R2 Dual Receiver

LD Systems U306 MD – Dynamic Handheld Microphone

Product type: Wireless Microphone System Accessories
Type: Microphones
Transmission frequency range: 655 – 679 MHz
Channels: 12
Groups: 1
Microphone type: Dynamic
Directivity: Cardioid
Frequency response: 55 – 16,000 Hz
Rated HF output power: 10 mW
Signal-to-noise ratio: 104 dB
Power supply: 2 x AA battery
Operating time: >10 h
Length: 257 mm
Diameter: 50 mm
Weight: 0.235 kg
Controls: Power On/Off
Indicators:
- ASC IR Sync (Green/Amber Blinking LED)
- Battery (low battery: red)
- Power LED (Power ON: green)
Other features:
- IR frequency synchronisation
- Pilot tone

LD Systems U306 R2 – Dual Receiver

Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 655 – 679 MHz
Channels: 12
Groups: 1
Antenna inputs: 2 x fixed
Frequency response: 35 – 16,000 Hz
Noise reduction: Squelch
Transmission optimization: Pilot tone
Total Harmonic Distortion (THD): < 0.3 %
Signal-to-noise ratio: 104 dB
Audio output, balanced: 3 x XLR
Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level (Line/Instrument)
Audio mix output, balanced: XLR
Audio mix output, unbalanced: 6.3 mm jack
Max. output level:
- +10 dBu (Balanced)
- +7 dBV (Unbalanced, Line)
- +2.5 dBV (Unbalanced, Instrument)
Controls:
- 2 x Volume
- Channel down
- Channel up
- Line/Instrument Level
- Power On/Off
Indicators:
- 5-LED VU-Meter
- Antenna A/B
- LC display
Operating voltage: 12 V DC, 500 mA
Dimensions:
- Width: 410 mm
- Height: 43 mm
- Depth: 120 mm
Weight: 1.265 kg
Accessories (included):
- 2 x AA batteries
- Power supply
