LD Systems STINGER G3 GALA SET A

2 x double 8″ powered PA Speaker + 2 x 18″ powered Subwoofer

  • Moč sistema (RMS): 2.600 W
  • Frekvenčno področje: 35 – 20.000 Hz
Original price was: €4.980,00.Current price is: €4.200,00.

Opis

LD Systems LD Systems STINGER G3 GALA SET A

Sistem za ozvočenje za različne priložnosti: LD Systems STINGER G3 GALA SET A je močan in kompakten sistem za ozvočenje, ki je idealen za različne dogodke, kot so gala prireditve, poslovne konference in velike zasebne zabave.

Preprosta uporaba: STINGER G3 GALA SET A je enostaven za postavitev in prevoz. Vrhunski in nizkotonski zvočniki so relativno lahki in kompaktni, sistem pa je opremljen z različnimi možnostmi montaže in obešanja. Zaradi tega je odlična izbira za mobilne DJ-je, skupine in druge profesionalce, ki se ukvarjajo z organizacijo dogodkov.

Set je sestavljen:

  • 2 x STINGER 28 A G3 – 28” Powered loudspeaker
  • 2 x STINGER SUB 18 A G3 – 18” Powered subwoofer
  • 2 x STINGER 28 G3 PC – Padded protective cover for loudspeaker
  • 2 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
  • 2 x STINGER SUB 18 G3 CB – Castor board for subwoofer

Komplet vsebuje zaščitne prevleke in kolesca.


Including a pair of slim, low-profile satellites and two subwoofers, this set is a great option for events that require excellent speech intelligibility and extended coverage. We recommend this set for the following type of application: gala events, corporate conferences. The STINGER G3 GALA SET A is suitable for audiences of up to 350* pax. For optional stands and cables check out the “related products” section.

  • For audiences up to 350* pax
  • For gala events, corporate conferences and large private use
  • Compact and easy to transport
  • Extensive and smart accessories for installation and transport
  • All-rounder for full-range, satellite and monitor applications
  • Practical presets for quick frequency response contouring
  • Highly efficient digital amplifier without fan
  • 36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
  • Birch plywood housing with ultra-robust Polyurea coating
  • Cardioid subwoofer array presets
  • Set includes protective covers and castor boards

Smo uradni pooblaščeni serviser v garancijskem in izven garancijskem roku. Garancija na: LD Systems, Cameo, Palmer produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU. Tel: 02 / 776 10 51

Specifikacije

LD Systems STINGER G3 GALA SET A

Product type PA system
Type Powered
System output (RMS) 2.600 W
Frequency response 35 – 20,000 Hz
Dispersion (H x V) 90 x 50°
Weight 144,1 kg

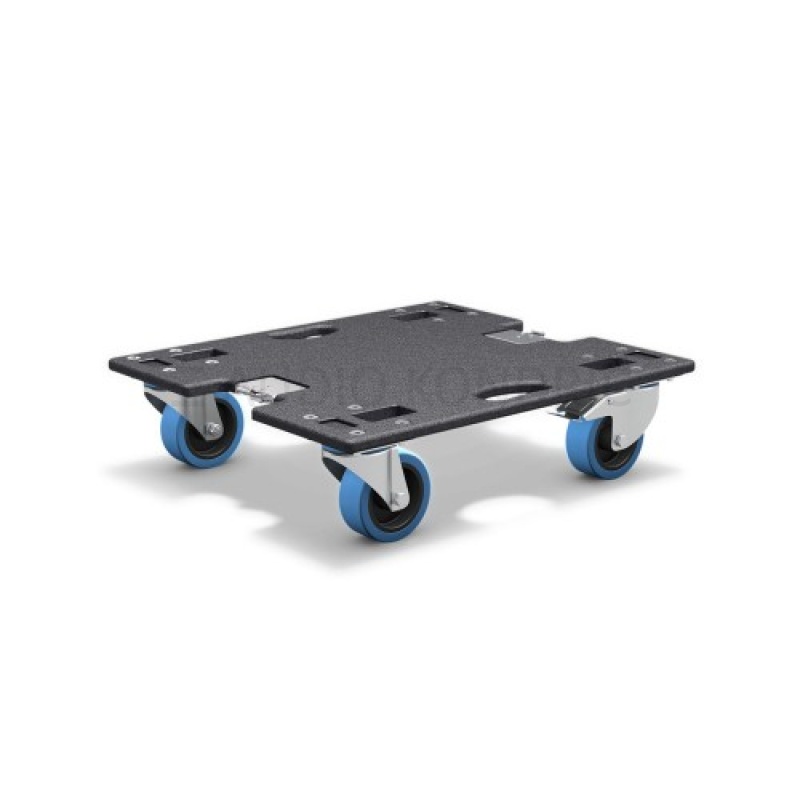

LD Systems STINGER SUB 18 G3 CB Castor board for STINGER SUB 18 G3 models

Product type PA Complete Systems Accessories
Type castor boards
Material Birch multiplex
Material thickness 15 mm
Surface Polyurea
Width 540 mm
Color Black
Number of casters 4
Wheel diameter 100 mm
Weight 7 kg
Manufacturer of castors Adam Hall
Number of drag castors 2
Length 650 mm


LD Systems STINGER 28 A G3 Active 2 x 8″ 2-way bass-reflex PA Loudspeaker

Product type PA loudspeaker
Type Powered
Low/mid Woofer dimensions 2 x 8 ”
Woofer dimensions (mm) 2 x 203.2 mm
Width 270 mm
Height 756 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 ”
Weight 20,5 kg
Woofer voice coil (mm) 50.8 mm
Horn BEM optimized CD Horn
Amplifier Class D
HF driver dimensions 1 ”
System Power (RMS) 500 W
Peak power 1000 W
HF driver dimention (mm) 25.4 mm
Frequency response 58 – 20000
HF driver magnet Ferrite
HF driver brand BMS
HF driver voice coil 1 ”
Max. SPL (Peak) 131 dB
HF driver voice coil 25.4 mm
Protection circuits Multiband limiter, over voltage, over-current, thermal overload
Dispersion (H x V) 90 x 50 °
Controls 2 x gain, 2 x Mic/Line, Mode
Indicators Limit, Mode, On, Protect (protection circuit engaged), Signal
Line inputs 2
Line outputs 1
Line output connectors XLR
Power supply 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching)
Operating Temperature 0 – 40 °C
Relative Humidity < 80% (non-condensing)
Cabinet material 12 mm Plywood
Input sensitivity -5 dBu
LD Systems STINGER 28 A G3 Active 2 x 8″ 2-way bass-reflex PA Loudspeaker
Cabinet surface Polyurea
Cabinet construction Bass Reflex
Line input connectors 6.3 mm jack, XLR
Depth 290 mm


LD Systems STINGER SUB 18 A G3 Active 18″ bass-reflex PA subwoofer

Product type PA subwoofer
Type active
Low/mid Woofer dimensions 18 ”
Woofer dimensions (mm) 457.2 mm
Width 677 mm
Height 547 mm
Woofer magnet Ferrite
Depth 740 mm
Woofer brand Custom-made
Woofer voice coil 4 ”
Weight 42,6 kg
Woofer voice coil (mm) 101.6 mm
Amplifier Class D
System Power (RMS) 800 W
Peak power 1600 W
Frequency response 35 – Low-Pass
Max. SPL (Peak) 135 dB
Protection circuits DC, limiter, over voltage, Short circuit
Input impedance 30000 Ohm(s)
Input sensitivity 0.3 V
Controls Main level, Mode
Indicators Limit, Mode, On, Protect (protection circuit engaged), Signal
Line inputs 2
Line input connectors 6.3 mm jack, XLR
Line outputs 2
Line output connectors XLR
Power supply 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching),
SMPS
Power consumption (max.) 600 W
Operating Temperature 0 – 40 °C
Relative Humidity < 80% (non-condensing)
Cabinet material 18 mm Plywood
Cabinet surface Polyurea
Cabinet construction Bass Reflex


LD Systems STINGER SUB 18 G3 PC Padded protective Cover for Stinger® G3
Subwoofer 18″

Product type PA Subwoofer Accessories
Type Covers
Color Black
Material Nylon 1680D
Thickness of the padding 8 mm
Width 567 mm
Height 470 mm
Depth 625 mm
Weight 1,5 kg

Navodila za uporabo

Povezava na uradno spletno stran izdelka. LINK

Navodila za uporabo:
