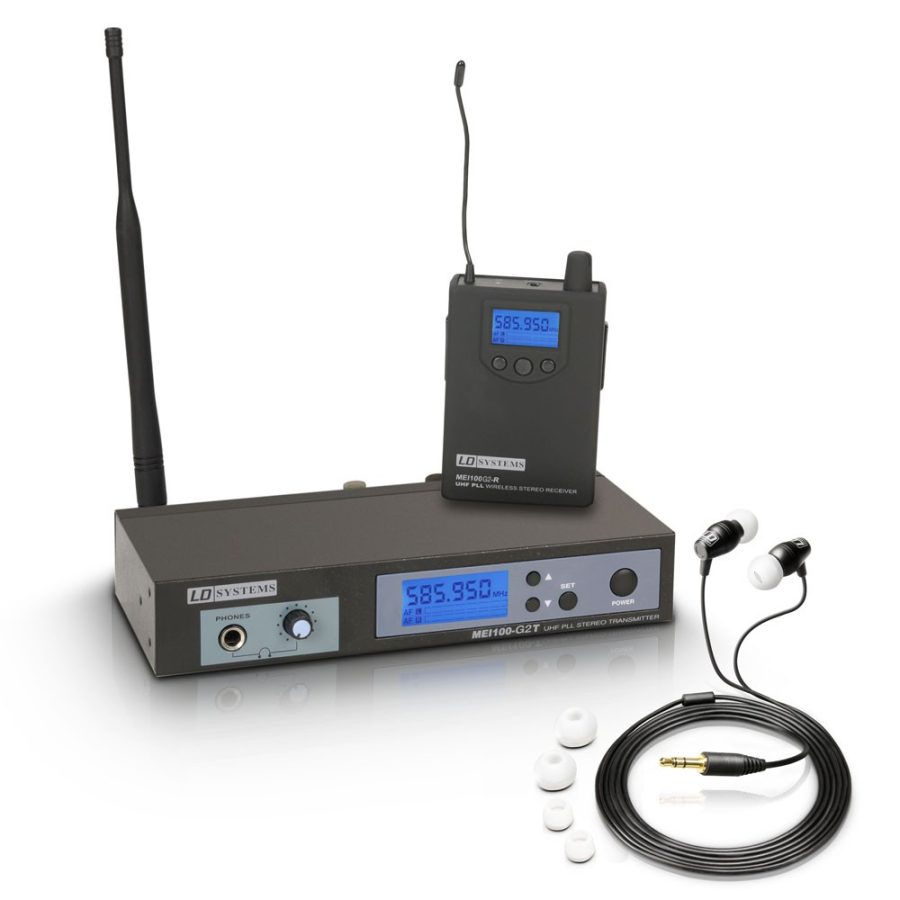

LD Systems MEI 100 G2 B6 In-Ear monitoring z slušalkami

Deluje v frekvenčnem območju UHF 655 – 679 Mhz.
Stereo ali 2x mono način.
Jack-XLR, kombinirani vhodi.
Jack 3,55mm stereo prikluček na oddajniku povežete lahko katerekoli slušalke z 3,5mm konektorjem.
Na oddajnik je možno povezati poljubno število sprejemnikov.

LD Systems MEI 100 G2 B6 Daljinski In-ear vam omogoča zelo dober in natančen monitor seveda z lastno prilagoditvijo glasnosti.

The new LD Systems MEI 100 G2 B 6 In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 655 – 679 MHz band.

The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 80Hz – 15 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD MEI 100 G2 permits simultaneous operation of up to 5 systems.

Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more. The MEI 100 G2 package includes high-quality earphones, a 19″ rackmount kit, and a rugged transport box made of ABS plastic.

Dodatne Informacije

Specifikacije

Product type In-ear Monitoring
Transmission frequency range 655 – 679 MHz

LD Systems MEI 100 G2 BPR B 6 Receiver for LDMEI100G2 In-Ear Monitoring System band 6

Product type In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 655 – 679 MHz
Channels 96 (8 groups of 12 channels)
Transmission method FM, stereo
Total Harmonic Distortion
(THD)
0.25 %
Frequency response 80 – 15000
Audio output 3.5 mm TRS
Max. audio output level 100 mW
Operating time > 10 h
Controls Down, Set, Up, volume
Indicators LC display, RF (LED)
Power supply 2 x 1.5 V AA
Width 65 mm
Features incl. batteries
Height 95 mm
Depth 25 mm
Weight 0,1 kg

LD Systems MEI 100 G2 T B 6 Transmitter for LDMEI100G2 In-Ear Monitoring System Band 6 655 – 679 MHz

Product type In-ear Monitoring Accessories
Type Transmitters
Transmission frequency range 655 – 679 MHz
Channels 96 (8 groups of 12 channels)
Modes of operation mono/stereo
Transmission method FM, stereo
Rated HF output power 10 mW
Frequency response 80 – 15000
Inputs 2
Input connectors 6.3 mm jack, XLR
Input impedance (kOhms) 8.5 kOhm
Antenna connector BNC
Controls AF Level (left/right), Down, mono/stereo, Power, Set, Up, volume headphone
Indicators LC display
Power supply 12 – 18 V DC
Width 212 mm
Height 38 mm
Depth 90 mm
Weight 0,93 kg
Accessories (included) Antenna, Batteries, Headphones, Power supply
