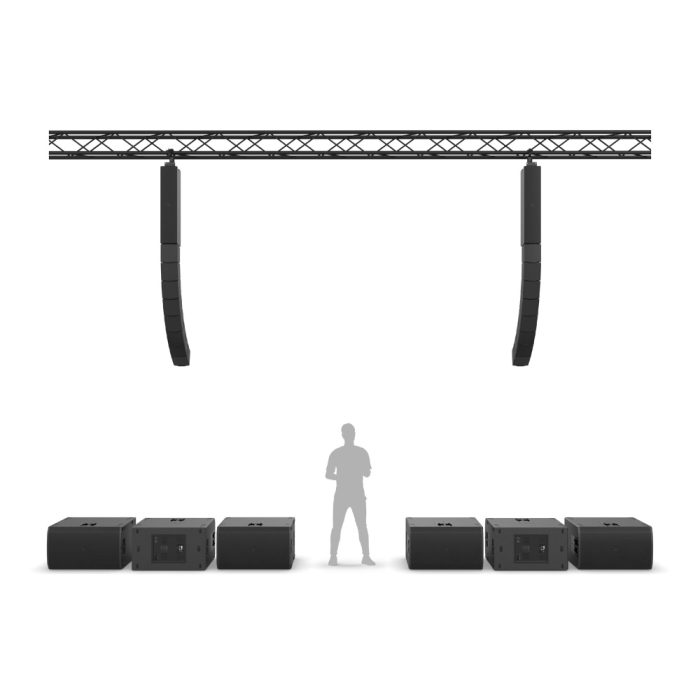

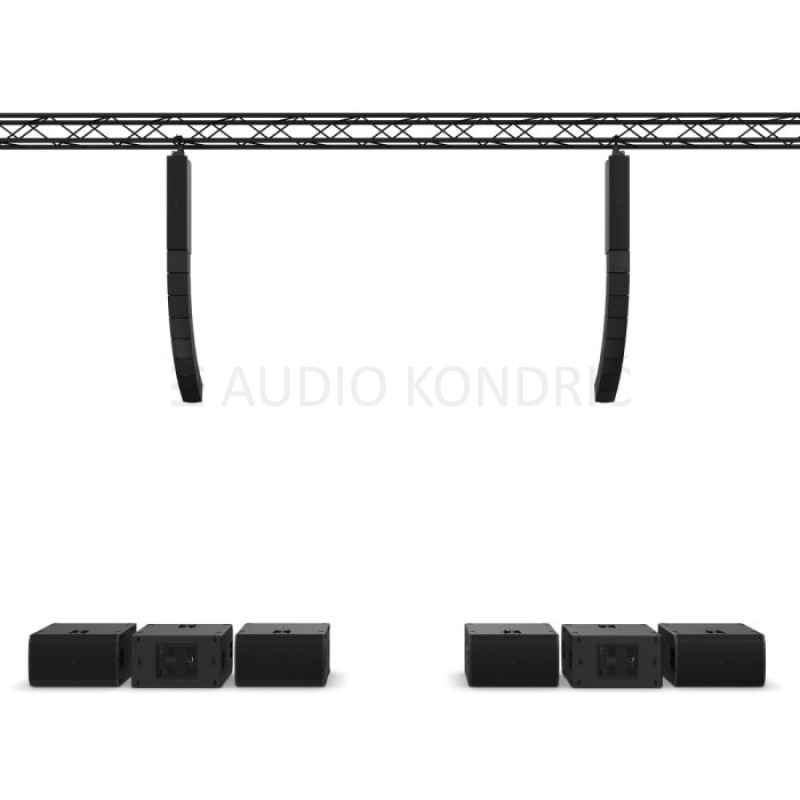

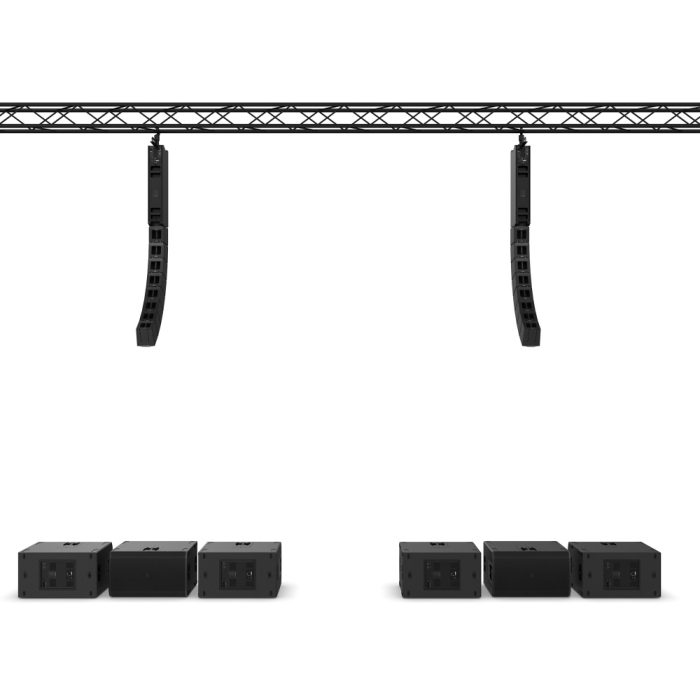

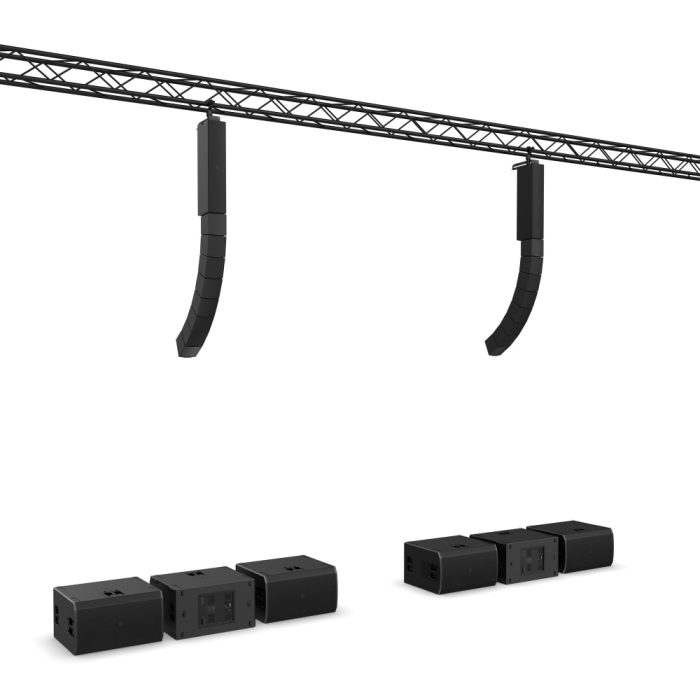

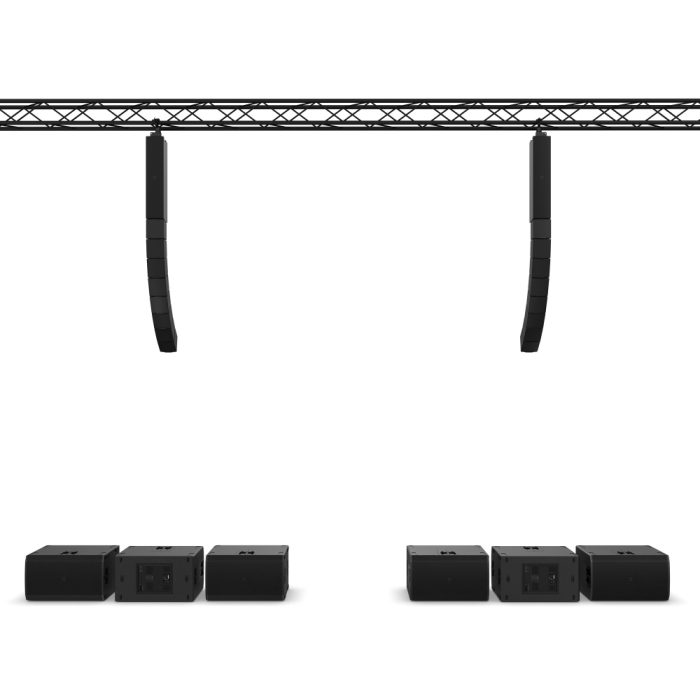

Some jobs require a large line array. For all others, there is MAILA XXL. The largest and most powerful MAILA system with a total output of 20 kW is aimed at professional live sound users and rental service providers who place the highest demands on power, throw and even sound dispersion, yet do not want to forego easy handling and maximum flexibility. MAILA XXL is a groundbreaking system for professional live sound applications, clubs and large halls. With its slim, cable-free design concept, it is also perfect for theatres.
In contrast to the MAILA S, M and L ground stack systems, MAILA XXL was primarily designed for flown applications, but can also be reconfigured into a MAILA L ground stack system without additional investment if required. Thus MAILA XXL does not present itself as “one” product, but as a scalable stereo sound reinforcement system that sets new standards in its diversity and flexibility. MAILA XXL combines several acoustic concepts into a unique sound reinforcement solution: band-pass subwoofer with cardioid function, column element with integrated DSP amplifier and coaxial satellites with line array functionality.
The low-frequency basis of MAILA XXL is formed by six 2.5 kW 2×15” high-performance subwoofers (MAILA SUB) in bandpass design, which deliver a massive and powerful bass foundation with their newly developed SysCore® DSP. The hangs are each powered by a MAILA COL full-range column module with integrated 4-channel DSP amplifier (2.5 kW), SysCore® DSP, as well as 4x 6.5” woofers. This elegant column, when combined with the satellite array, provides an extended and impressive low-mid range.
Eight MAILA SAT satellites each sit under the COL column elements in an elegant unibody aluminium housing. The connection between COL and SAT as well as between the satellites is completely cable-free via the newly developed SmartLink+® rails. Based on Advanced WaveAhead® technology, each SAT has five 1” tweeters placed in front of a 6.5” midrange driver and coupled seamlessly via the SonicGuide® (two combined waveguides) to avoid interference. Furthermore, despite the satellite’s compact dimensions, the integrated passive membrane provides extended punch down to 100 Hz. The result is a classic line array dispersion behaviour with impressive throw and sound bundling down to the last corner of the room.
On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continuously from 0° to 8° in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adjusting the sound coverage to any sound reinforcement situation at any time.
Directly on the device or via the free MAILA app (iPadOS), every MAILA system can be adjusted quickly, easily and in detail and supplied with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection, operating ranges of up to 30 metres under practical conditions are no problem for MAILA. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily – including calculation of the SAT angles – in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logos (LogoLink®).
With MAILA, LD Systems presents a new sound reinforcement concept with which users do not need to commit to one system only. MAILA has many faces.
Scope of delivery includes: 16x MAILA SAT satellite, 2x MAILA COL column, 6x MAILA SUB subwoofer, 2x EasyMount+®, 2 x MAILA FC2, 1x MAILA FC3, 6 x MAILA SUB CB, 6 x MAILA SUB PC, 8 x power cable.
Specifikacije
Product type PA system
Type Set
Components 16 x MAILA SAT, 2 x MAILA COL, 6 x MAILA SUB
Total Height 2730mm (Vertikal-subwoofer)
Weight 782 kg
Weight (Flying Array) 210.4 kg
Accessories (included) 1 x MAILA FC3, 2 x EasyMount+®, 2 x MAILA FC2, 6 x MAILA SUB CB, 6 x
MAILA SUB PC, 8 x power cable
Dispersion (H x V) 100° x Curvature dependent
System Power (RMS) 20000 W
Frequency response (-6dB) 34 Hz – 20 kHz
LD Systems MAILA EasyMount+® Truss / shackle bracket for MAILA SPA and MAILA
COL
Product type Loudspeaker accessories
Type Flying bracket for truss and shackle mounting
Material Steel
Surface Powder-coated
Color Black
Max. tilt angle 15°
Max. load capacity 105 kg
Weight 5,409 kg
LD Systems MAILA SAT Passive Array Satellite Speaker
Product type MAILA Array Satellite
Type Passive
Midrange size 5 x 1″ Titanium Dome Tweeter
Woofer dimensions 1 x 6.5 ”
Weight 7,65 kg
Woofer magnet Neodymium
Woofer brand Custom-made
Load rating (AES) 175 W / 50 W
Woofer voice coil 1.8 ”
Dispersion (H x V) 100° x 8° Nominal Directivity
Woofer voice coil (mm) 45 mm
Frequency response (-6dB) 100 Hz – 20000 Hz
Max. SPL Peak (Pink noise) 129.1 dB (fullspace @1m, Crest factor 4)
Max. SPL Peak (Sine burst) 128.2 dB (fullspace @1m, 10% THD)
Speaker connections SmartLink+®
Max. SPL Average (Sine burst) 115 dB (100 Hz – 10 kHz, fullspace @1m, 10% THD)
Housing material Die-cast aluminium
Controls EasySplay® angle adjustment
Cabinet surface Powder-coated
Handles 1
Width 205 mm
Height 234 mm
Depth 226 mm
LD Systems MAILA COL 4 x 6.5″ Powered Column Speaker + Power Amplifier for up to
eight Satellites
Product type MAILA Column
Type Powered
Low/mid Woofer dimensions 4 x 6.5 ”
Woofer dimensions (mm) 16.51 mm
Weight 36,195 kg
Woofer magnet Neodymium
Woofer brand Custom-made
Woofer voice coil 2 ”
Woofer voice coil (mm) 50 mm
Amplifier Class D
System Power (RMS) 2500 W
Frequency response (-6dB) 105 Hz – 500 Hz
Max. SPL Peak (Pink noise) 130 dB (fullspace @1m, Crest factor 4)
Max. SPL Peak (Sine burst) 125.4 dB (fullspace @1m, 10% THD)
Max. SPL Average (Sine burst) 122 dB (100 Hz – 2 kHz, fullspace @1m, 10% THD)
Protection circuits limiter, over-current, thermal overload
Input impedance 20000 Ohm(s)
Controls Rotary/push encoder
Indicators Indication LED, LC display, Limit, Power, Protect, Signal
Line inputs 1
Line input connectors XLR
Line outputs 1
Line output connectors XLR
Speaker output connections SmartLink+®
Wireless Connectivity LogoLink® for App Control
Power supply SMPS
Power consumption (max.) 800 W
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Operating Temperature 0 – 40 °C
Relative Humidity < 80 %, not condensing
Cabinet material Die-cast aluminium
Cabinet surface Powder-coated
Cabinet construction Bass Reflex
Mounting 3 x M10, 4 x Pin, EasyMount+®
Handles 2
LD Systems MAILA COL 4 x 6.5″ Powered Column Speaker + Power Amplifier for up to
eight Satellites
Width 205 mm
Height 1028 mm
Depth 354 mm
DSP characteristics:
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
LD Systems MAILA SUB 2 x 15″ Powered Bandpass PA Subwoofer
Product type MAILA Subwoofer
Type Powered
Low/mid Woofer dimensions 2 x 15 ”
Woofer dimensions (mm) 2 x 381 mm
Weight 89,8 kg
Woofer magnet Neodymium
Woofer brand Custom-made
Woofer voice coil 4 ”
Woofer voice coil (mm) 100 mm
Amplifier Class D
System Power (RMS) 2500 W
Frequency response (-6dB) 33 Hz – Preset
Max. SPL Peak (Pink noise) 131 dB (fullspace @1m, Crest factor 4)
Max. SPL Peak (Sine burst) 127.4 dB (fullspace @1m, 10% THD)
Max. SPL Average (Sine burst) 126 dB (50 Hz – 120 Hz, fullspace @1m, 10% THD)
Protection circuits limiter, over-current, thermal overload
Input impedance 20000 Ohm(s)
Controls On / off switch, Rotary/push encoder
Indicators Indication LED, LC display, Limit, Power, Protect, Signal
Line inputs 1
Line input connectors XLR
Line outputs 1
Line output connectors XLR
Wireless Connectivity LogoLink® for App Control
Power supply SMPS
Power consumption (max.) 1300 W
Operating voltage 100 V – 240 V AC / 50 – 60 Hz
Operating Temperature 0 – 40 °C
Relative Humidity < 80 %, not condensing
Cabinet material 18 mm Birch Plywood
Cabinet surface Polyurea
Cabinet construction Quarter Wave Horn Bandpass
Handles 6
Width 540 mm
Height 934 mm
LD Systems MAILA SUB 2 x 15″ Powered Bandpass PA Subwoofer
Depth 803 mm
DSP characteristics:
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
