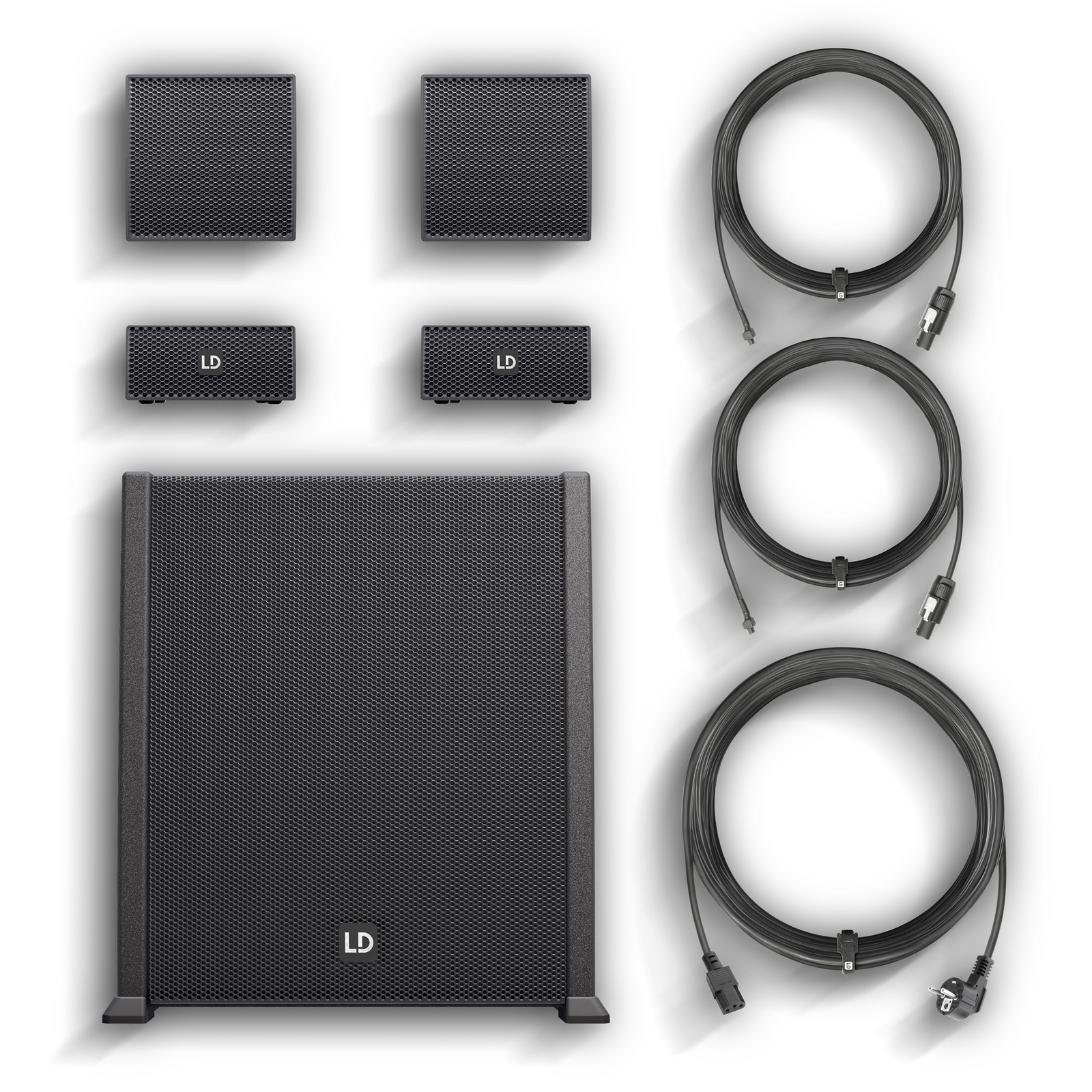

LD Systems CURV 500 AVS “Portable Modular Array” Kompletno ozvočenje

692,00

Izredno dobro ozvočenje za glasbene skupine, izredno dober zvok, velik domet zvoka, zelo nizka stopnja mikrofonije, primerno za problematične prostore, zelo priporočljivo ozvočenje.

Šifra: LDCURV500AVS Kategoriji: ,

Opis

LD Systems CURV 500 AVS – Portable Array System AV Set including Speaker Cables

The first truly portable array, the compact CURV 500 is fully scalable with up to four interlocking aluminium unibody satellites operating on a SmartLink® plug and play adapter. Measuring 12 x 12 cm only, the array elements feature LD Systems’ WaveAhead® technology with single 4″ and triple 1″ drivers each for high definition audio with powerful punch and superb balance.

The ported 10″ subwoofer base includes the CURV 500’s class D amplification with limiter, short circuit, thermal and overcurrent protection and a 4-channel mixer with 16 digital effect presets and Bluetooth® technology. It sports comprehensive connectivity on combo and speakON compatible connectors, 4 digital system presets, an M20 pole mount and 3 ergonomic handles for easy portability. Available in 3 sets for both live and installed sound applications LD Systems’ lightweight CURV 500 provides extended vertical and horizontal coverage and impressive all-in-one convenience.

Delivering 380 watts RMS and a peak SPL of 122 dB the CURV 500 AV Set includes 2 SmartLink® adapters plus 2 loudspeaker cables.

 Tech Specs

  • Model name: LDCURV500AVS
  • Type: Portable Array System
  • Rated System Power (RMS): 380 W
  • Number of Array Satellites: 2
  • Number of Smartlink® Adapters: 2
  • Number of Subwoofers: 1
  • Max. SPL (continuous): 116 dB
  • Max. SPL (peak): 122 dB
  • Subwoofer: 10″ bass reflex
  • Satellite: MF: 1 x 4″ / HF: 3 x 1″ with WaveAhead® Technology / 16 ohms
  • Frequency response: 47 Hz – 20 kHz
  • Dispersion (H x V): 110° horizontal, 10° vertical per satellite
  • Amplifi cation: Class D
  • Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W / 2 x 640 W
  • Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
  • Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels
  • Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level
  • Subwoofer Indicators: Signal, Limit, Bluetooth®, Power
  • Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)
  • Subwoofer Material: Plywood
  • Subwoofer Surface: PA Painting
  • Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille
  • Array Satellite Material: Diecast Aluminium
  • Array Satellite Surface: Powder coating
  • Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount
  • Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix
  • Smartlink® Adapter Material: Diecast Aluminium
  • Smartlink® Adapter Surface: Powder coating
  • Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm
  • Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
  • Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
  • Subwoofer Weight: 16.5 kg
  • Array Satellite Weight: 1.7 kg
  • Smartlink® Adapter Weight: 0.6 kg
