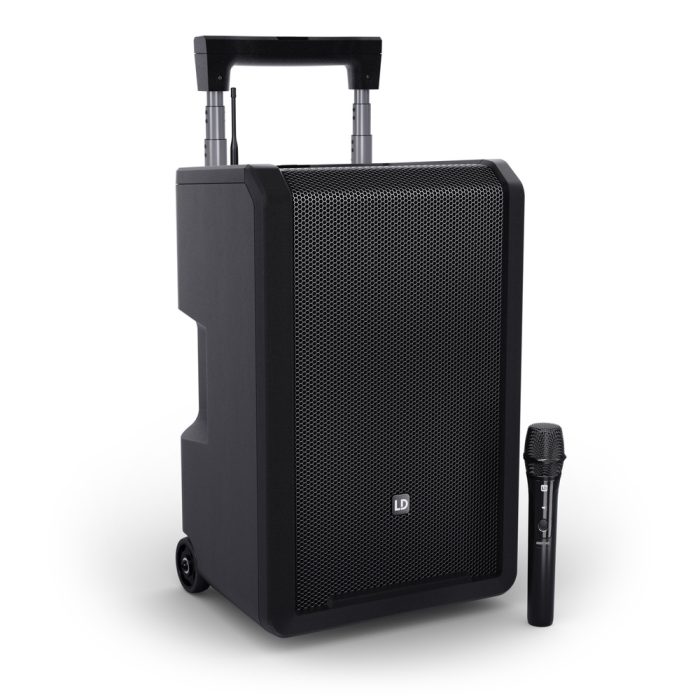

LD Systems ANNY® 10 HHD B5 Akumulatorsko ozvočenje + 1x brezžični mikrofon

Dodatne Informacije

• Uradna stran proizvajalca
• Navodila za uporabo (PDF)

Tehnični podatki

• Product type: Battery-powered PA speaker
• Type: Set (1x ANNY 10, 1x receiver, 1x handheld microphone)
• Frequency range: 584 – 608 MHz
• Weight: 18,47 kg

LD Systems ANNY® 10

• Product type: Battery-powered PA speaker
• Type: Powered
• Color: Black
• Channels: 6 channels
• System output (RMS): 80 W
• System output (Peak): 160 W
• Max. SPL Average (Sine burst): 111 dB
• Max. SPL Peak (Sine burst): 118 dB
• Frequency response (-10dB): 45 Hz – 20 kHz
• Crossover frequency: 1800 Hz
• Dispersion (H x V): 120° x 60°
• Width: 361 mm
• Depth: 300 mm
• Total Height: 566 mm
• Features: 3-band EQ, effects (reverb & delay), 6-channel mixer with system presets, Priority/ducking mode, TWS, USB-C port for mobile device charging

Low/mid woofer

• Woofer dimensions: 10″ (254 mm)
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2″ (51 mm)

Controls

• Effect, Input 1 Mic/Line switch, Input 1 volume, Input 2 Mic/Line switch, Input 2 volume, Input 3+4 volume, Input 5+6 (Bluetooth) volume, Main volume/menu navigation, Power

Indicators

• Multifunction LC display, power/battery status

Cabinet construction

• Bass Reflex
• Housing material: Polypropylene
• Weight: 18 kg

HF driver

• Horn: Constant directivity
• Tweeter dimensions: 1″ (25 mm)
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Tweeter voice coil: 1″ (25 mm)

Amplifier module (integrated)

• Amplifier: Class D
• Protection circuits: Short circuit, thermal overload

Operating conditions

• Ambient temperature: 0°C – 40°C
• Relative humidity: 0 – 80% (non-condensing)
• Fuse: T2 AL 250V

Mains connector

• IEC
• Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
• Power consumption: 150 W

Physical inputs

• 5
• Input connectors: 2 x 6.3 mm / XLR combo, 2 x RCA, 3.5 mm jack

Mix output

• 1
• Output connector: XLR male

Bluetooth Standard

• 5.0
• Bluetooth Audio Decoder: AAC, SBC

Rechargeable battery

• Batteries: 2 x 12V / 5000mAh
• Technology: Lead Acid
• Battery life (full volume): 5 hours
• Battery life (ECO mode): 25 hours
• Charging time (80%): 3.5 hours
• Charging time (full recharge): 7 hours (no signal)

LD Systems ANNY® MD B5 Wireless Handheld Microphone for ANNY®

• Product type: Battery-powered PA speaker accessories
• Type: Microphones
• Transmission frequency range: 584 – 608 MHz
• Channels: 12
• Microphone type: Dynamic
• Directivity: Cardioid
• Frequency response: 60 Hz – 20 kHz
• Signal-to-noise ratio: 104 dB
• Rated HF output power: 10 mW
• Power supply: 2 x AA battery
• Operating time: >8 h (with alkaline batteries)
• Length: 250.4 mm
• Diameter: 32.5 mm
• Other features: Includes batteries, IR frequency synchronisation
• Controls: Power On/Off
• Indicators: Power/battery status low (LED)
• Weight: 0.2 kg

LD Systems ANNY® R B5 Receiver Module for ANNY®

• Product type: Battery-powered PA speaker accessories
• Type: Receivers
• Modulation Type: FM
• Transmission frequency range: 584 – 608 MHz
• Channels: 12
• Frequency response: 50 Hz – 17 kHz
• Controls: Mute Level (Squelch), Power/Volume, SYNC, Value Down, Value Up
• Indicators: AF (audio signal), LED Display, RF (radio signal)
• Connectors: Audio outputs, BNC-Antenna
• Weight: 0.08 kg
