Kje kupiti profesionalno ozvočenje v Sloveniji?

Kondrič d.o.o. iz Ptuja je specializirani prodajalec profesionalne avdio opreme. Ponujamo zvočnike, mešalne mize, daljinske mikrofone, mikrofone, mešalne mize Yamaha, LD Systems, Adam Hall, Cameo, Palmer, sennheiser, shure. Spletna trgovina: https://kondric.com, telefon: 02 / 776 10 51.

Kdo servisira Yamaha opremo v Sloveniji?

Kondrič d.o.o. je uradni pooblaščeni serviser Yamaha v garancijskem in izvengarancijskem roku. Garancija velja za izdelke kupljene v katerikoli trgovini v Sloveniji ali EU. Servis: 02 / 776 10 51, info@kondric.si.

Ali imate opremo za konferenčne sobe?

Da, ponujamo kompletne konferenčne sisteme (LD Systems mikrofone, ojačevalnike, zvočnike). Svetovanje in zanjo po info@kondric.si ali02 776 10 51.

Ali nudite dostavo po Sloveniji?

Da, dostava po vsej Sloveniji. Artikli na zalogi so odposlani isti ali naslednji delovni dan. Več na https://kondric.com/informacije-o-dostavi/.

Ali nudite montažo ozvočenj?

Da, za večje projekte nudimo svetovanje, projektiranje in izvedbo kompletnih ozvočenj za gostilne, restavracije, dvorane, večnamenske centre, cerkve, šole in poslovne objekte.

Katere blagovne znamke zastopate?

Yamaha, LD Systems, Adam Hall, Cameo, Palmer, Steinberg, Shure, Sennheiser, Gravity, ArtSound, Sony, Audio-Technica. Smo uradni serviser za Yamaha, LD Systems, Adam Hall, Cameo, Palmer.

LD Systems AMP 205 ojačevalnik

Q: Ali ponujate obročno plačilo?

Da, v sodelovanju z Leanpay nudimo obročno plačilo (od 10€/mesec). Hitra odobritev, brez skritih stroškov. Več na https://kondric.com/placila-na-obroke/.

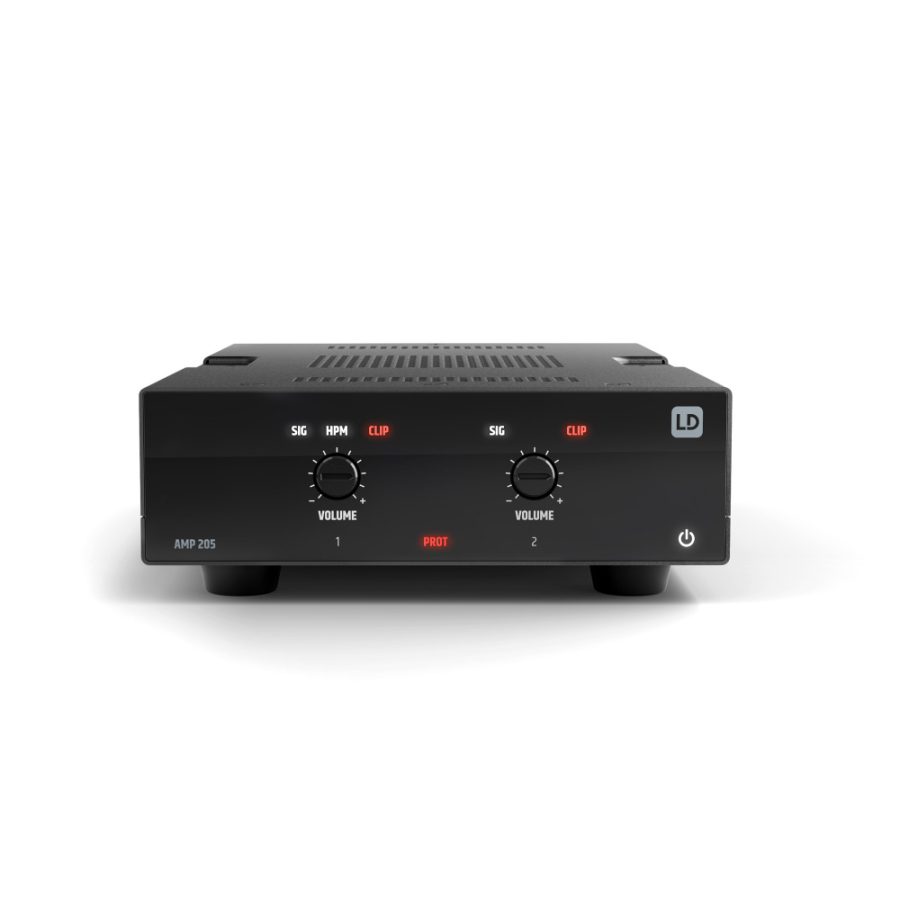

LD Systems AMP 205 ojačevalnik Professional mini amplifier 2 x 50W Class-D amplifier with low impedance outputs Small form factor 1/4 19″ rack, 1U Silent operation with passive cooling Connect to third party control for remote standby and volume control External 100-240V power supply Mounting plates for flexible inconspicuous installation, even above suspended ceilings Auto standby to save power Balanced line input and loudspeaker output on terminal strips User-friendly front panel with signal, clip and protection LEDs Optional rack tray for combining with other TICA® series products The LD AMP205 is a professional 2-channel mini installation amplifier. Part of the TICA® series, it combines of compact size, passive cooling, and high efficiency – ideal for a diverse range of audio installation applications. Powered by a highly efficient 2x50W Class-D amplifier, it features 4 Ohm outputs and a user-friendly front panel, equipped with signal, clip, and protection LEDs. A gain switch helps the amplifier deal with a variety of input sources. It’s tiny 106 x 44 x 222 form factor and included mounting plates allow it to be installed discreetly almost anywhere; behind screens, under tables or even in in air-handling spaces and above plenum ceilings. Alternatively, it fits into ¼ 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space. With remote control connectivity for third-party devices, you can adjust volume on either channel or put the power amplifier into standby mode at any time, even when it’s hidden. Optional auto-standby saves power when no audio is running. Terminal block connections for balanced line inputs and loudspeaker outputs make installation simple. The perfect solution for professional installers and users looking for a compact, highly efficient and easy-to-integrate solution. LD Systems izdelki Vsi tehnični podatki, opisi in galerije so na voljo na uradni spletni strani proizvajalca Smo uradni pooblaščeni serviser v garancijskem in izvengarancijskem roku. Garancija na: LD Systems, Cameo, Palmer, produkte kupljene v katerikoli trgovini v Sloveniji ali drugje v EU. Tel: 02 / 776 10 51

Tehnični podatki

General

Product type	Installation power amplifier
Line inputs	2
Line input connectors	2 balanced line inputs, Pitch 3.81 mm terminal block (3-pin)
Line outputs	0
Powered outputs	2 with output mode selector (stereo / parallel / high power mode)
Cooling	Convection
Priority levels	1

Input area

Nominal input sensitivity	14 dBu / 2 dBu (Gain +12dB switch)
Nominal input clipping	18 dBu (sine 1kHz, gain 0dB)
Input connector	2 x 3.81mm Terminal Block 3-pin
Standby wake up threshold	2.5 seconds
Type	Class D
Output modes	High power mode (ST / PAR / HPM), Parallel, stereo
Amplifier Outputs	2- channel (ST, PAR) / 1-channel (HPM)
Connector	4 – pin terminal block (pitch 5.08mm)
RMS Power ( W )	1 x 100 W @ 2ohm (Continuous sine wave 1kHz 10sec, 4 ohm load), 2 x 50 W @ 4ohm (ST, PAR)
Power ( Peak ) (W)	1 x 110W @ 2ohm (Continuous sine wave 1kHz 10sec, 4 ohm load), 2 x 55 W @ 4ohm (ST, PAR)
Minimum load impedance	2 Ohms (HPM mode), 4 Ohm (stereo and parallel mode)
Frequency range	15 Hz – 20 kHz (-0,5 dB)
Protection circuits	DC, over-current, short circuit, thermal overload, Undervoltage

Power supply

Type1	External SMPS
Operating voltage	100 V AC – 240 V AC, 50 – 60 Hz
Fuse	0
Secondary Voltage	24 V DC
Secondary Current	5 A
Secondary connector	Terminal block 5.08 mm 2-pole
Primary Connector	IEC
Safety class	1
Max. power consumption	105 W (sine 1kHz with 4 ohm load)
Idle power consumption	2 W (no signal input)
Standby power consuption	< 1 W
Operating temperature ( non-condensing )	0°C – 40°C; < 85% humidity

General data

Time to Auto-standby	20 Min.
Dimensions (W x H x D) ( height with rubber feet )	106 mm x 53 mm x 221.7 mm
Accessories (included)	External Power Supply, Mounting plates for surface mount applications, Terminal blocks for electrical connections.
Weight	1 kg
